APR0.5

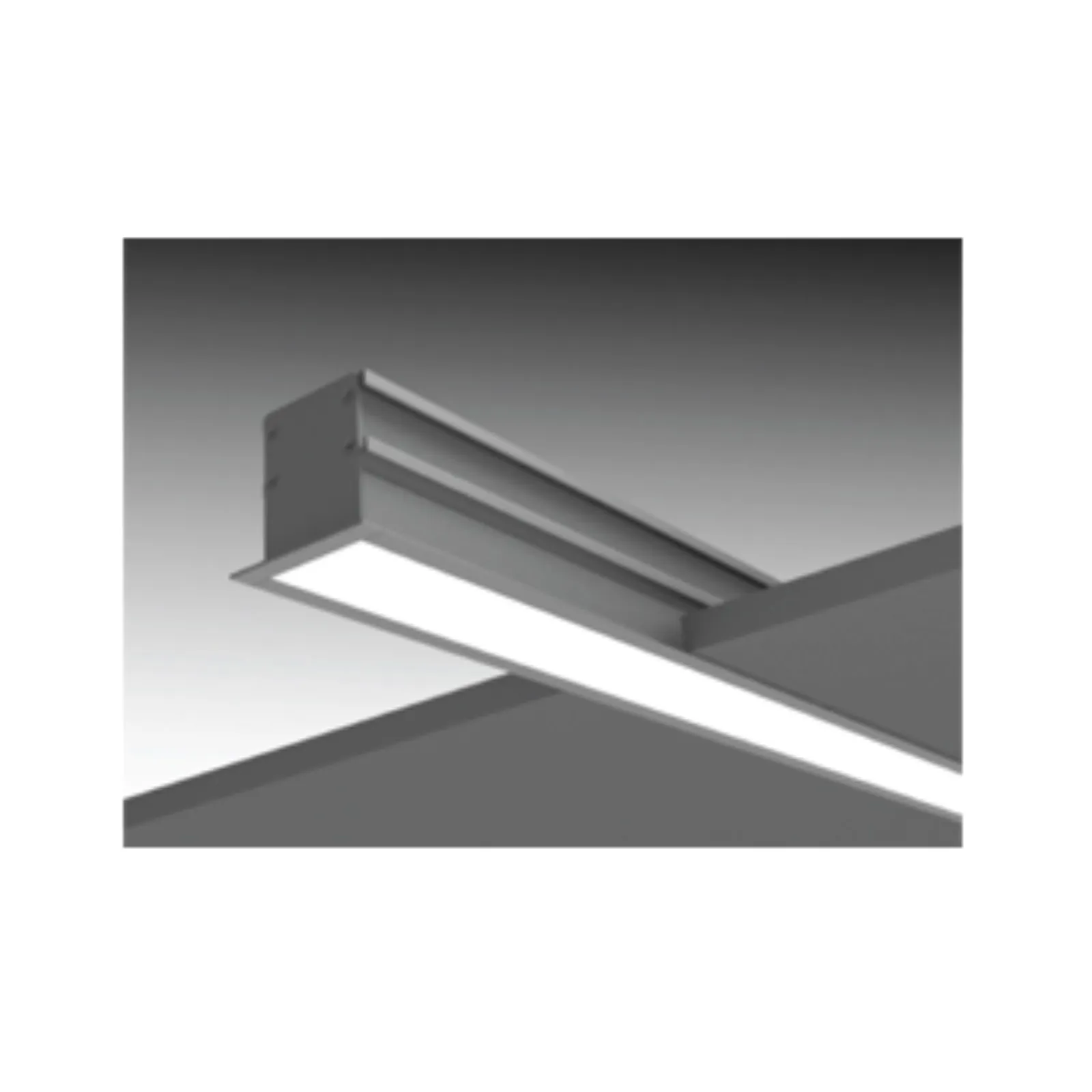

PIXL Aperture 0.5 is recessed architectural luminaire with housing in100% recyclable, extruded architectural grade T6061 aluminum. It is equipped with high power LED light source and optical lens with a wide range of color temperature which provide superior color consistency and high CRI. This IP20 rated luminaire is with standard opal white or microprismatic lens diffuser.

Rated Power

25 W/mtr

Led Color

2700/3000/3500/4000/RGBW

Cri

80,90

Beam Angle

120°

Ip Rating

IP20

Mounting

CEILING RECESSED

Dimensions

64x64 mm

Body Finish

Aluminum natural, Black powder coat, White powder coat, Bronze powder coat

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI 1-10V DMX

Notes

AVAILABLE LENGTH : 500mm; 1000mm; 1200mm; custom length

Dimming

NON-DIMMABLE,DALI,1-10V,DMX

Lamp Life

50,000 Hrs

Light Source

CREE/SAMSUNG

Body Material

100% RECYCLABLE, EXTRUDED ARCHITECTURAL GRADE T6061 ALUMINIUM
