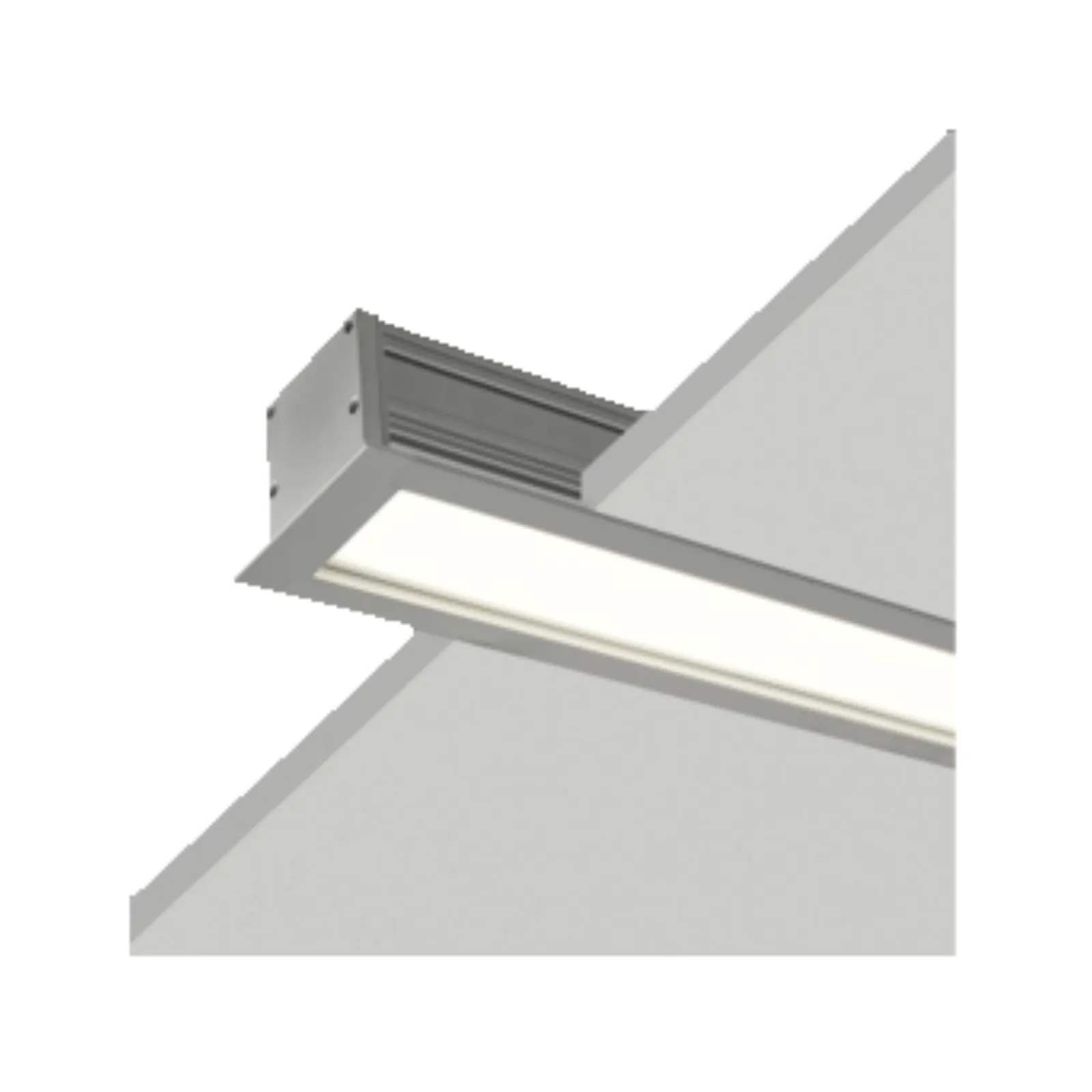

APR2.5, APR2.5T & APR2.5TF

PIXL Aperture 2.5 is a waterproof recessed canopy light made of 100% recyclable, extruded architectural grade T6061 aluminum. It is equipped with high power LED light source and optical lens with a wide range of color temperature which provide superior color consistency and high CRI. This linear LED luminaire is designed to produce a uniform distribution of diffused light and is suitable for ceiling, wall and floor.

Rated Power

24.3 / 36 / 62 / 63W/Mtr

Delivered Lumen

63lm/W (Standard) 62lm/W (Hi)

Led Color

2700/3000/3500/4000K

Cri

80, 90

Beam Angle

120°

Ip Rating

IP67

Mounting

Recessed (trimless), recessed (with trim), Recessed (with Trim) - for mounting in Floor

Dimensions

63x91mm(APR2.5), 93x77mm(APR2.5T), 93x125mm(APR2.5T)

Body Finish

Aluminum natural, Black powder coat, White powder coat

Supply Voltage

240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI 0/1-10V DMX

Notes

AVAILABLE LENGTH : 500mm 1000mm 1500mm

Dimming

NON-DIMMABLE,DALI,0/1-10V,DMX

Lamp Life

50,000 Hrs

Lens Options

Standard lens(regressed position)-standard for ceiling or wall Hi impact lens(flush position)- standard for floor fixture

Light Source

CREE / SAMSUNG

Body Material

100% RECYCLABLE, EXTRUDED ARCHITECTURAL GRADE T6061 ALUMINIUM
