APR50-SS

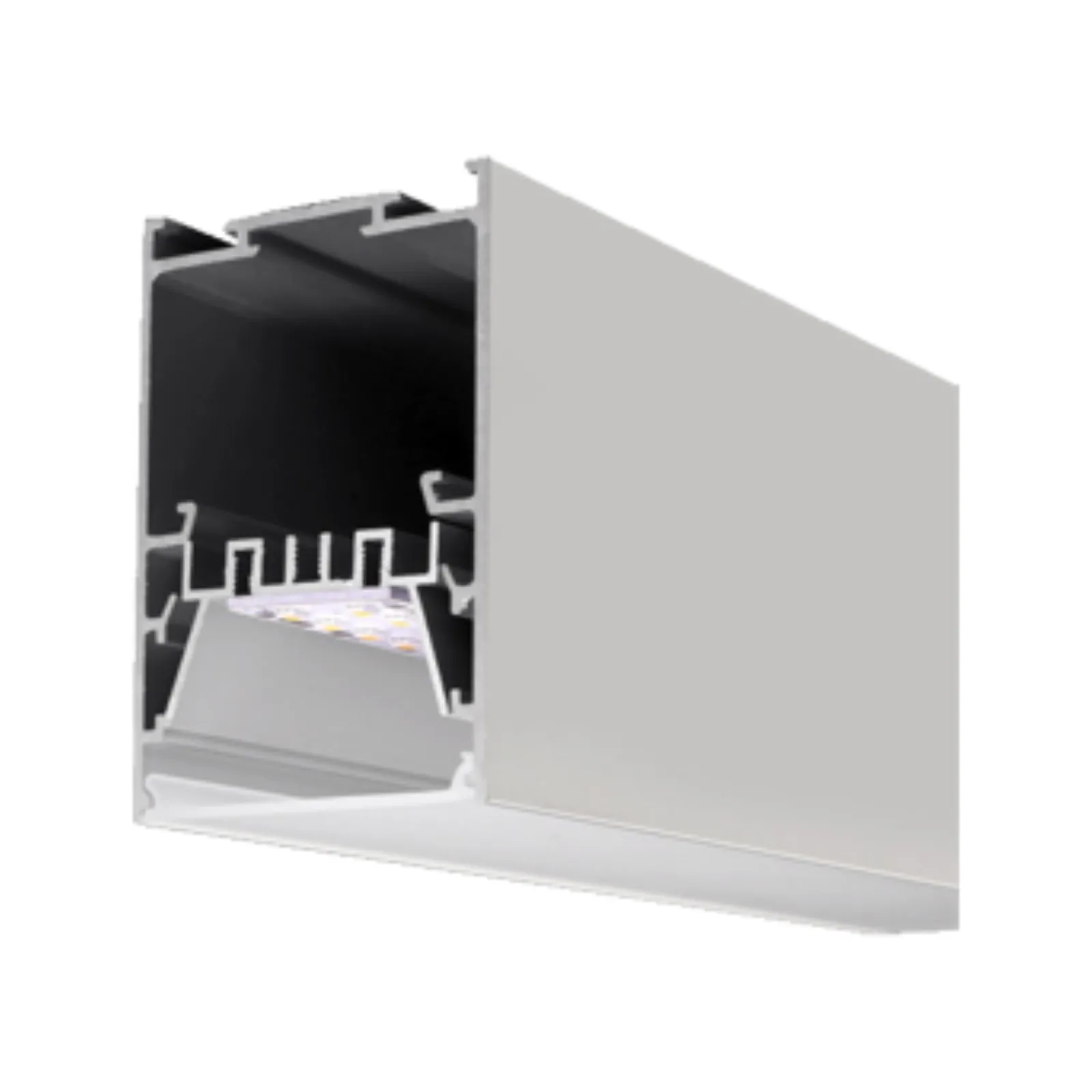

PIXL Aperture 50 is a suspended or surface mounting light made of extruded architectural grade T6063 aluminum. It is equipped with high power LED light source and optical lens with a wide range of color temperature which provide superior color consistency and high CRI. This linear LED luminaire is designed to produce a uniform distribution of diffused light and is suitable for ceiling and wall .

Rated Power

18W/mtr, 24W/mtr, 39W/mtr

Led Color

3000/4000/6500K

Cri

80+

Beam Angle

120°

Ip Rating

IP20

Mounting

SUSPENDED / SURFACE MOUNTED

Dimensions

50(W)x75(H) mm

Body Finish

SILVER, WHITE, BLACK

Supply Voltage

24-32V DC PCB

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; 1-10V; DALI

Notes

AVAILABLE LENGTH : 1200mm; Custom

Dimming

NON-DIMMABLE; 1-10V; DALI

Lamp Life

50,000 Hrs

Lens Options

PMMA Frosted; PMMA Black; Drop diffuser; Prismatic diffuser; Low UGR diffuser; Aluminum diffuser

Light Source

TRIDONIC

Source Lumen

150lm/W

Body Material

EXTRUDED ALUMINUM
