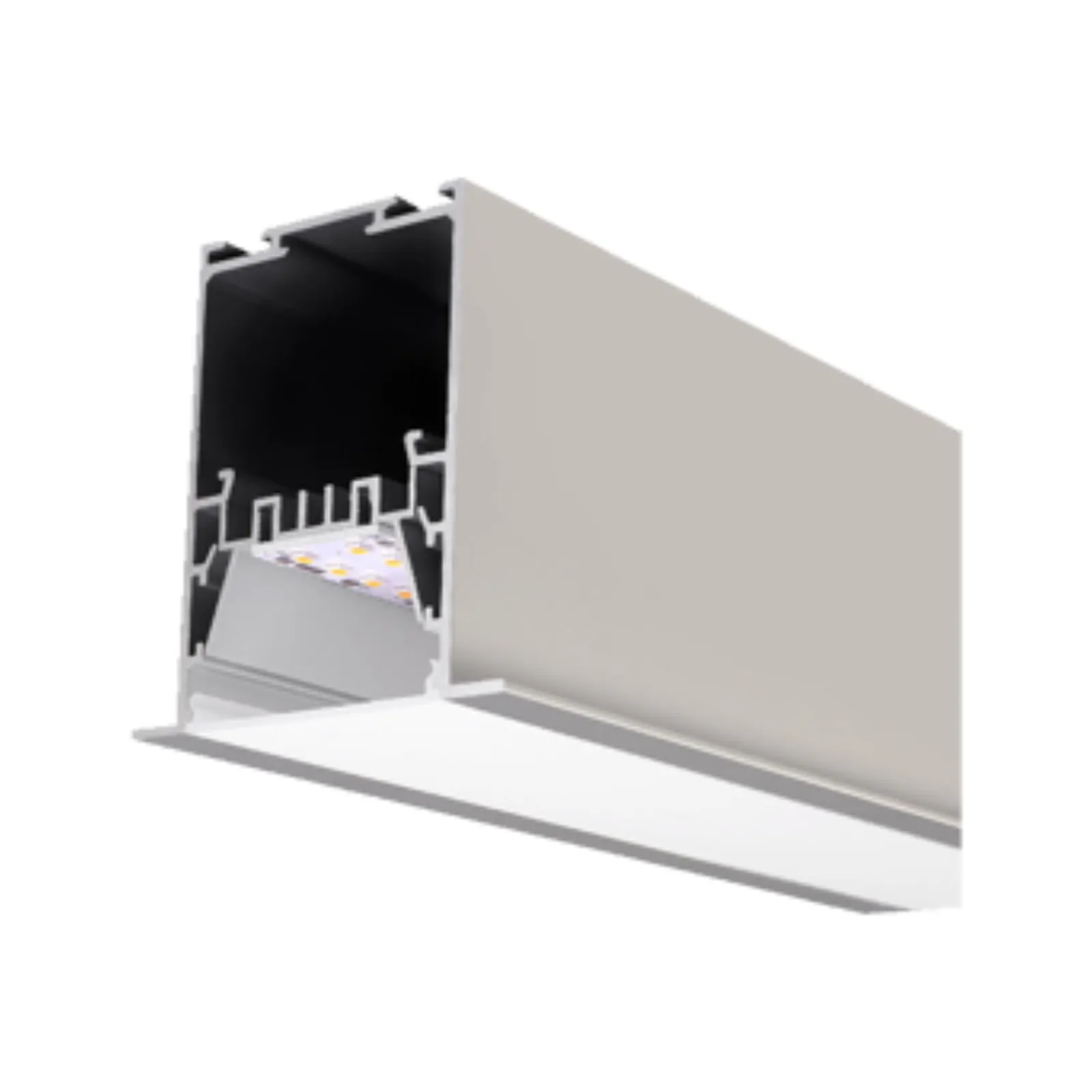

APR50-TR

PIXL Aperture 50 is a ceiling , wall recessed mounting light made of extruded architectural grade T6063 aluminum. It is equipped with high power LED light source and optical lens with a wide range of color temperature which provide superior color consistency and high CRI. This linear LED luminaire is designed to produce a uniform distribution of diffused light and is suitable for ceiling and wall .

Rated Power

18W/mtr, 24W/mtr, 39W/mtr

Delivered Lumen

150 lm/W

Led Color

3000/4000/6500K

Cri

80+

Beam Angle

120°

Ip Rating

IP20

Mounting

CEILING RECESSED

Dimensions

68.8(W)x75(H)mm

Body Finish

SILVER, WHITE, BLACK

Supply Voltage

24-32V DC PCB

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; 1-10V; DALI

Notes

AVAILABLE LENGTH : 1200mm; Custom

Dimming

NON-DIMMABLE; 1-10V; DALI

Lamp Life

50,000 Hrs

Lens Options

PMMA Frosted; PMMA Black

Light Source

TRIDONIC

Body Material

EXTRUDED ALUMINUM
