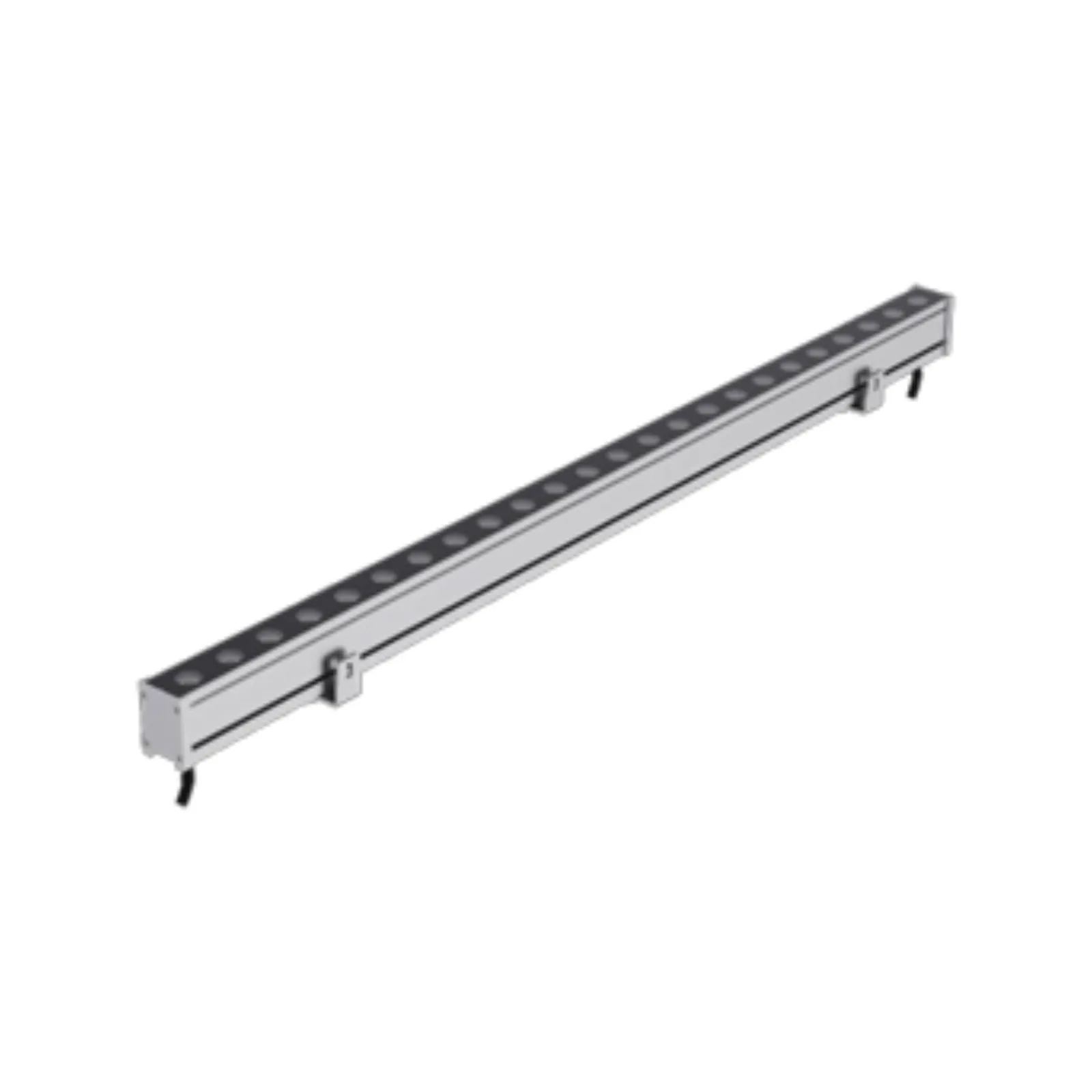

AQ-G-Mono

PIXL Aqua Grazer under water series linear wall washer is a new solution for large scale high-brightness architectural illumination. It has streamline design with aluminum profile and supported by adjustable brackets, light base optional, and easy installation. The precisely constructed linear luminaire with IP68 protection is ideally suited for the lighting of swimming pools, fountains and water features of all kind.

Rated Power

24 / 36 / 48W

Delivered Lumen

86-90lm/W

Led Color

2700/3000/4000/5700/6500K

Cri

80

Beam Angle

15°, 30°, 45°, 15°x60°

Ip Rating

IP68

Mounting

SURFACE MOUNT

Dimensions

1000(L) x56.5(W) x 50.5(H)mm

Body Finish

ALUMINUM COLOR

Supply Voltage

12 / 24V DC

Driver / Power Supply Details

ON/OFF

Lamp Life

50,000 Hrs

Led Quantity

18, 24 LEDs /mtr

Lens Options

PMMA

Light Source

CREE / OSRAM / EPISTAR

Body Material

ALUMINUM
