AQUALITE

The Aqualite is a modular LED flood light specifically designed for the caustic environment of Natatoriums, but versatile enough to be used in any flood light application. Multiple optical lens choices, and rotatable modules allow a wide variety of light spread for various use both indoor and out.

Rated Power

50 / 100 / 150 / 200 / 300 / 400 / 600W

Delivered Lumen

8500 lm (50W) 17000 lm (100W) 25500 lm (150W) 34000 lm (200W) 51000 lm (300W) 68000 lm (400W) 102000 lm (600W)

Led Color

2700/3000/4000/5000/6500K

Cri

70

Beam Angle

10°/30°/60°/90°/120°

Ip Rating

IP65

Mounting

YOKE MOUNT / PENDANT MOUNT / CROSS ARM BRACKET

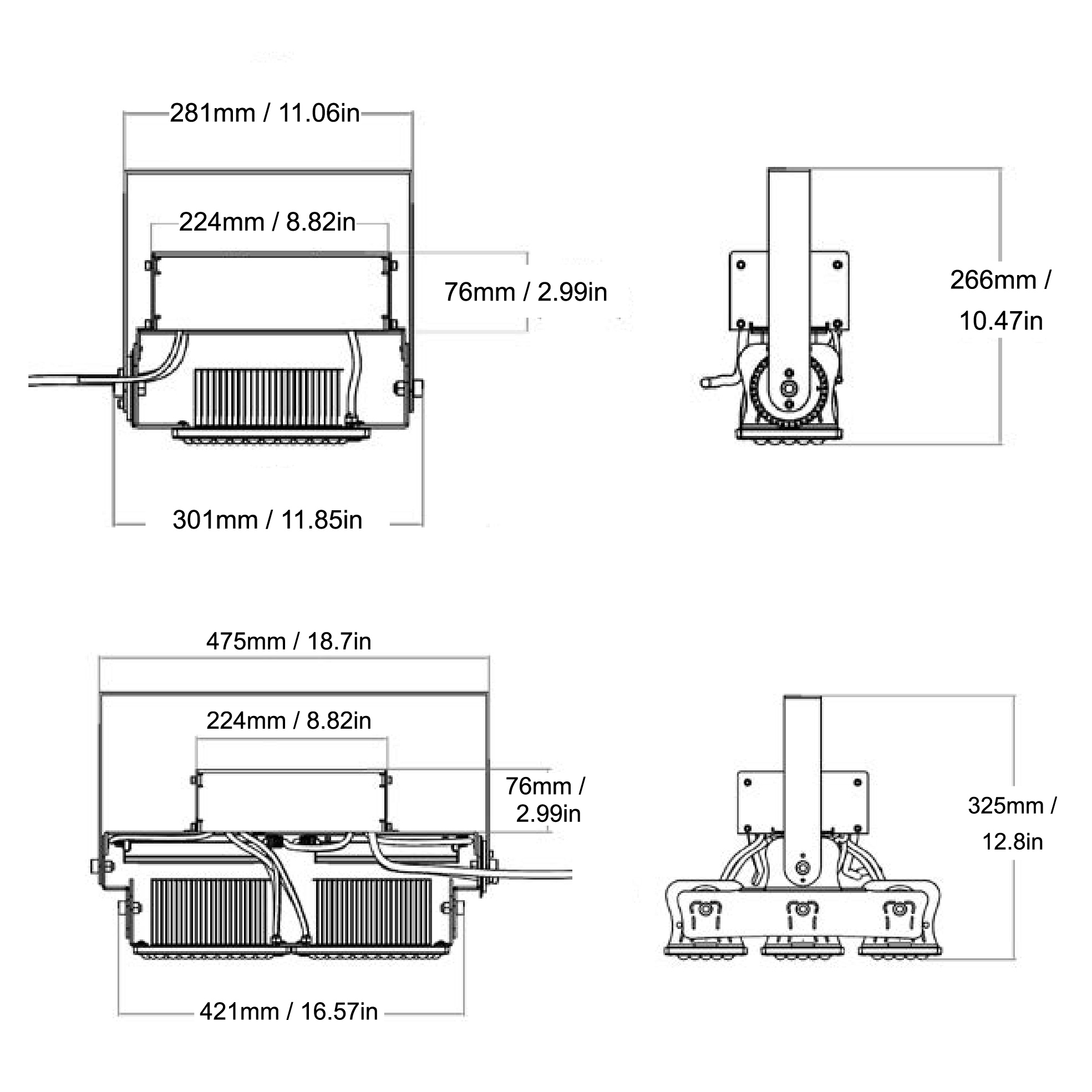

Dimensions

LXBXH : 291X102X266mm(60W), 291X102X266mm(100W), 291X219X334mm(150W), 291X219X334mm(200W), 291X340X324mm(300W), 485X219X334mm(400W), 485X340X324mm(600W)

Body Finish

GREY

Supply Voltage

120-277 VAC (UNV) / 277-480V (HV) (Remote drivers)

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

0-10V Dimming

Dimming

0-10V Dimming

Lamp Life

75,000 Hrs

Installation

Surface

Light Source

PHILIPS/LUMILEDS/CREE

Body Material

STEEL
