AREA LIGHT R3

The PIXL Area Light R3 combines sleek, modern aesthetics with high-performance functionality. This low-profile LED area light boasts an impressive efficiency of up to 150 lm/W, making it suitable for any environment. Its slimline design is complemented by one of the highest lumen outputs available on the market today. Versatile in use, the PIXL Area Light R3 can function as both a floodlight and an area light. It offers a variety of mounting options and features advanced surge protection, photocell capabilities, and occupancy sensors. Equipped with cutting-edge LEDs, this fixture is engineered to excel.Designed for durability, the uniform PC lens is easy to maintain and replace, while integrated cooling fins ensure excellent thermal dissipation, contributing to an exceptionally long lifespan. With an IP66 rating, the R3 operates seamlessly in temperatures ranging from -40 to 55 degrees Celsius (-40 to 131 degrees Fahrenheit). Plus, standard 0-10V dimming allows for enhanced control and energy efficiency. Custom colors are also available. All fixtures include a 3 pin socket for a photocell complete with shorting cap. All fixtures also include a knock out to field install an occupancy sensor. Optional Field Installable Side and Back Shields are also available.

Rated Power

50W / 75W / 100W / 150W / 200W / 240W

Delivered Lumen

7500 lm (50W) / 11250 lm (75W) / 15000 lm (100W) / 22500 lm (150W) / 30000 lm (200W) / 36000 lm (240W)

Led Color

Selectable (3000K / 4000K / 5000K)

Cri

>70

Beam Angle

Type 3, Type 4, Type 5

Ip Rating

IP66

Mounting

Pole arm mounting, Wall Mount Arm, Slip Fitter and Trunnion

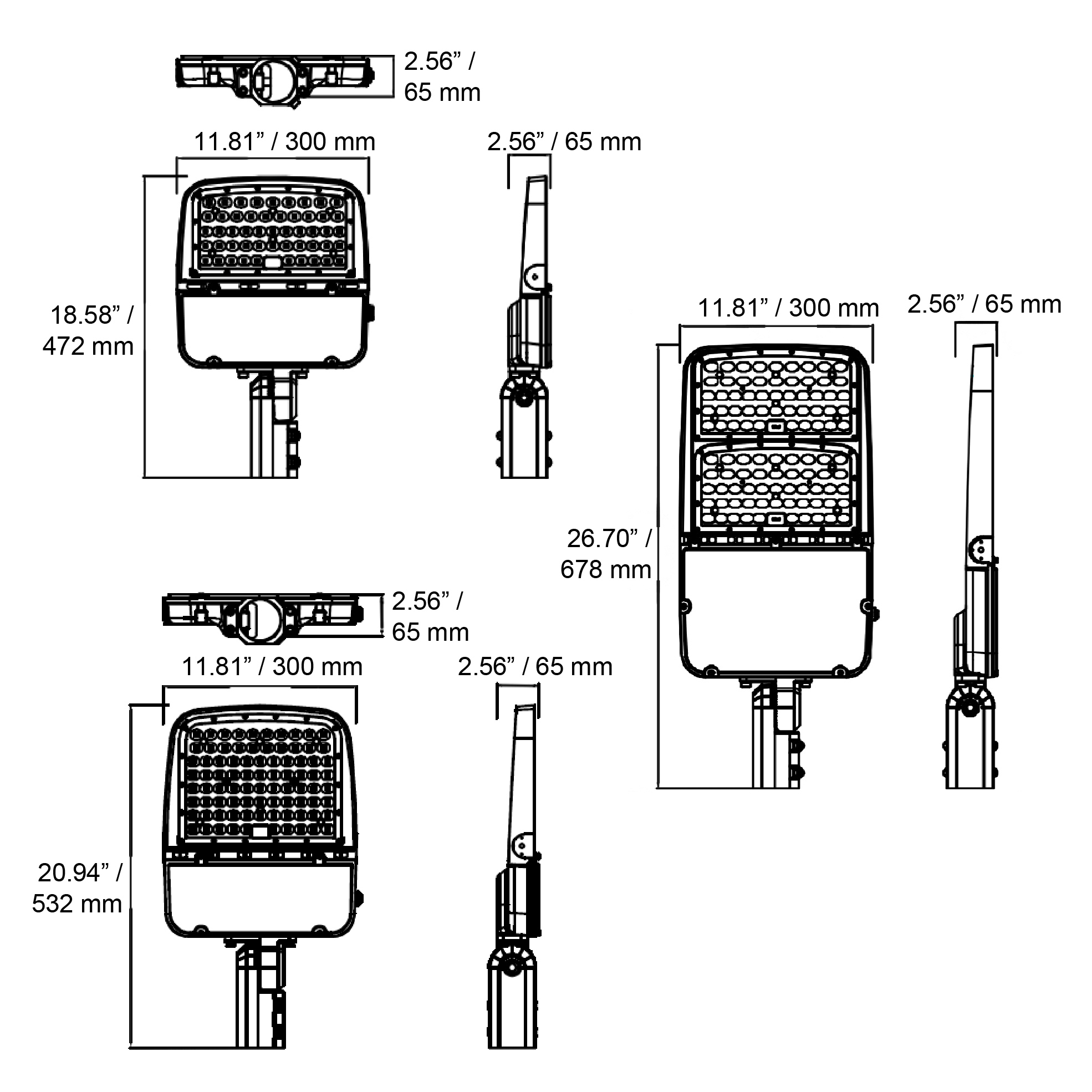

Dimensions

11.81” x 18.58” x 2.56” / 300 x 472 x 65 mm (50W-100W) / 11.81” x 26.70” x 2.56” / 300 x 678 x 65 mm (100W-200W) / 11.81” x 20.94” x 2.56” / 300 x 532 x 65 mm (150W-240W)

Body Finish

BLACK, WHITE, DARK BRONZE

Connection

OUTDOOR RATED CONNECTIONS

Dimming

0-10V Dimming

Lamp Life

100,000 hours @L70: >

Light Source

LUMILEDS

Body Material

DIE-CAST ALUMINUM

Supply Current

100 - 347 V AC
