BDG

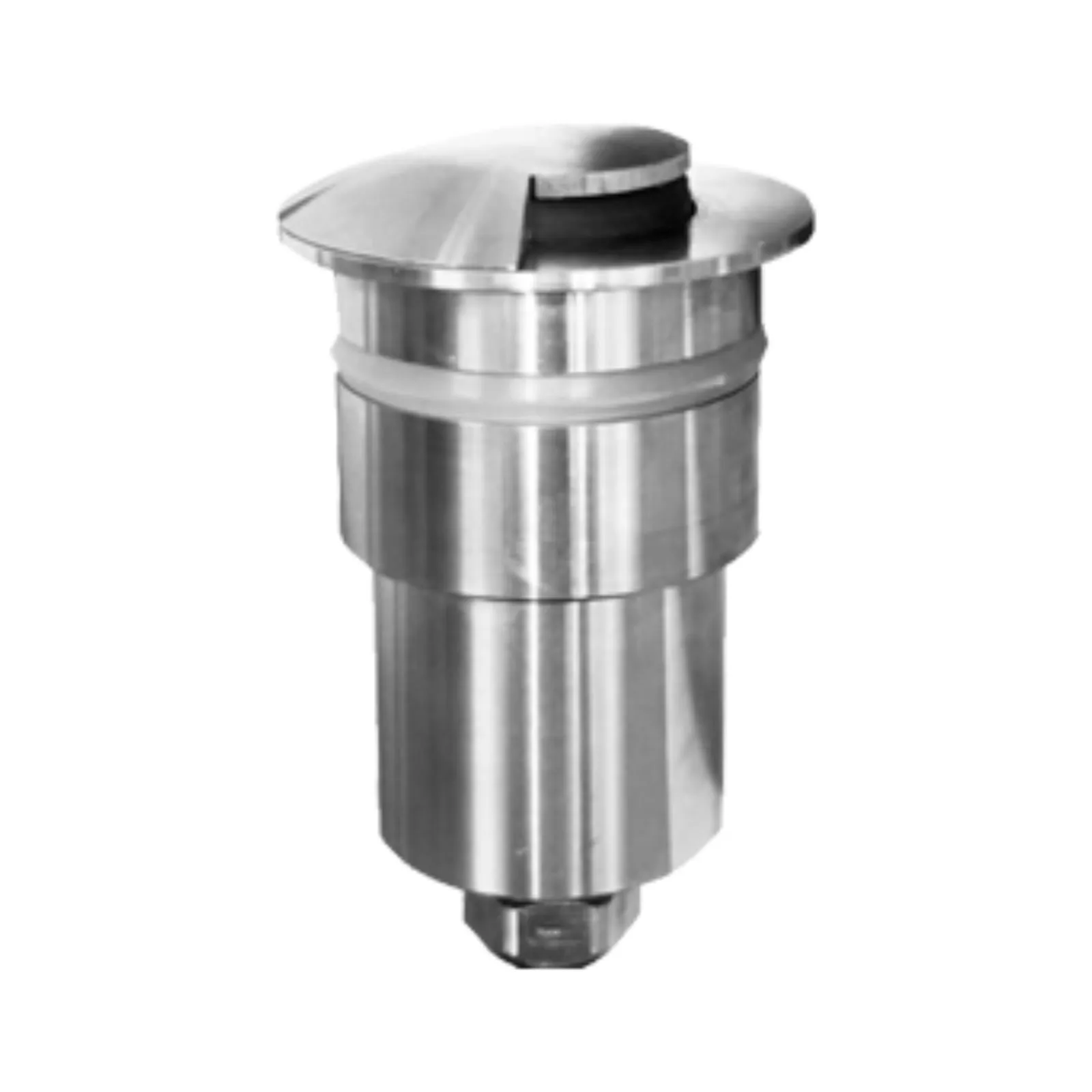

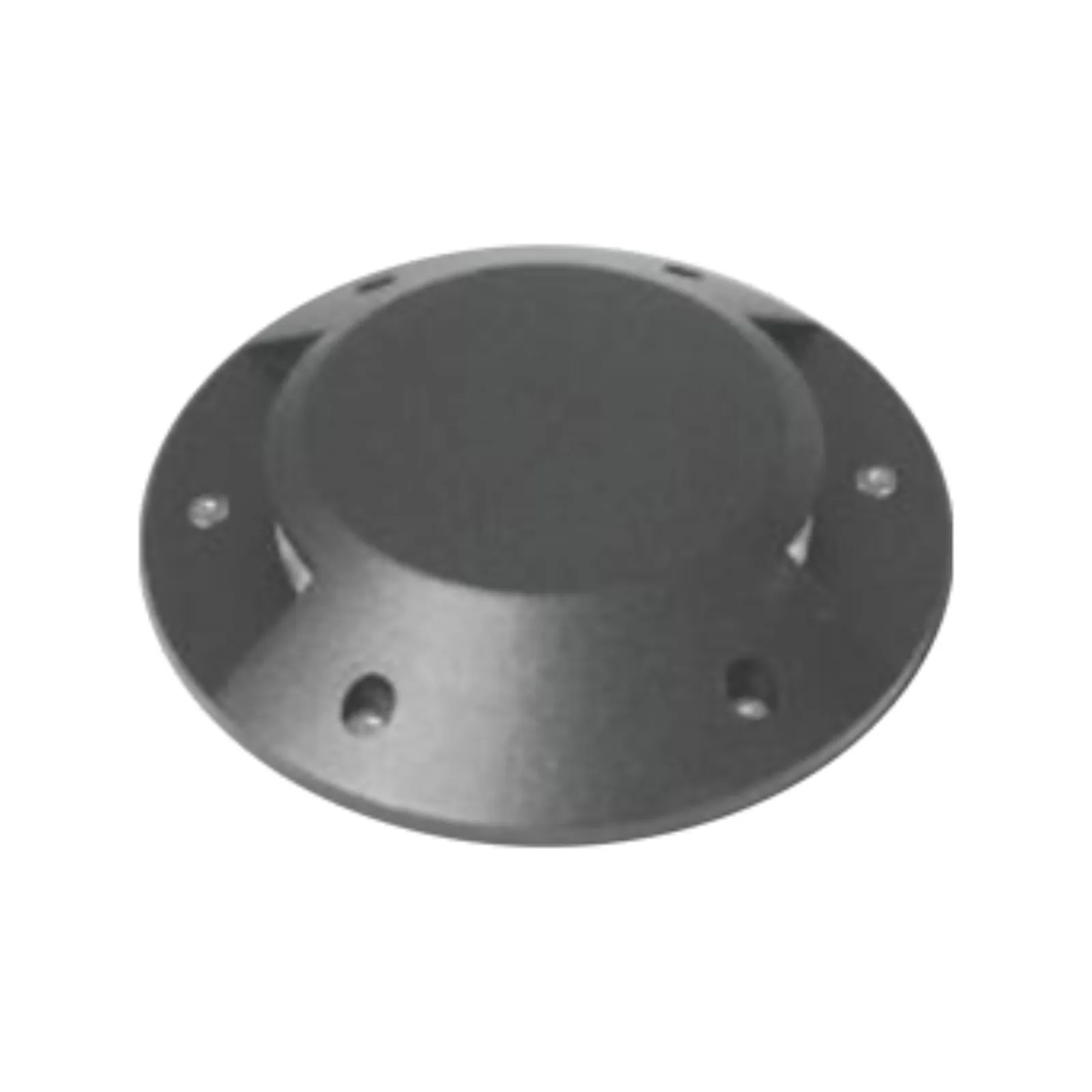

PIXL Badge series luminaires are Inground pathway lights with precision optical system to provide glare free dramatic lighting of pathways, pedestrian walkways, residential and commercial landscapes. Robust construction with main body in Die-cast Aluminium with top frame in options of Diecast aluminium or 316 marine grade stainless Steel makes it a drive over luminaire by pneumatic tyre loads until 4000Kg at a maximum speed of 20km/hr

Rated Power

1.2W / 2.4W / 4.8W

Delivered Lumen

60-75 lm/W

Led Color

2700/3000/4000/6500K

Cri

80+

Ip Rating

IP67

Mounting

FLOOR RECESSED

Dimensions

Ø206x140mm

Body Finish

Powder coated black, Stainless steel

Supply Voltage

100-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; 1-10V; DALI

Notes

LIGHT PATTERN : SINGLE DOUBLE 4-SIDED

Lamp Life

L90 B10 65, 000hrs

Light Source

CREE / LUMILEDS / BRIDGELUX

Body Material

STAINLESS STEEL, ALUMINUM
