BDG-2

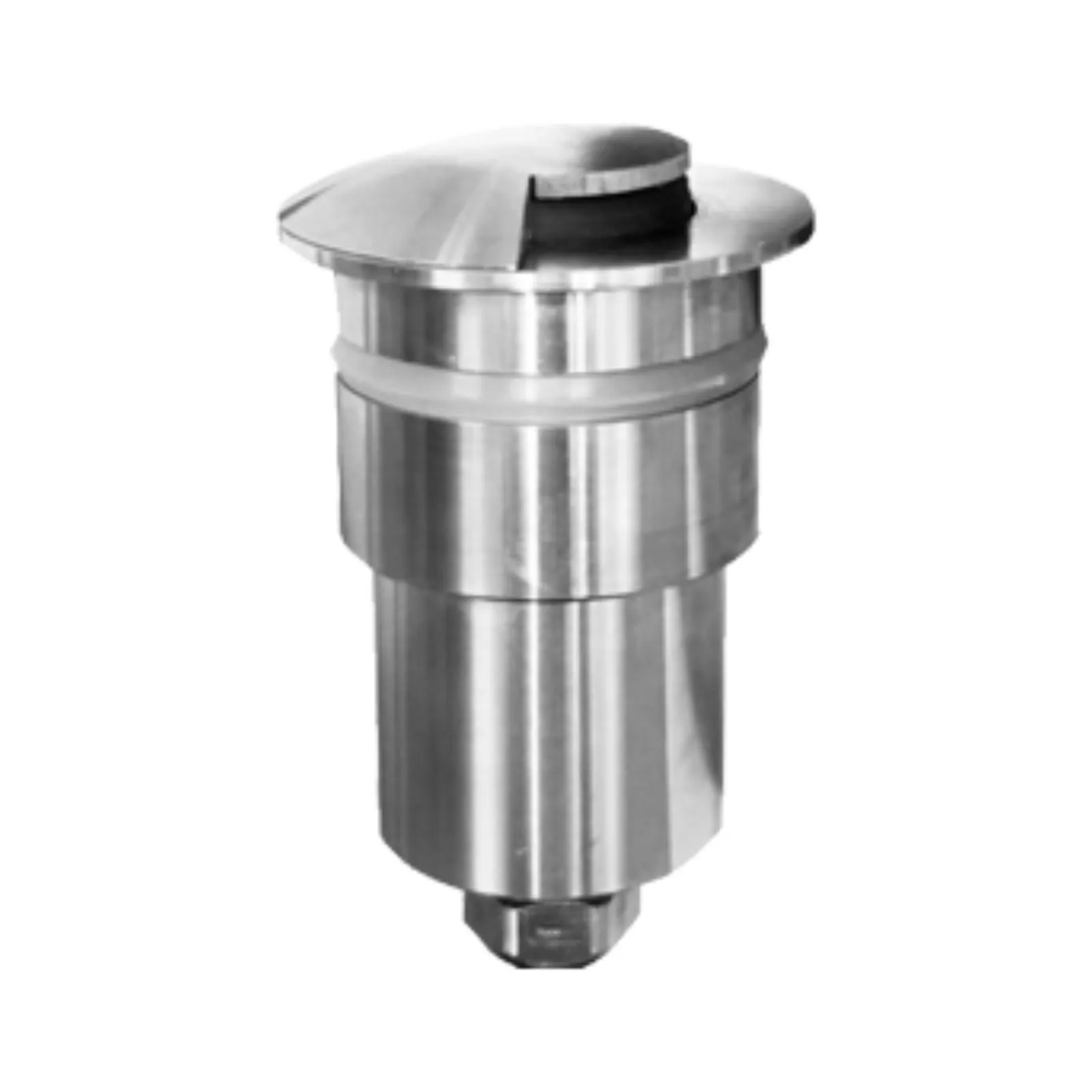

PIXL Badge series, a ground-mounted LED luminaire designed for pathways and landscape illumination. This soft LED version features precision optical systems that offer a low glare rating while reducing light pollution. Constructed from 316 Grade Marine grade stainless steel, the Pathway Light is ideal for marina walkways, landscape pathways, and other areas requiring glare-free illumination. The light casts a flat beam in single, two, or quadruple directions, providing accent and safety lighting without upward glare. With an IP68 rating and IK08 rating, this luminaire is built to withstand challenging environments, including drive-over capability up to 1000kg @ 20km/hr. Experience the desired effect with high-quality optical systems, achieving soft and uniform lighting that seamlessly enhances the surrounding space.

Rated Power

1 / 2W

Delivered Lumen

1W-35lm 2W-65lm

Led Color

2700/3000/4000/5000K

Cri

85+

Ip Rating

IP68

Mounting

FLOOR RECESSED

Dimensions

56x85.2mm

Body Finish

Stainless steel

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

On/Off

Notes

LIGHT PATTERN : Single Double 4-Sided

Lamp Life

50,000 Hrs

Lens Options

Diffuser

Light Source

CREE / LUMILEDS / BRIDGELUX

Body Material

316 Marine grade stainless steel
