CMY

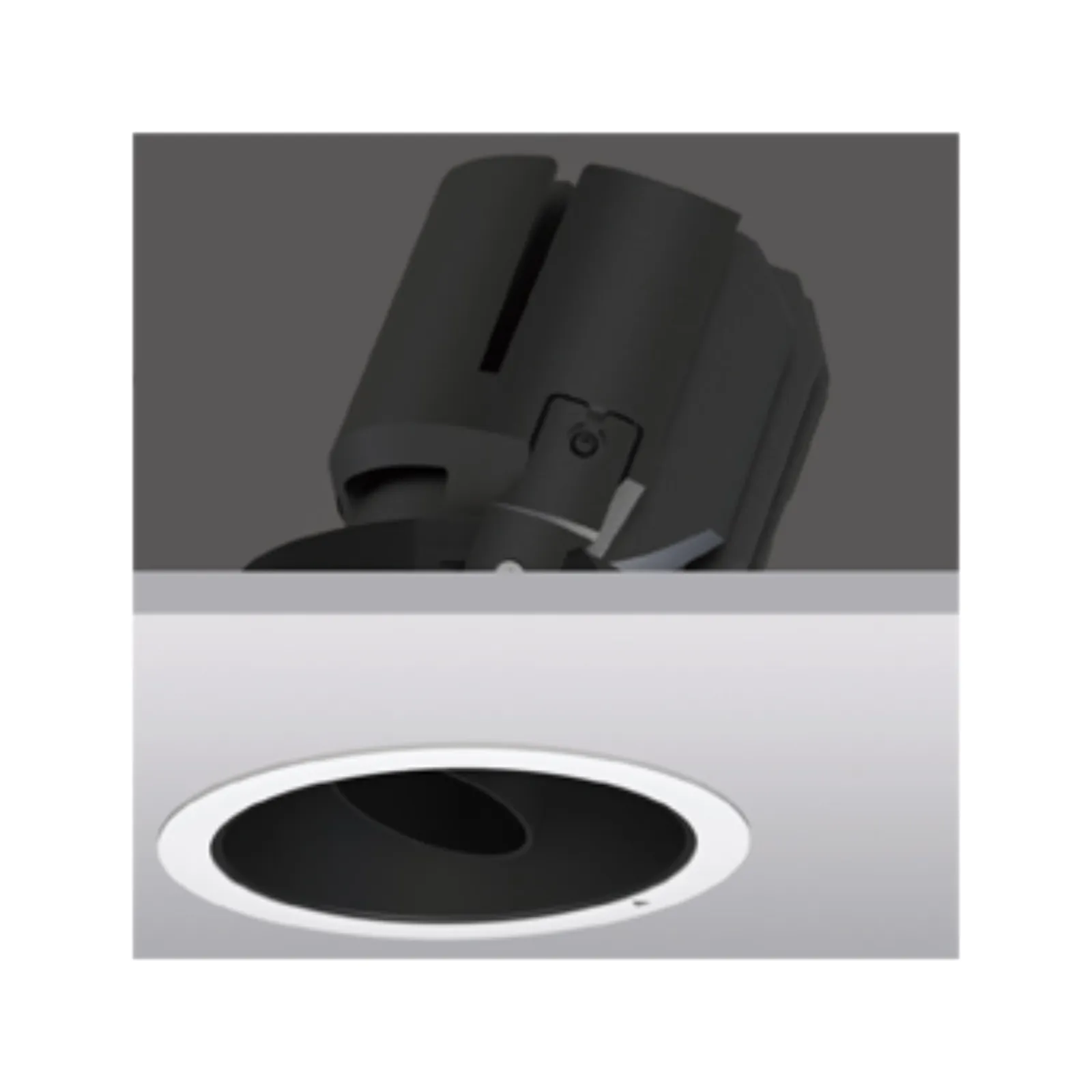

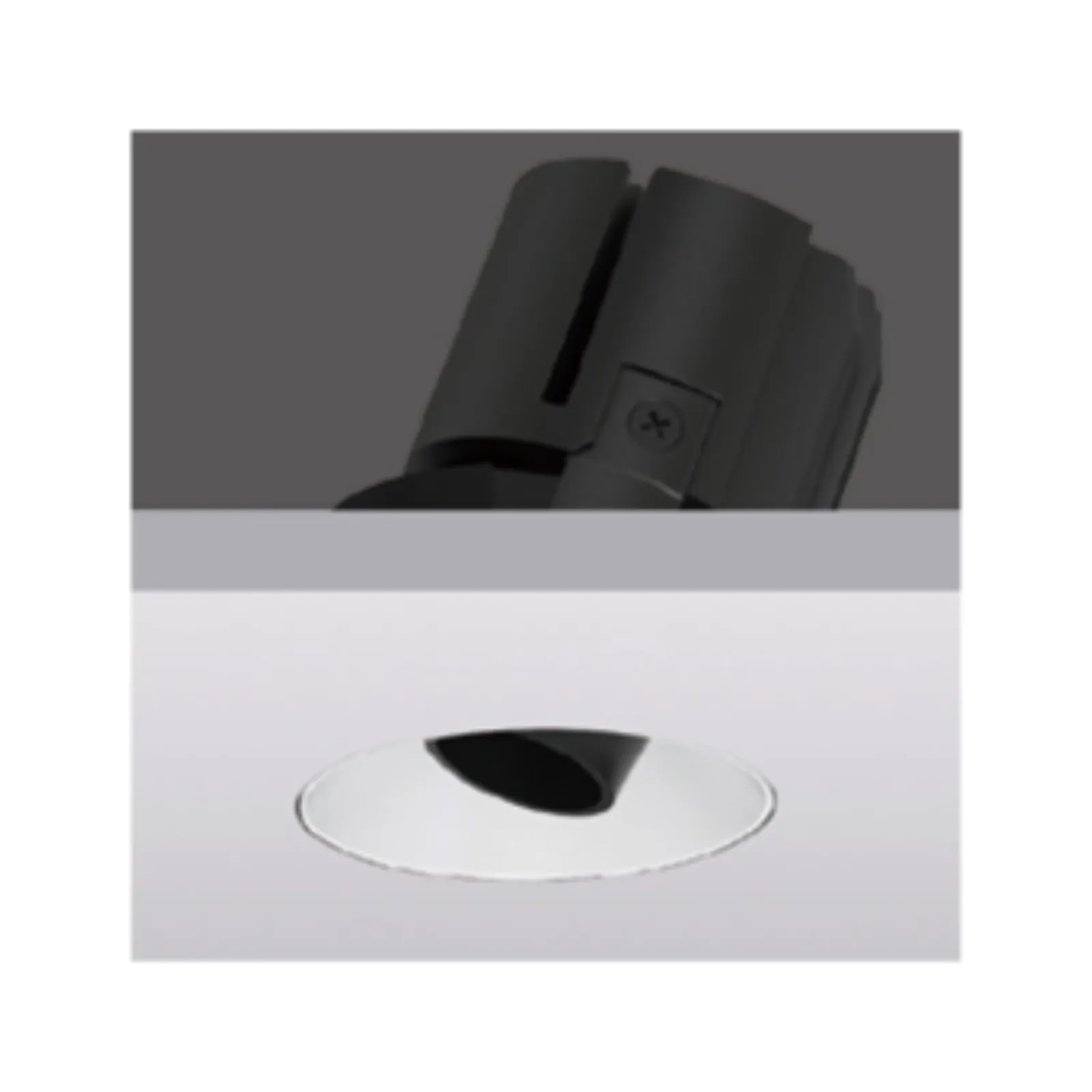

PIXL Comfy series is the a type of ceiling recessed downlight in aluminum body with exquisite physique and the adjustable angle design of the spotlight enable it to exert the anti glare effect to the extreme in various spaces. The high-efficiency spotlight technology and the design of the adjustable angle of the spotlight can provide more luminous flux for a higher and larger space, and at the same time, it can also bring the anti dazzle effect to the extreme. This fixture is ideal in areas like residential buildings, villas, star rated hotels, etc.

Rated Power

20/25/30 W

Delivered Lumen

891-1245 lm @ 3000K 20W 1039-1447 lm @ 3000K 25W 1198-1717 lm @ 3000K 30W

Led Color

2700/3000/4000/5000K

Cri

90

Beam Angle

15°, 20°, 32°

Ip Rating

IP20/54

Mounting

CEILING RECESSED

Dimensions

Ø116 x 147mm(CutoutØ104mm)

Body Finish

WHITE,BLACK

Supply Voltage

100-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI PHASE 1-10V (Bluetooth options)

Dimming

NON-DIMMABLE, DALI, PHASE, 1-10V

Lamp Life

50,000 Hrs

Light Source

CREE

Body Material

ALUMINUM

Rated Current

500mA, 600mA, 700mA
