CRL-1

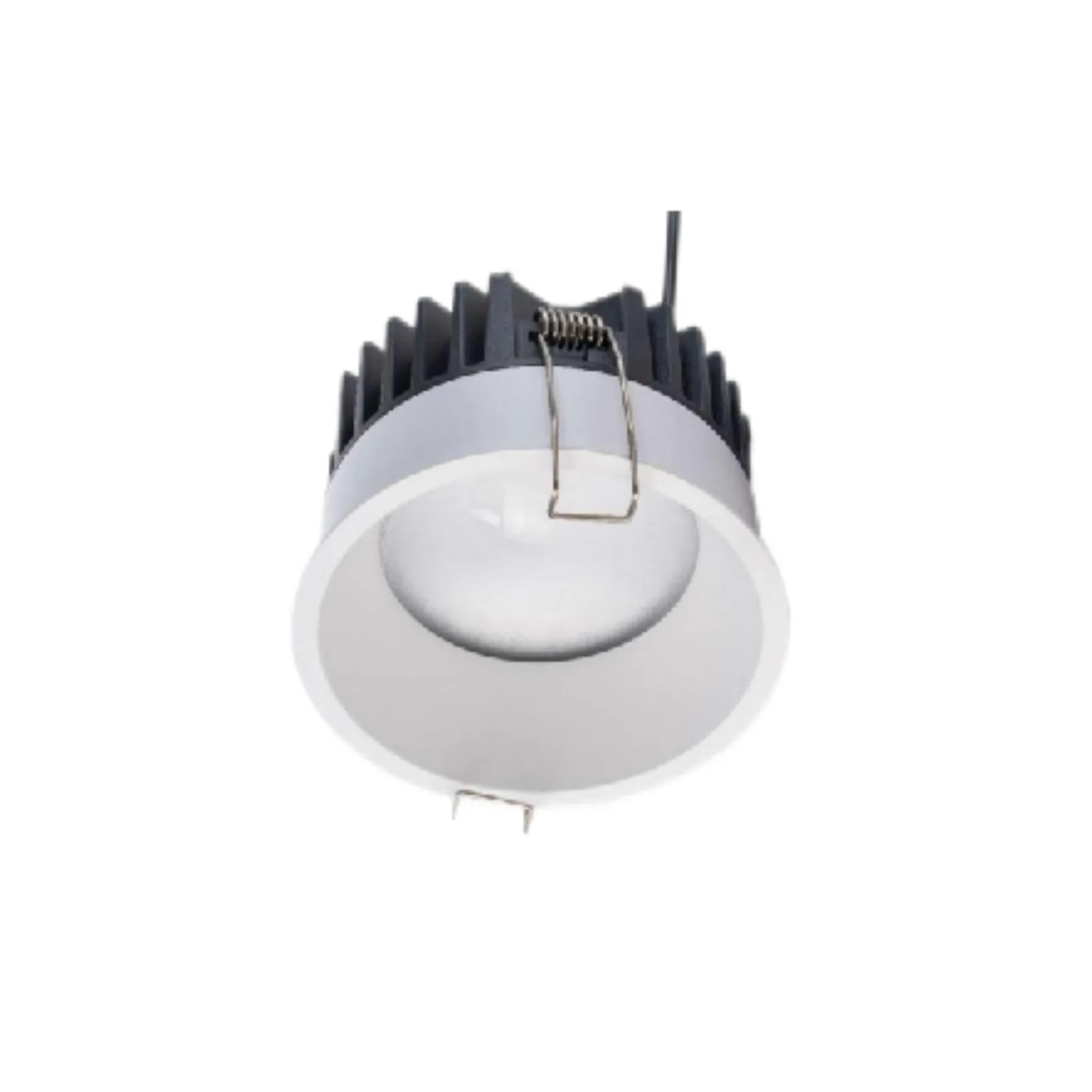

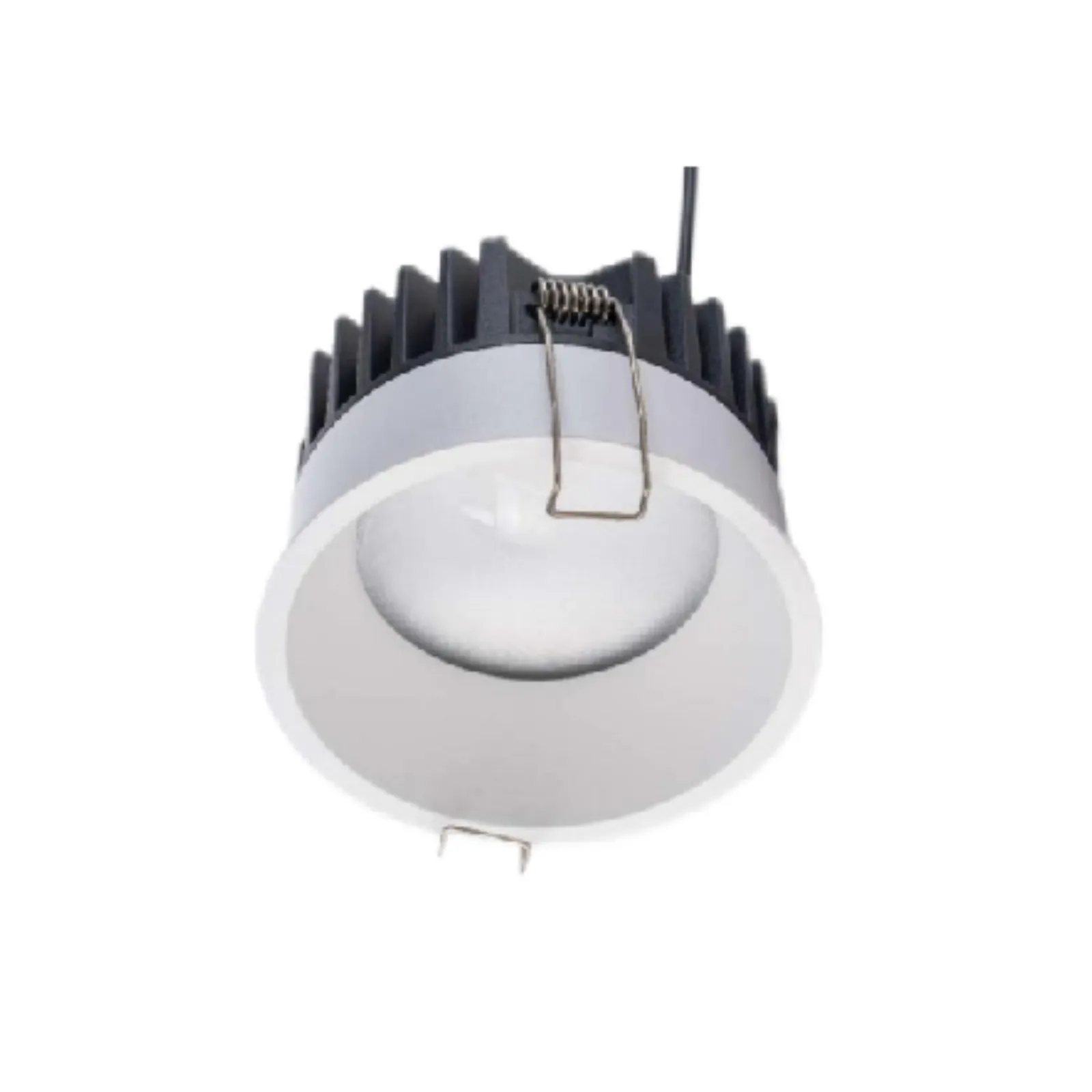

The Coral Series is a recessed LED downlight featuring an anti-glare optical diffuser for enhanced visual comfort. With an IP65 rating, it offers protection against rain and humidity, making it ideal for various environments. Designed for efficiency and high-quality lighting, this series incorporates advanced heat conduction technology with a durable aluminum body and heat-resistant optics, ensuring long-lasting performance.

Rated Power

8W, 10W, 15W

Delivered Lumen

80lm / W

Led Color

2700K/3000K/4000K

Cri

90

Beam Angle

15º, 24º, 36º, 60º, Diffused Lens

Ip Rating

IP65

Mounting

CEILING RECESSED

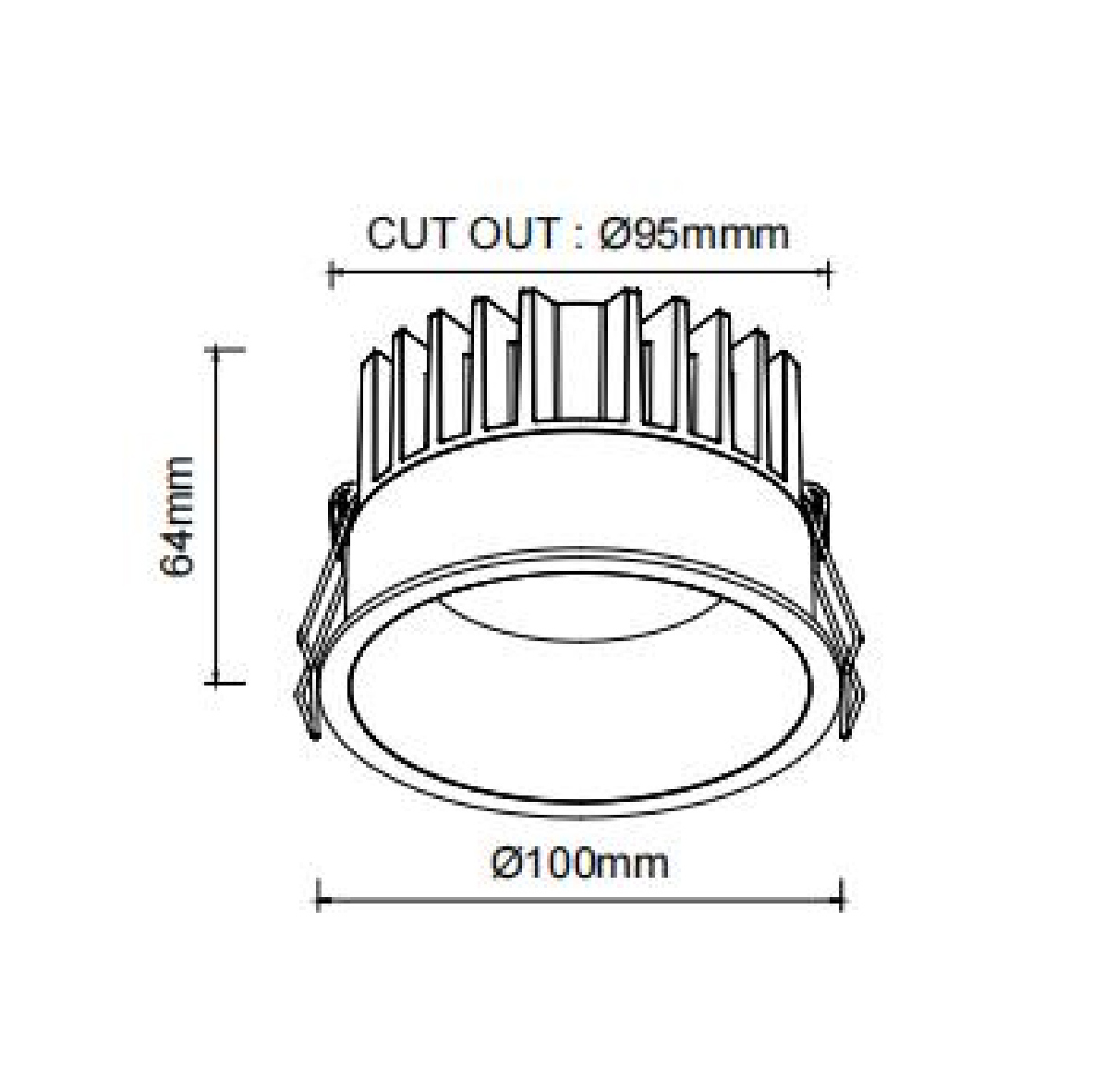

Dimensions

Ø100 x 64 mm

Body Finish

WHITE,BLACK

Supply Voltage

220-240 V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

Switched TRIAC 1-10V DALI

Dimming

NON-DIMMABLE, TRIAC, 1-10V, DALI

Led Type

COB

Lamp Life

50,000 Hrs

Led Quantity

1

Light Source

Bridgelux

Body Material

ALUMINUM

Certification

CE, ROHS, CCC

Working Temp.

-20° to +40°
