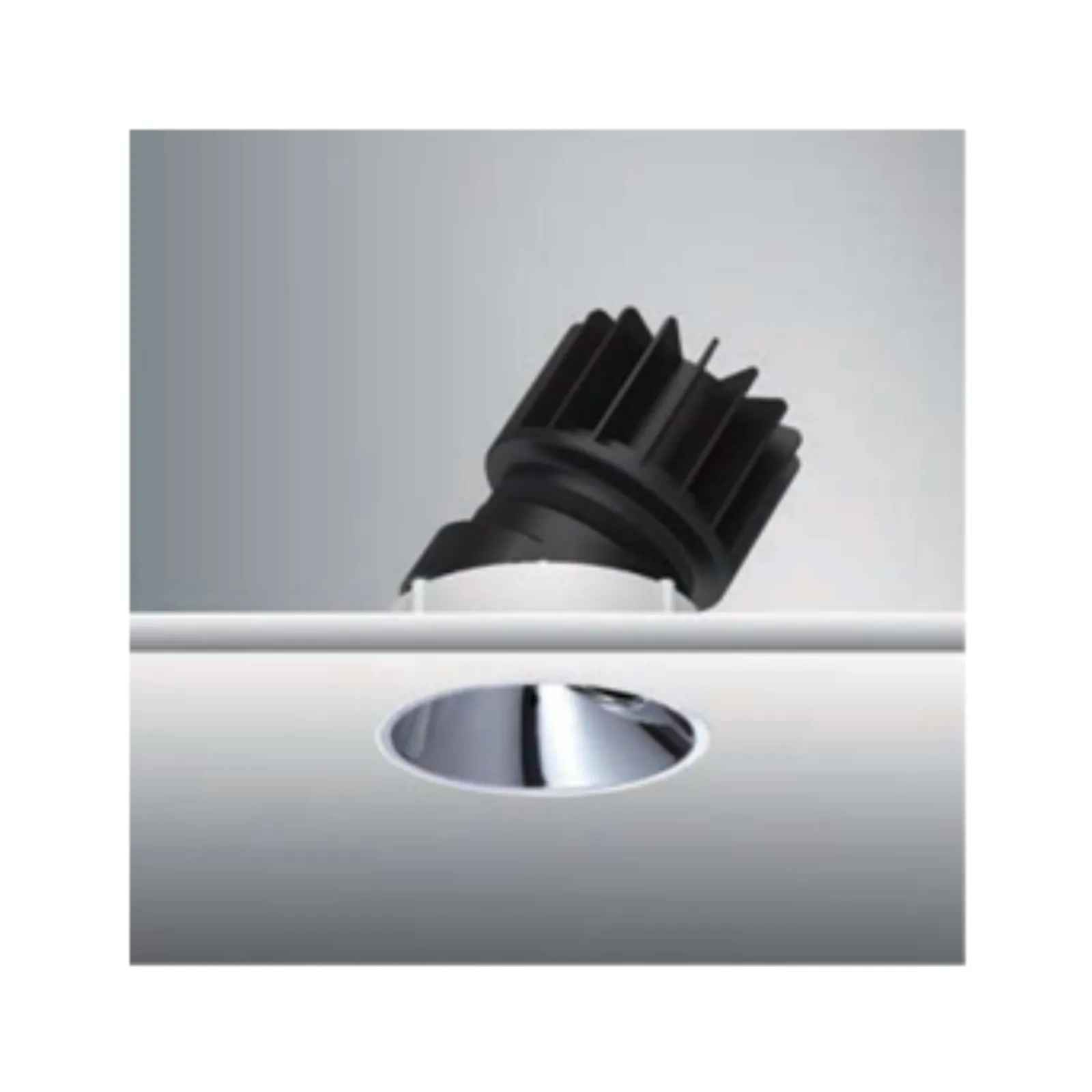

CRL-TLS-A

The PIXL Coral Series Trimless Adjustable LED Downlights offer optimal visual comfort, efficiency, and light quality for diverse lighting projects. With a UGR value below 19 and an adjustable range of 0° to 30°, they ensure excellent glare control and uniform illumination. The Coral Series provides flexibility in ordering, with various reflector/lens combinations, beam angles, reflector colors, and optional diffuser/louver accessories. The LED module is available in both IP44 and IP65 ratings, suitable for covered applications with increased IP requirements. This series is an ideal choice for reliable, energy-efficient lighting in commercial or residential settings, emphasizing customizable options for diverse needs.

Rated Power

6W / 9W / 10W / 12W

Delivered Lumen

620lm - 6W (175mA); 879lm - 9W (250mA); 950lm - 10W (285mA); 1289lm - 12W (350mA)

Led Color

2700/3000/4000K

Cri

90+

Beam Angle

15°, 24°, 36°, 50°

Ip Rating

IP44/65

Mounting

CEILING RECESSED

Dimensions

Ø75 x 96mm (Cutout Ø76mm)

Body Finish

WHITE,BLACK

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

On-Off Dali

Notes

UGR: <19 SDCM: 2

Lamp Life

50,000 Hrs

Lens Options

PMMA Lens

Light Source

BRIDGELUX

Body Material

DIE-CAST ALUMINIUM

Rated Current

175mA/250mA/285mA/350mA
