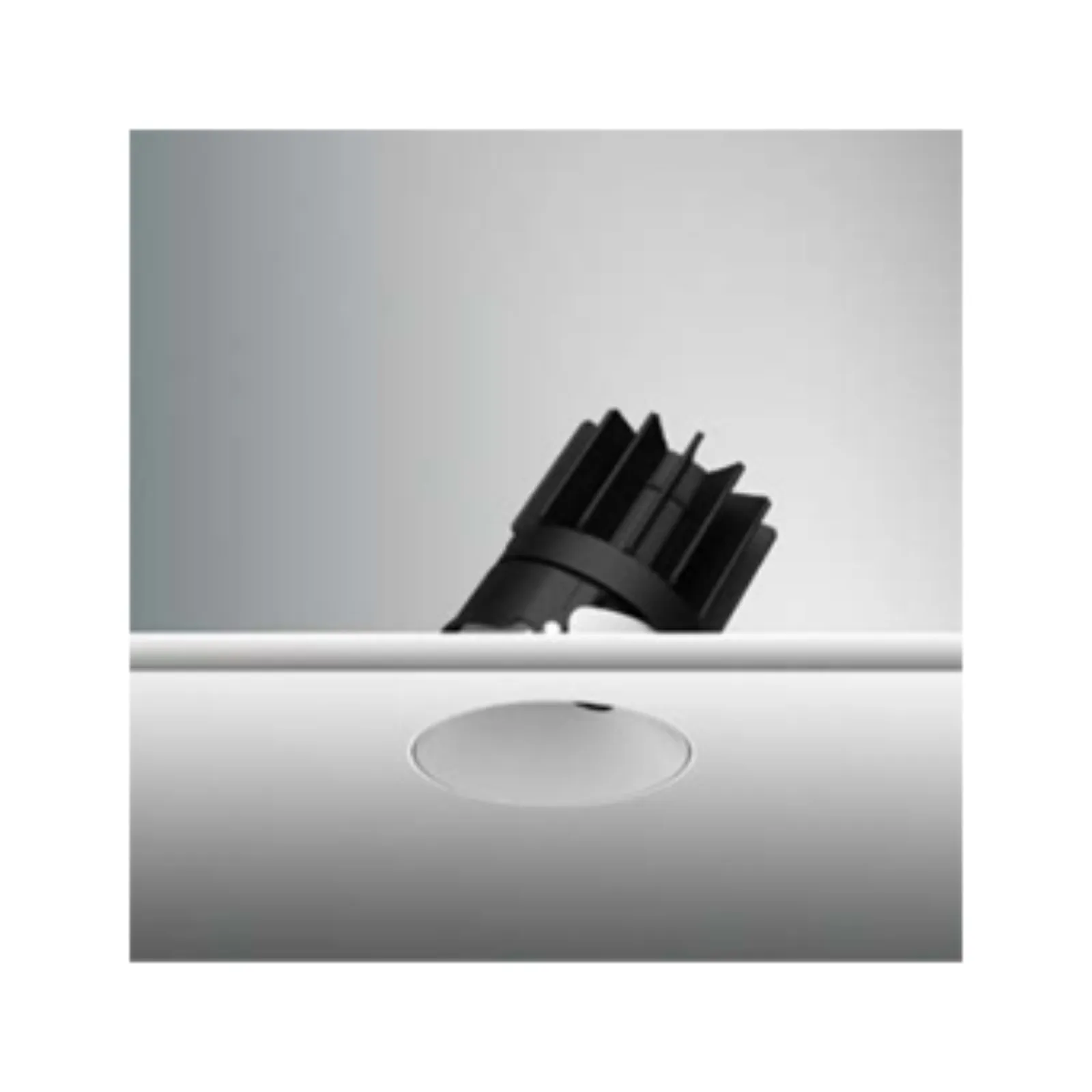

CRL TLS A1

The PIXL Coral series recessed trimless adjustable LED downlights is a perfect choice for lighting projects that require superior visual comfort, efficiency, and high quality of light with white reflector. Boasting a UGR value of less than 19 and an adjustable range of 0° to 30°, these downlights provide excellent glare control and uniformity of illumination while maintaining a high level of visual comfort. Coral series offers several options for ordering, including a range of lens combinations in four beam angle options. It also includes four different diffuser/louver options as additional accessories for further glare control and soft light diffusion. The LED module is available in both IP44 and IP65 ratings, permitting it to be utilized in covered applications that require improved IP ratings. This series of LED downlights is the ideal choice for lighting projects that demand a reliable, energy efficient solution with superior visual comfort and quality of light. With its customizable options, the PIXL Coral series recessed trimless adjustable LED downlights is the perfect choice for any commercial or residential application.

Rated Power

8W / 10W / 12W

Delivered Lumen

660lm @ 8W 784lm @ 10W 1124lm @ 12W

Led Color

2700/3000/4000K

Cri

90+

Beam Angle

15°(10W only), 30°, 50°, 60°

Ip Rating

IP44/65

Mounting

CEILING RECESSED

Dimensions

121 x 93mm (Cutout 80mm)

Body Finish

WHITE,BLACK

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

On/Off; Triac; 1-10V; Dali

Notes

UGR : <19

Lamp Life

50,000 Hrs

Light Source

CITIZEN

Body Material

ALUMINUM

Rated Current

250mA, 800mA, 350mA
