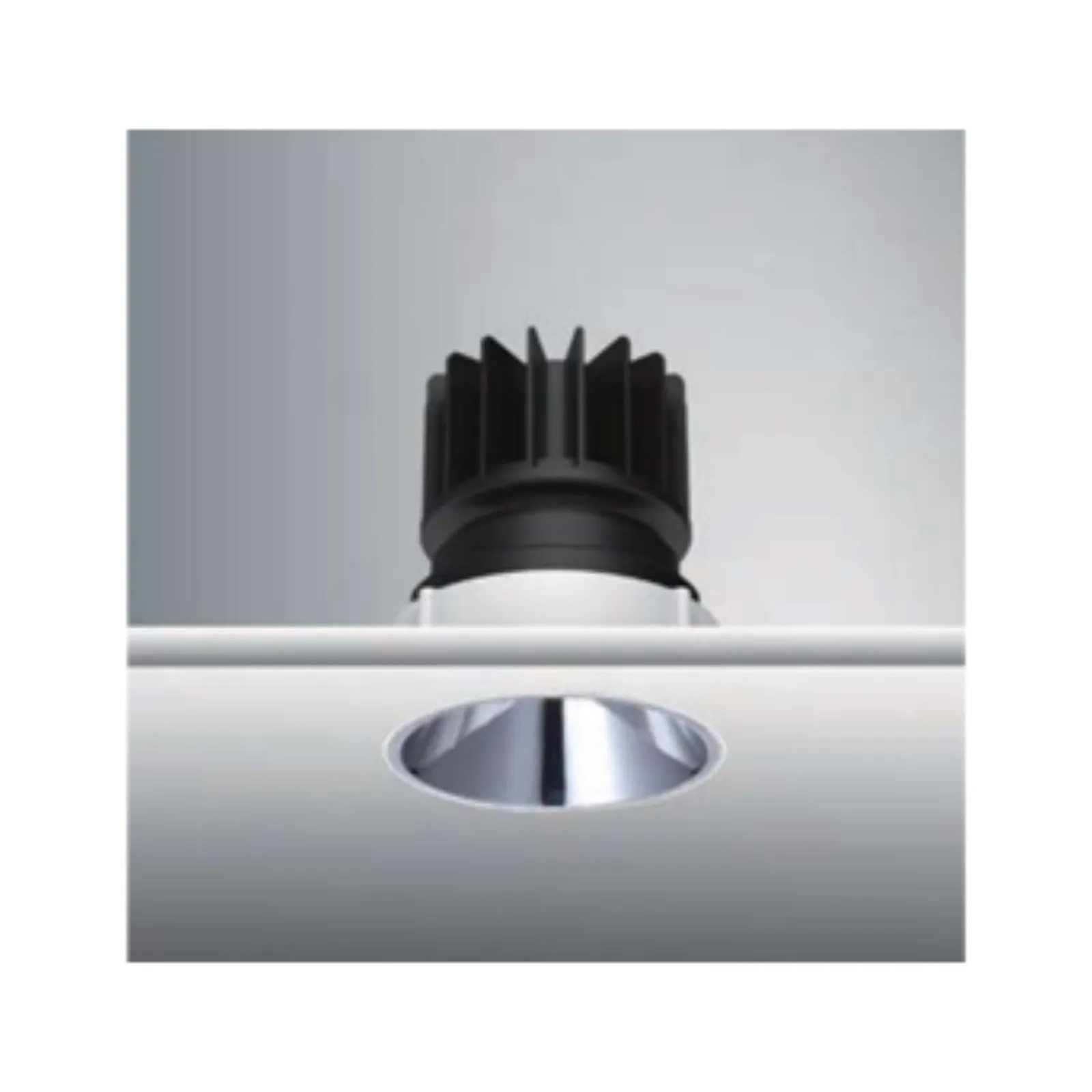

CRL-TLS-F

The PIXL Coral Series Trimless Fixed LED Downlights offer optimal visual comfort, efficiency, and light quality for diverse lighting projects. With a UGR value below 19 and an adjustable range of 0° to 30°, they ensure excellent glare control and uniform illumination. The Coral Series provides flexibility in ordering, with various reflector/lens combinations, beam angles, reflector colors, and optional diffuser/louver accessories. The LED module is available in both IP44 and IP65 ratings, suitable for covered applications with increased IP requirements. This series is an ideal choice for reliable, energy efficient lighting in commercial or residential settings, emphasizing customizable options for diverse needs.

Rated Power

6W / 9W / 10W / 12W

Delivered Lumen

620lm - 6W (175mA); 879lm - 9W (250mA); 950lm - 10W (285mA); 1289lm - 12W (350mA)

Led Color

2700/3000/4000K

Cri

90+

Beam Angle

15°, 24°, 36°, 50°

Ip Rating

IP44/65

Mounting

CEILING RECESSED

Dimensions

Ø75 x 94mm (Cutout Ø76mm)

Body Finish

WHITE,BLACK

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

On-Off Dali

Notes

UGR: <19 SDCM: 2

Lamp Life

50,000 Hrs

Lens Options

PMMA Lens

Light Source

BRIDGELUX

Body Material

DIE-CAST ALUMINIUM

Rated Current

175mA (6W), 250mA (9W), 285mA (10W), 350mA (12W)
