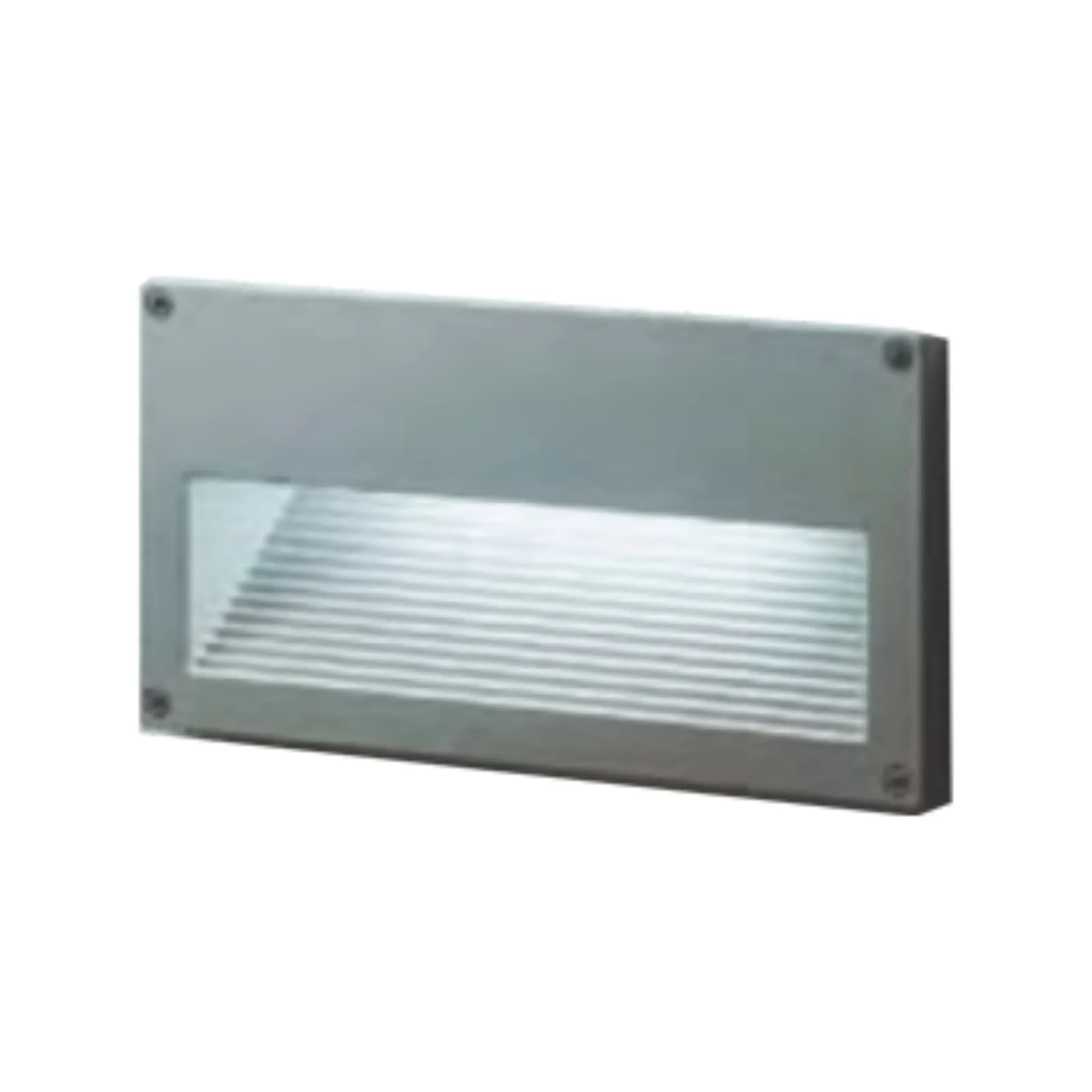

DWN

PIXL Dawn is a type of wall recessed asymmetrical luminaries in So􀈇 and power LED version specially designed for facade or stairs and in unique shape version wall mounted LED light in compact size design. These luminaires are designed to offer functional, a wide range of lighting solutions and dramatic highlighting of the architectural facades of different buildings through the design with superior finishing as well highest efficiency with a long service life. This exterior wall mounted luminaries is made in die cast aluminium frame, body and housing covered by anti corrosion resistant material. This product provide so

Rated Power

6 / 12 / 15W

Delivered Lumen

80-90lm/W

Led Color

2700/3000/4000/5000K

Cri

80

Beam Angle

45°

Ip Rating

IP65

Mounting

WALL RECESSED

Dimensions

260, 275x70, 145x80, 113mm

Supply Voltage

100-277V AC / 24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DIMMABLE

Dimming

NON-DIMMABLE, DIMMABLE

Lamp Life

50,000 Hrs

Body Material

DIE-CAST ALUMINUM
