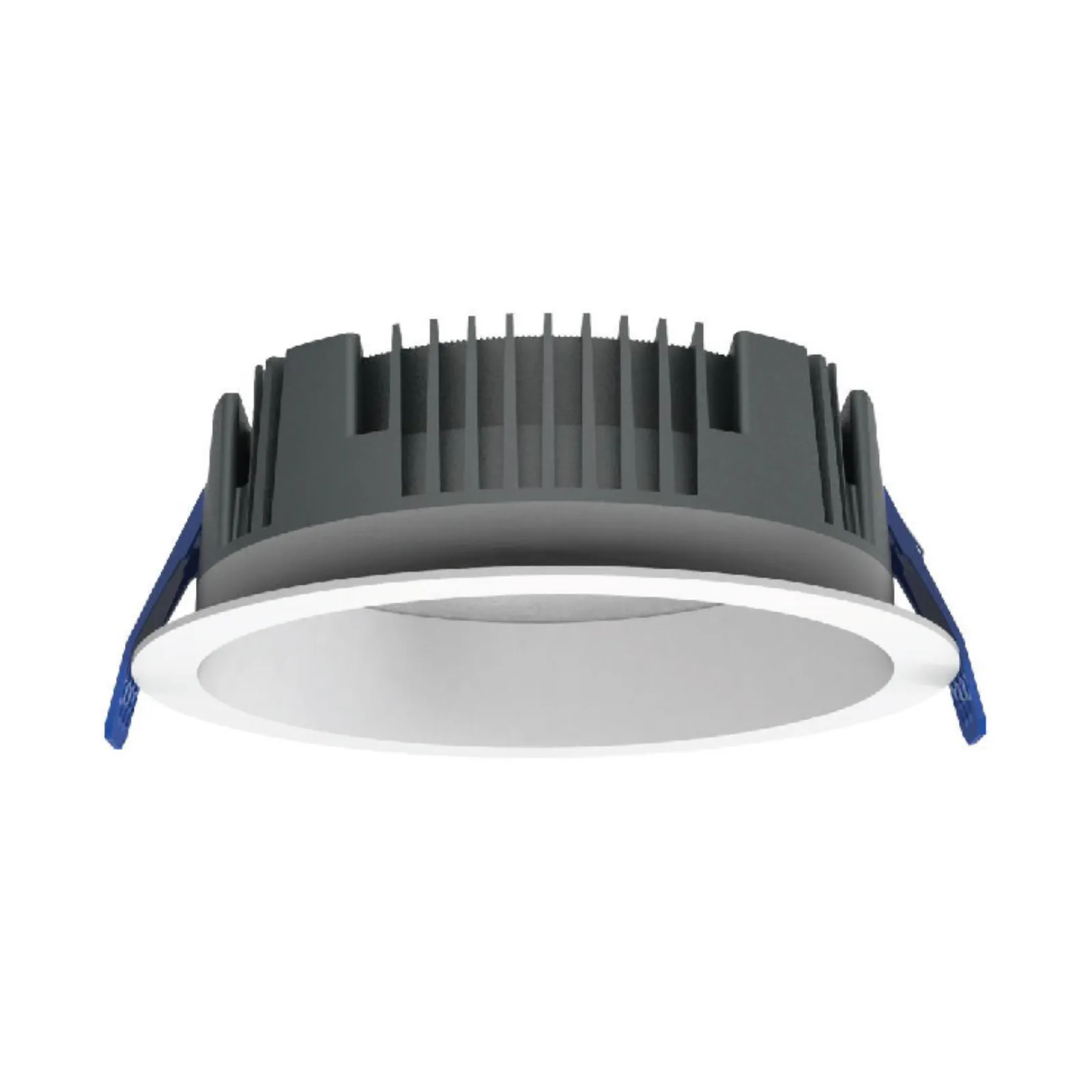

DCS-IP65

PIXL Discus series of architectural downlight features glare free performance with the ultra wide beam angle. Available in variety of sizes to accommodate wattage. Making it versatile for applications with ceiling heights.

Rated Power

7 / 10 / 15 / 20 / 25 / 30 / 40 / 50W

Delivered Lumen

100-105 lm/W

Led Color

2700/3000/4000/5000/6000K

Cri

80, 90

Beam Angle

60°, 90°

Ip Rating

IP65

Mounting

CEILING RECESSED

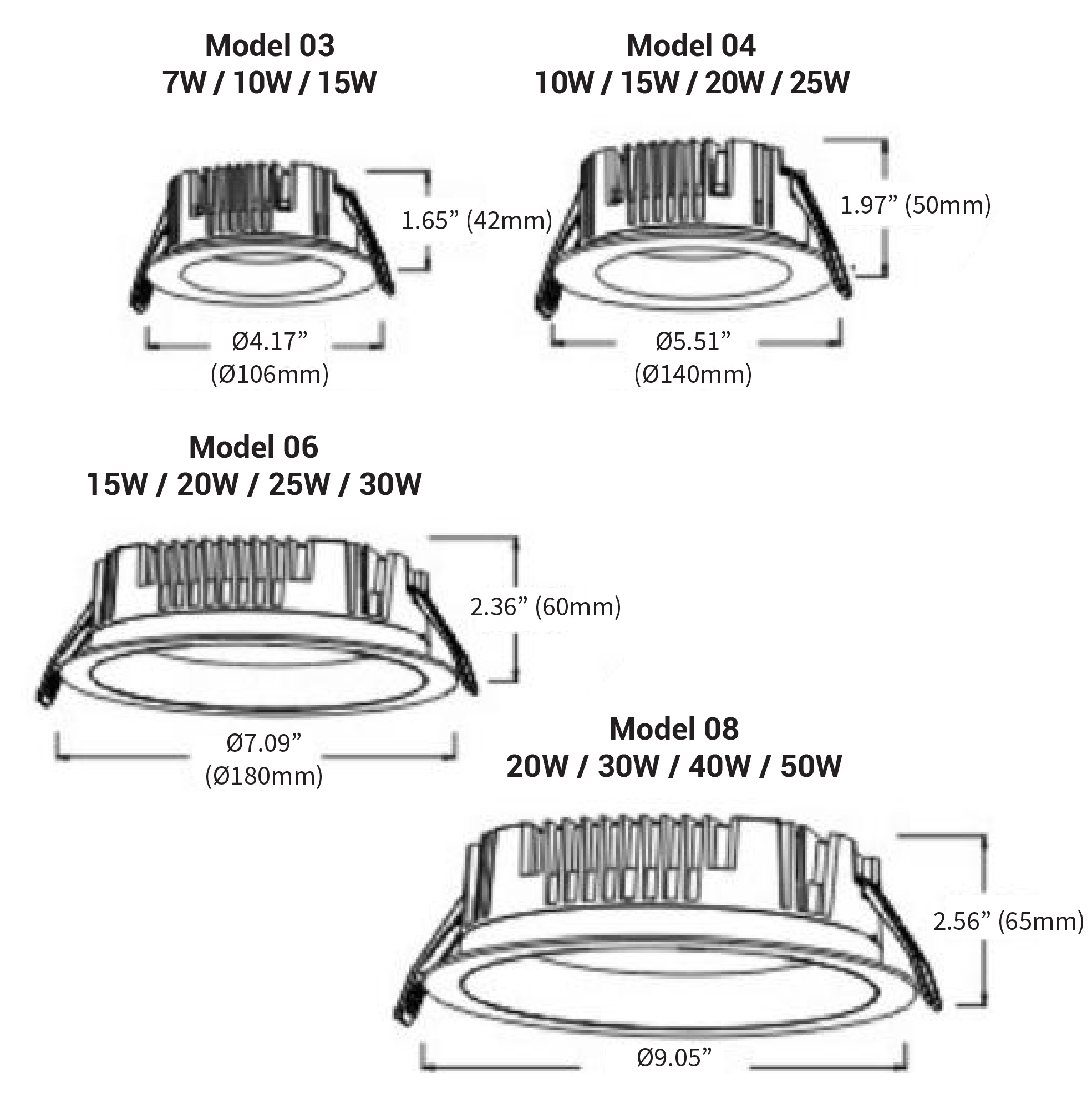

Dimensions

Ø4.17 x 1.65”/ Ø5.51 x 1.97“ / Ø7.09 x 2.36” / Ø9.05 x 2.56” Ø106 x 42mm / Ø140 x 50mm / Ø180 x 60mm / Ø230 x 65mm

Body Finish

White ring + Grey, Ash silver

Supply Voltage

120V AC / 220-230V AC

Connection

OUTDOOR RATED CONNECTIONS

Lamp Life

50,000 Hrs

Light Source

Samsung (SMD) / Philips (COB)

Body Material

ALUMINUM

Max Daisy Run

ON/OFF; DALI; TRIAC; 0-10V

Cutting Increments

Ø3.54” / Ø4.72” / Ø6.3” / Ø7.87”
