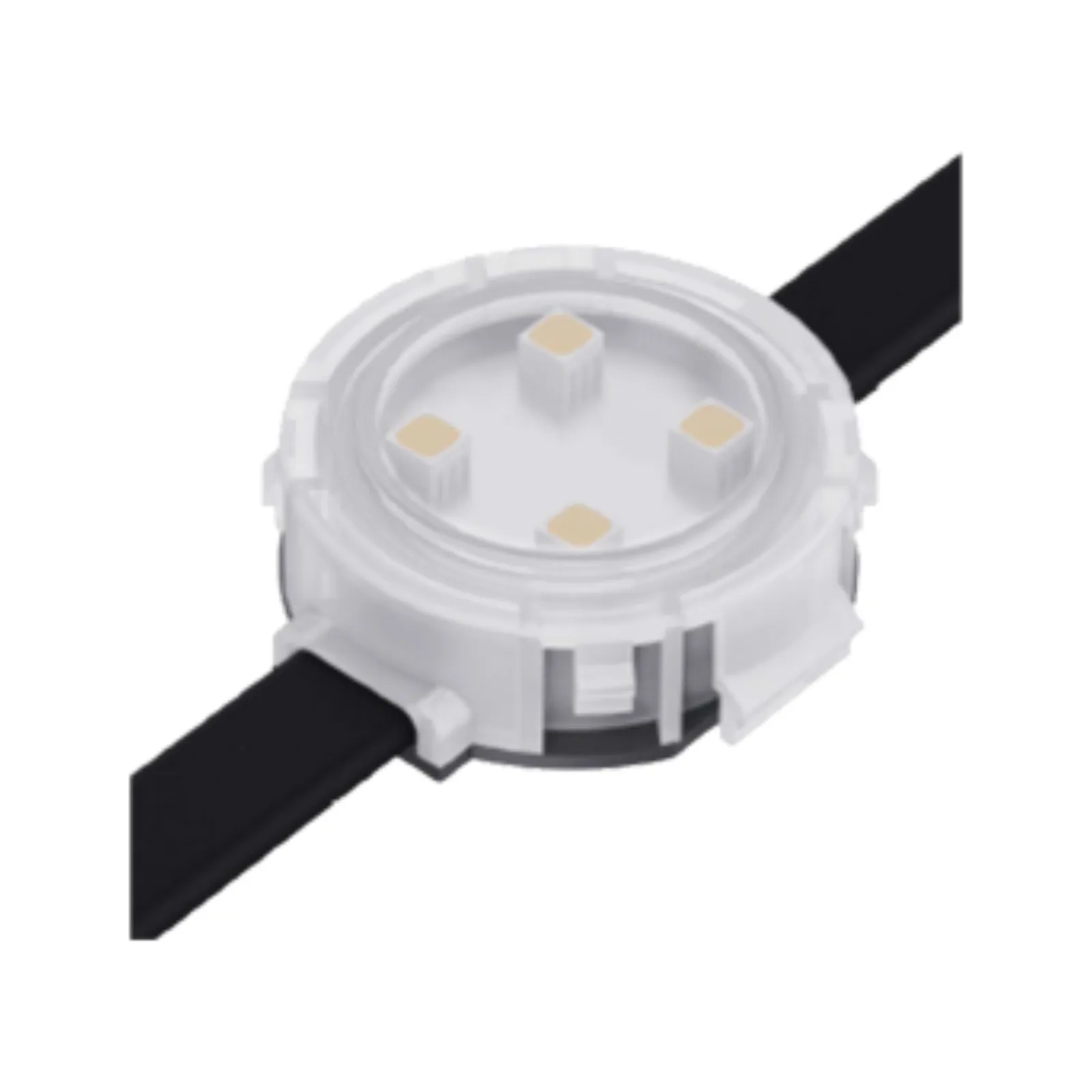

DPXL-RDO35 Mono

PIXL Dot Pixel series is a big size media pixel intelligent LED, with transparent shape cover, low power consumption, long operation life in excess of 50,000 hours. Easy to install and configure into any conceivable shape, SMART PXL dots create spectacular, crisp lighting effects while adding a stylish design element to your venue or installation chose between default options and custom items. Various customization option include LED color(RGB, Warm white or cold white); pixel pitch, flexible mounting capability, accommodate a variety of irregular surfaces. IP67-rated, anti- UV polycarbonate housing for outdoor application (Video wall, Curtain wall, Feature wall, Logo, Signage and 3-dimensional shapes).

Rated Power

1.4 W/Node

Delivered Lumen

70 lm/W

Led Color

2700/3000/4000/5000/6000K

Cri

90

Beam Angle

120°

Ip Rating

IP67

Mounting

SURFACE MOUNTED

Dimensions

35x12.4 mm

Body Finish

BLACK,WHITE,GREY

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DMX

Dimming

NON DIMMABLE,DMX

Lamp Life

50,000 Hrs

Light Source

EPISTAR

Body Material

Polycarbonate
