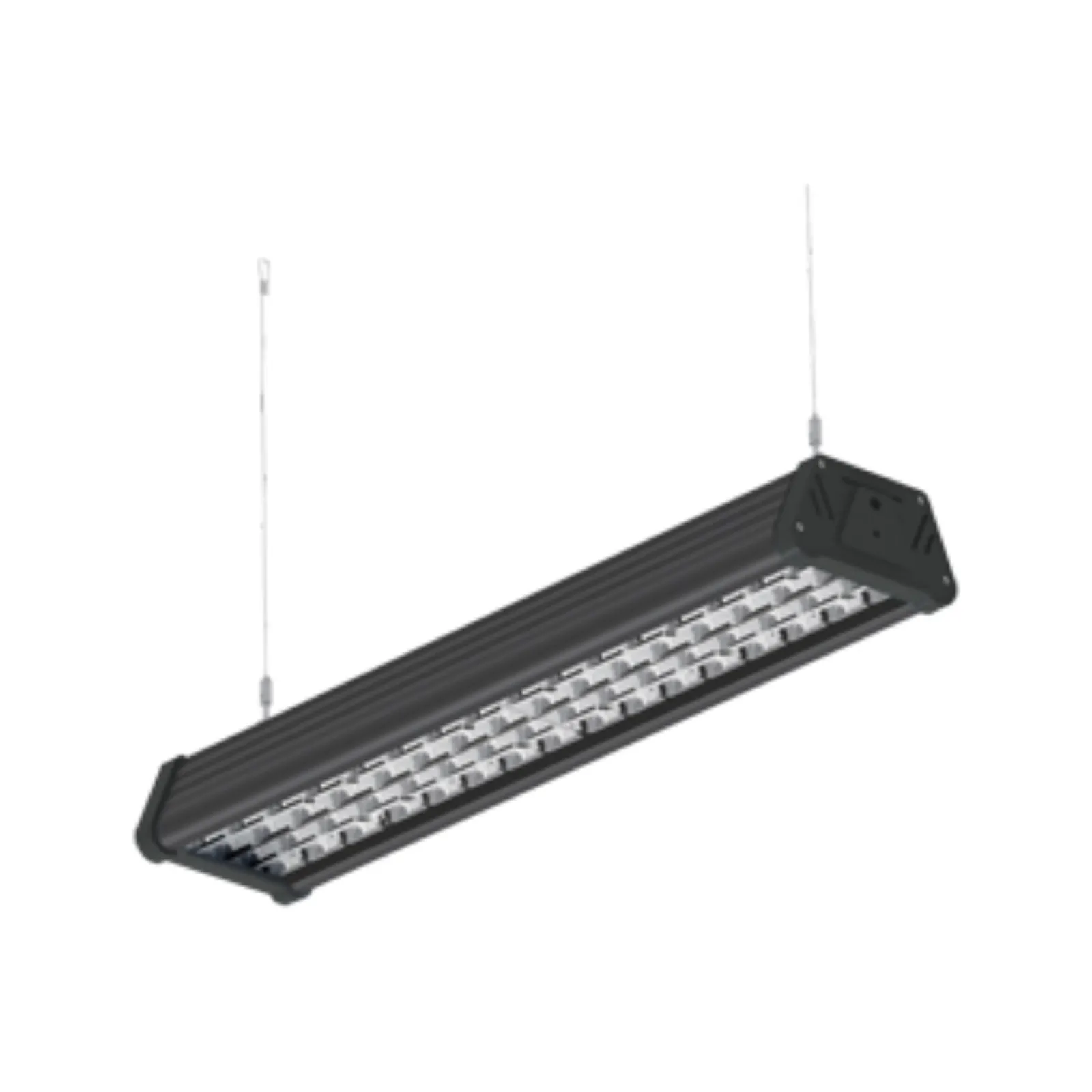

FALCON A SERIES

PIXL Falcon series LED High Bay Light is energy efficient and highly powerful lighting sources for rooms with high ceilings. These IP65 rated luminaire are perfect for commercial and industrial ceilings because it illuminate a huge amount of space. It is with advanced cooling-fin structure for excellent heat dissipation and is also equipped with heat resisting optic parts. The lights create powerful illumination at a long range and are made to enhance visibility and focus light more directly than traditional incandescent fixtures. These fixtures are mainly applicable in areas like factories, warehouse, high rooms, halls, exhibition and showrooms.

Rated Power

100 (2ft) /120 (3ft) /150 (3ft) /200 (4ft) W

Delivered Lumen

140 lumen/watt (Normal Output) 160 lumen/watt (High Output)

Led Color

3000/4000/5000/6000K

Cri

80+

Beam Angle

40X110°/60X90°

Ip Rating

IP65

Mounting

Surface / Suspended Mounting

Dimensions

623 x 138 x 73 x 104mm, 923 x 138 x 73 x 104mm, 1223 x 138 x 73 x 104mm

Body Finish

BLACK

Supply Voltage

100-277V AC

Connection

INDOOR & OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

1-10V DALI MOTION SENSOR DAYLIGHT SENSOR EMERGENCY ZIGBEE WIRELESS CONTROL

Dimming

1-10V, DALI, MOTION SENSOR, DAYLIGHT SENSOR, EMERGENCY, ZIGBEE WIRELESS CONTROL

Lamp Life

50,000 Hrs

Lens Options

PC

Light Source

TCI/OSRAM/BRIDGELUX/TRIDONIC

Body Material

ALUMINUM
