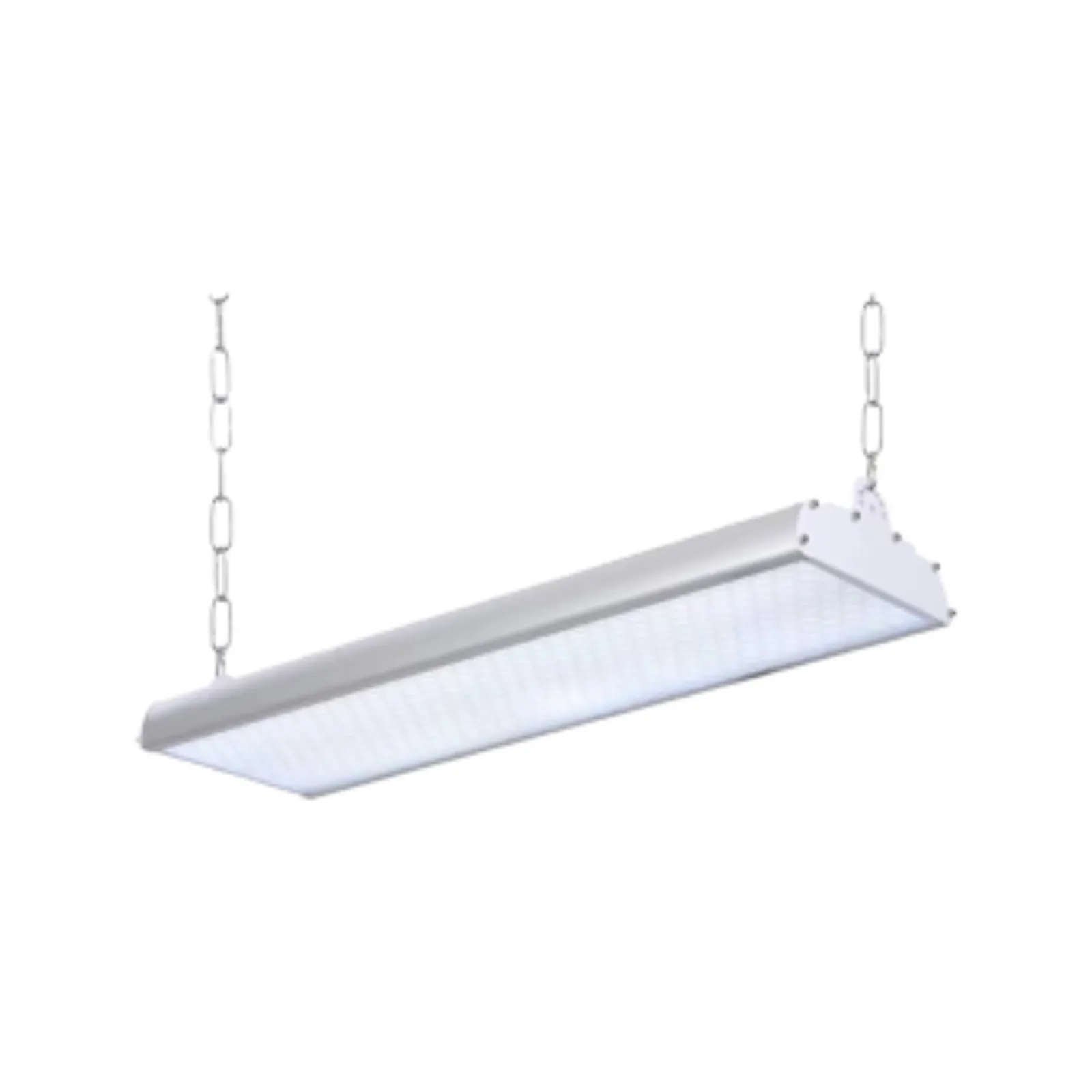

FALCON E SERIES

Falcon E series lowbay features linear profile to cover lighting of larger open space and aisle applications. Constructed in high quality extruded aluminum structure for excellent thermal performance with polycarbonate diffuser as optic to provide soft and comfortable illumination. Application areas include; sports hall, gymnasium, multipurpose halls, industrial spaces, warehouse applications.

Rated Power

50W, 80W, 100W, 140W, 150W, 200W, 300W, 450W

Delivered Lumen

145 lm/W

Led Color

3000/4000/5000/5700K

Cri

80+, 90

Beam Angle

90°

Ip Rating

IP20

Mounting

Surface mounted, Suspended mounted with Chain and Wire rope

Dimensions

300 x600, 1200mm

Body Finish

WHITE

Supply Voltage

100-277V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; DALI

Notes

MacAdam : 3SDCM; 2SDCM (On request)

Lamp Life

L80 B10, 100,000hrs

Light Source

PHILIPS / EPISTAR / NICHIA / SAMSUNG / LUMILEDS / BRIDGELUX / OSRAM
