FLEX GRAZER CURVE COLOR

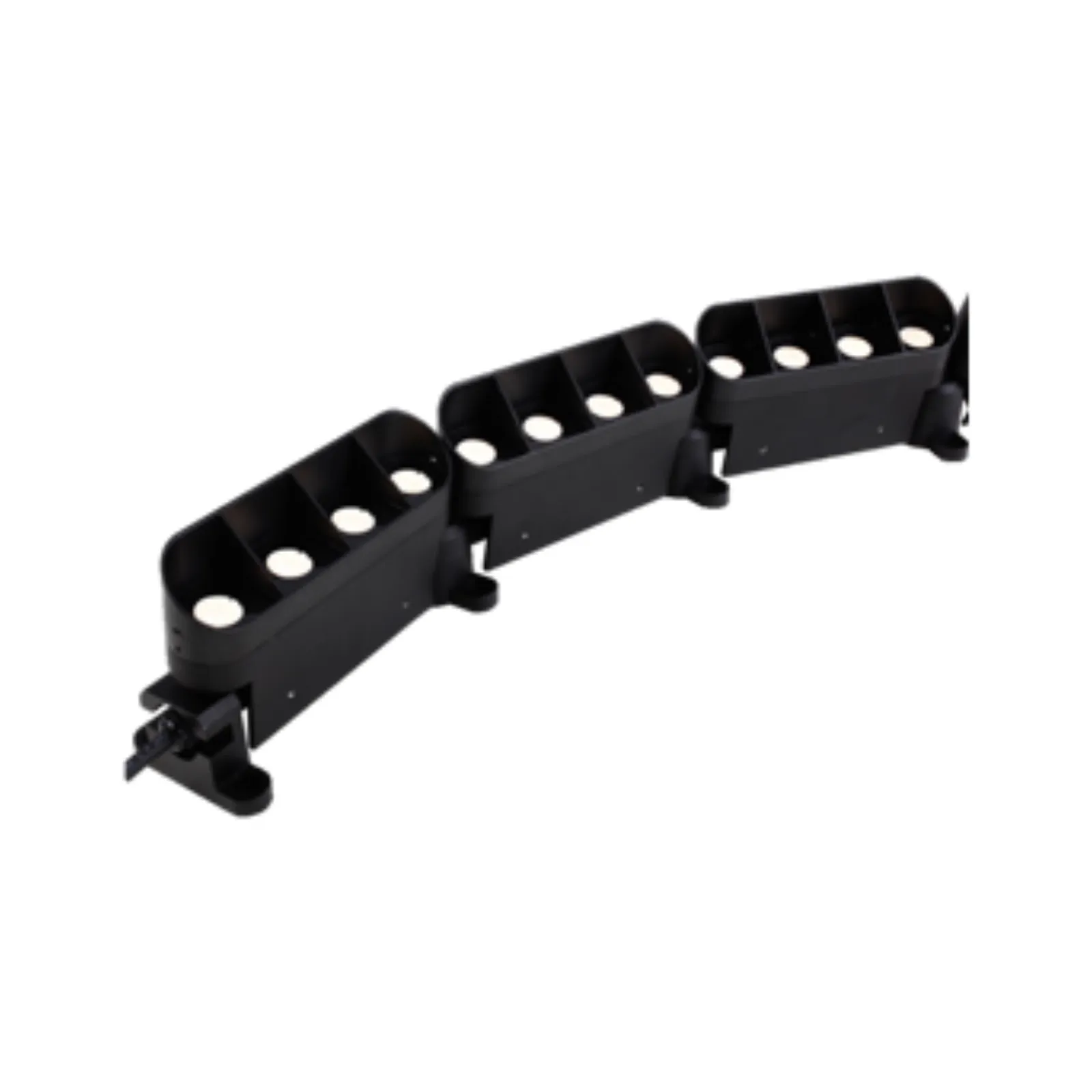

The PIXL Flex Grazer Curve Color is a high-performance, exterior-grade architectural façade linear floodlight that features a horizontally and longitudinally adjustable axis, making it suitable for conical or curved façades. The luminaire boasts excellent optics and comes with various beam angle options. With its 180mm compact module design, it can be widely applied to any building features that require highly controlled lighting effects for wall grazing and wall washing. This is especially useful for cases where the building surfaces have non-linear, curved profiles and facades. Up to six 180mm long modules can be daisy-chained in a continuous string, considering the weight of the connected light fixture modules to ensure ease of handling. The luminaire is supplied with an internal DMX to PWM Decoder and external constant voltage LED drivers in a weatherproof enclosure, and to be DMX controlled. A maximum of 6 modules can be powered from a single 48V DC 100W LED power supply

Rated Power

12W/Module

Delivered Lumen

1656lm (36W) 3312lm (72W)

Led Color

RGBW 3000°K, RGBW 4000°K, RGBW 6500°K

Cri

80, 90

Beam Angle

10°, 20°, 40°, 60°, 15°x50°

Ip Rating

IPIP66

Mounting

SURFACE MOUNT

Dimensions

166 x 76mm

Body Finish

BLACK, WHITE, GREY

Supply Voltage

220-240V AC, 100W 48V DC external PSU

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DMX512 RDM

Notes

SDCM : 3 MacAdam

Lamp Life

50,000 Hrs

Light Source

OSRAM

Body Material

DIE-CAST ALUMINUM
