FLEX GRAZER CURVE MONO

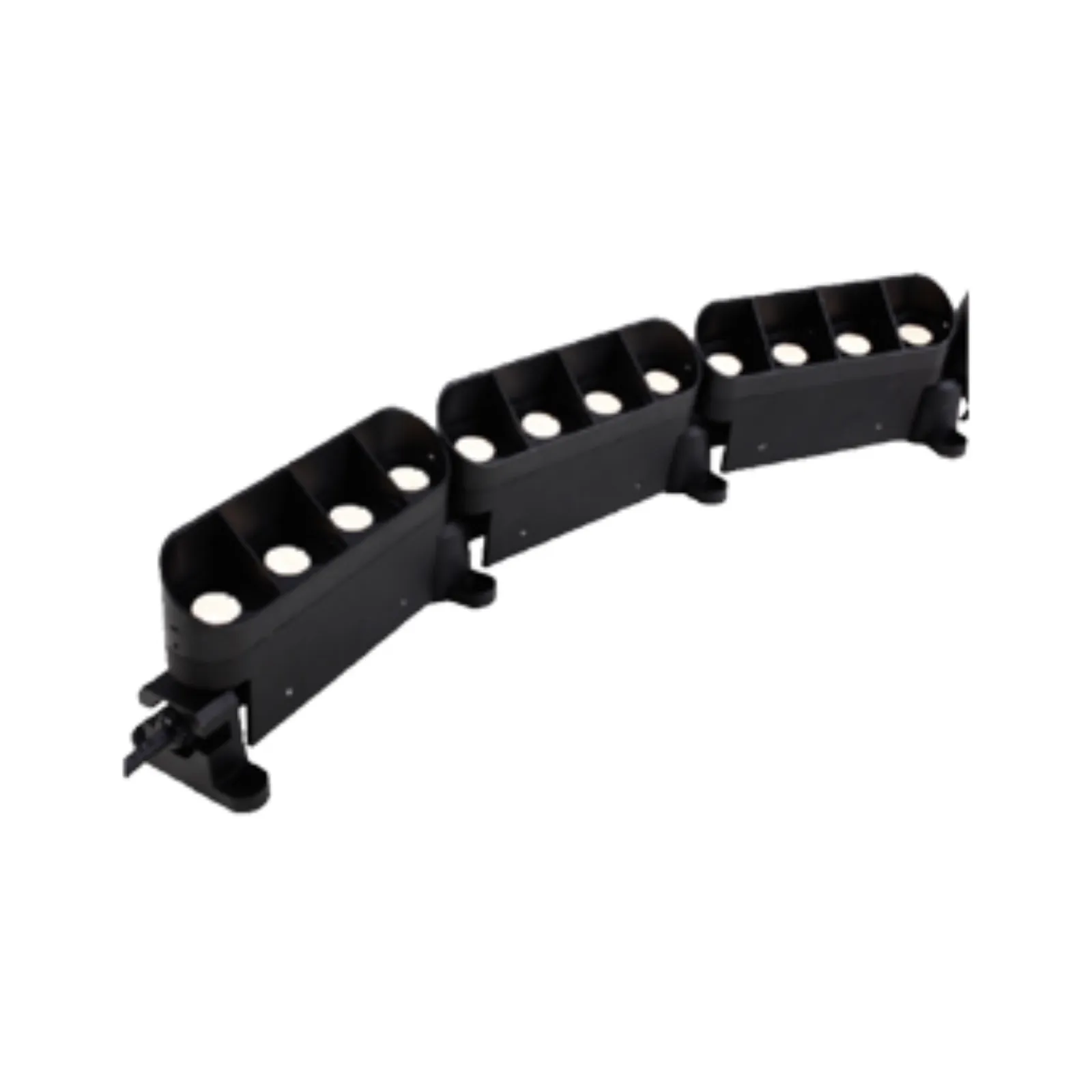

The PIXL Flex Grazer Curve Mono is a high-performance, exterior-grade architectural façade linear floodlight that features a horizontally and longitudinally adjustable axis, making it suitable for conical or curved façades. The luminaire boasts excellent optics and comes with various beam angle options. With its 180mm compact module design, it can be widely applied to any building features that require highly controlled lighting effects for wall grazing and wall washing. This is especially useful for cases where the building surfaces have nonlinear, curved profiles and facades. Up to six 180mm long modules can be daisy-chained in a continuous string, considering the weight of the connected light fixture modules to ensure ease of handling. The luminaire is supplied with external constant current LED drivers in a weatherproof enclosure, either switched or DALI dimmable. A maximum of 6 modules can be powered from a single Tridonic 60W constant current LED driver.

Rated Power

8W/Module

Delivered Lumen

2160lm (24W) @ 3000K 4320lm (48W) @ 3000K

Led Color

2700/3000/3500/4000/5000/5700/6500K

Cri

80, 90

Beam Angle

10°, 20°, 40°, 60°, 15°x50°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

166 x 76mm

Body Finish

BLACK, GREY, WHITE

Supply Voltage

220-240V AC, 1200mA constant current external driver

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI

Notes

SDCM : 3MacAdam

Lamp Life

50,000 Hrs

Light Source

OSRAM

Body Material

DIE-CAST ALUMINUM
