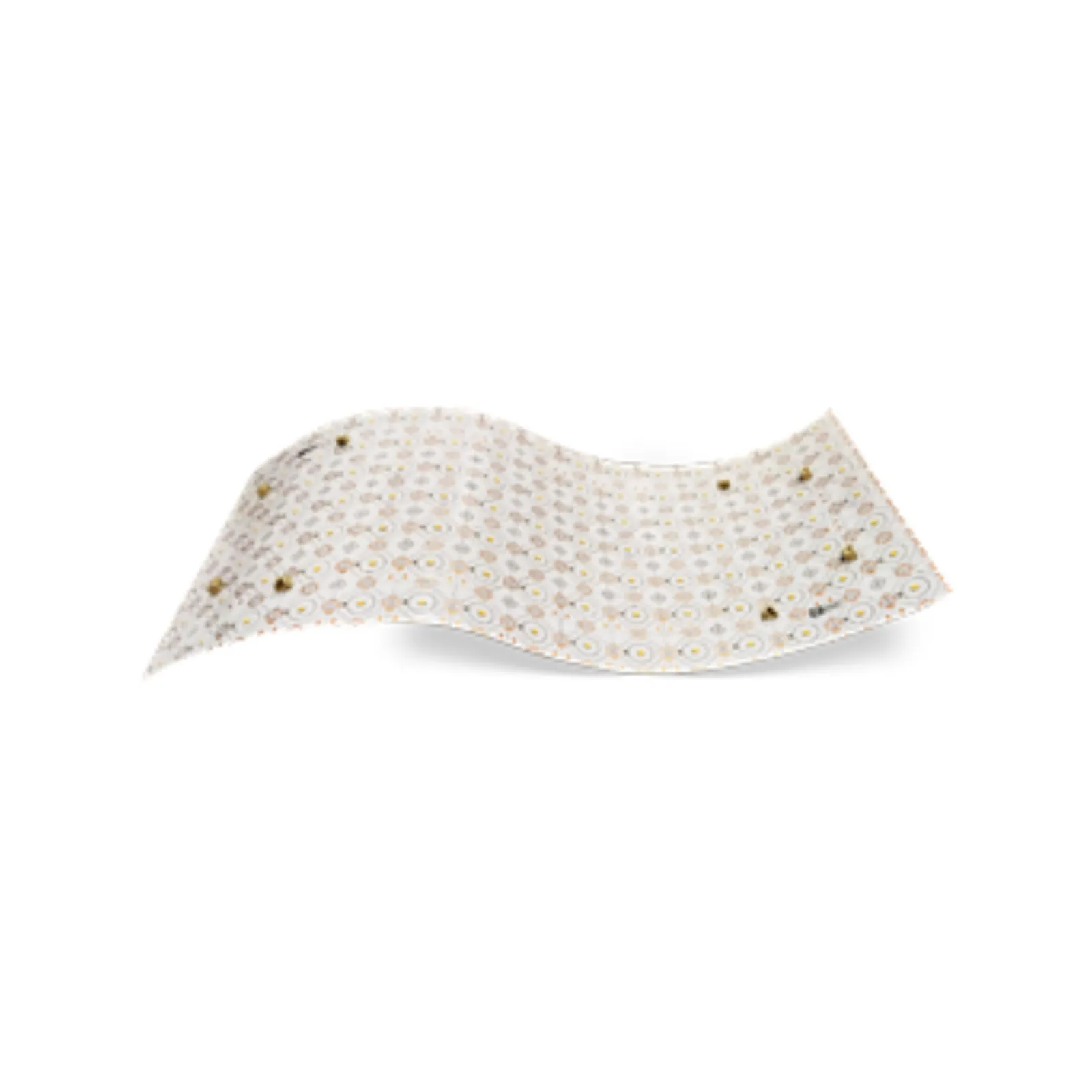

FLEX PANEL LED

PIXL LFX Flex panel are specifically engineered to be a dimmable, field customizable solution for backlighting translucent materials and provides extremely uniform illumination. The flexible panel can be folded and shaped to suit project needs. Its unique power distribution grid allows group or single LEDs to be cut from the flexible sheet while maintaining a resilient circuit to all remaining LEDs. Its versatile design help us to use in both indoor and outdoor environments.

Rated Power

24W/Sheet

Delivered Lumen

1950lm/sheet (CT2200K) 2056lm/sheet (CT2700K) 2150lm/sheet (CT3000K) 2280lm/sheet (CT3500K) 2400lm/sheet (CT4000K) 2520lm/sheet (CT5000K) 2650lm/sheet (CT6500K)

Led Color

2200/2700/3000/3500/4000/5000/6000K

Cri

90+

Ip Rating

IP20,54

Dimensions

480 x 240 mm

Supply Voltage

24V DC

Notes

PCB TYPE : Flexible PCB CONNECTOR : 2-pin connection blocks per sheet located for easy connection between sheets-12Nos LED WIRE SIZE : 20 AWG LEAD CONNECTOR WIRE : 1 Meter lead wire included per sheet-1Nos JUMPER CONNECTOR WIRE : 95 mm jumper cable included per sheet-2Nos

Wiring

Upto 4 sheets can be powered with one lead input Interconnection jumper cable for sheet to sheet connection included

Led Quantity

128 LEDs/Sheet

Light Source

SMD LED
