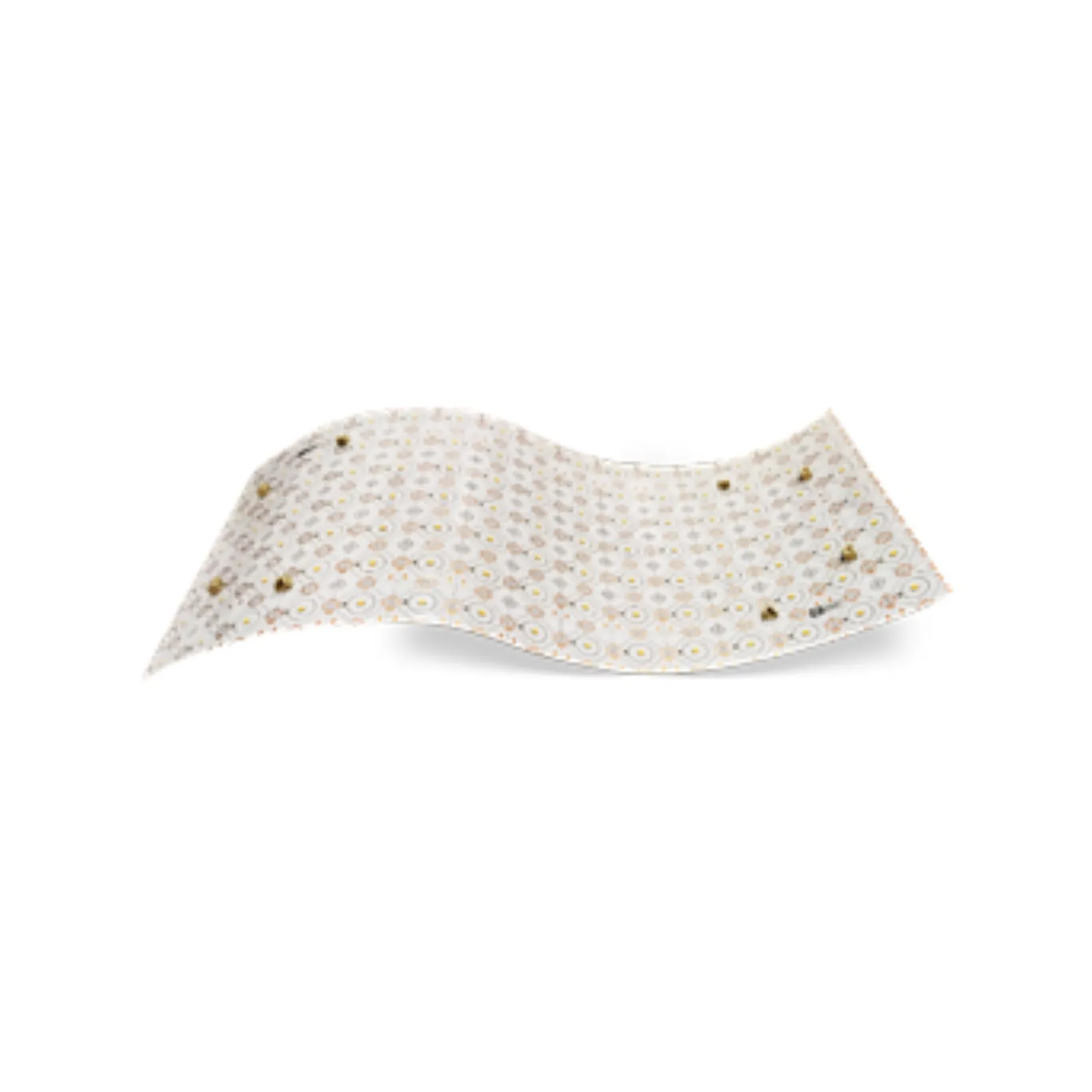

LFX FLEX PANEL

PIXL LFX Flex panel are specifically engineered to be a dimmable, field customizable solution for backlighting translucent materials and provides extremely uniform illumination. The flexible panel can be folded and shaped to suit project needs. Its unique power distribution grid allows group or single LEDs to be cut from the flexible sheet while maintaining a resilient circuit to all remaining LEDs. Its versatile design help us to use in both indoor and outdoor environments.

Rated Power

3 W/sheet

Delivered Lumen

2200K (218 lm/sheet) 2700K (245 lm/sheet) 3000K ( 260 lm/sheet) 3500K (270 lm/sheet) 4000K (285 lm/sheet) 5000K (290 lm/sheet) 6000K ( 298 lm/sheet )

Led Color

2200/2700/3000/3500/4000/5000/6000 K

Cri

90

Beam Angle

120º

Ip Rating

IP54, IP20

Mounting

3M TAPE ON THE BACK

Dimensions

480 X 240 mm

Body Finish

White

Supply Voltage

24V DC

Driver / Power Supply Details

ON/OFF DALI

Notes

SPACING FOR LEDs : 30mm LED WIRE SIZE : 20AWG LEAD CONNECTOR WIRE : 1 Meter lead wire included per sheet-1Nos JUMPER CONNECTOR WIRE : 95 mm jumper cable included per sheet-2Nos CONNECTOR : 2-pin connection blocks per sheet located for easy connection between sheets-12Nos PCB TYPE : Flexible PCB MCADAM OF LED : 3 Step

Wiring

Upto 16 sheets can be powered with one lead input, Interconnection jumper cable for sheet to sheet connection included

Dimming

DALI

Lamp Life

50,000 hrs

Led Quantity

128 LEDs / Sheet

Light Source

SMD LED

Max Daisy Run

Upto 16 sheets can be powered with one lead input
