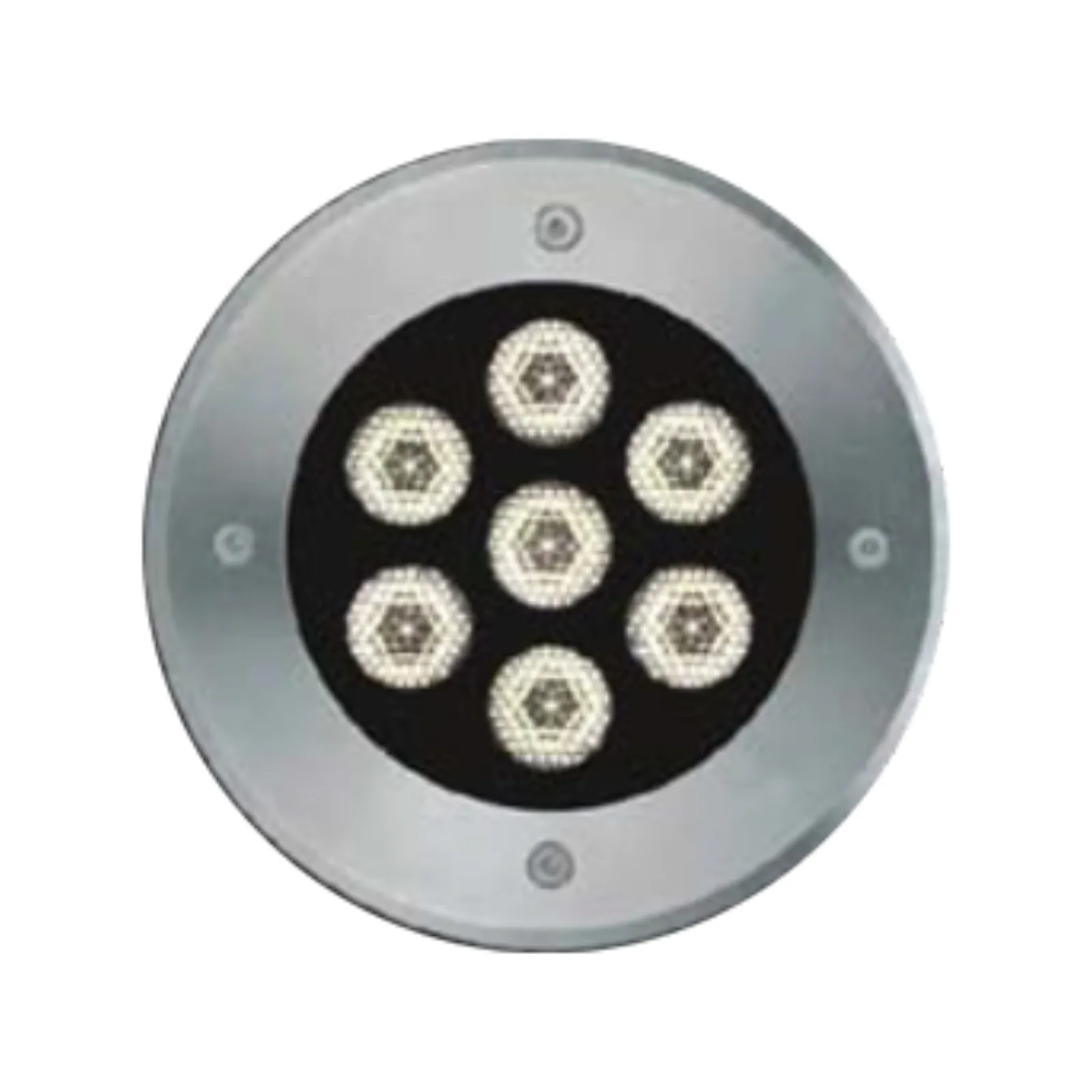

FTR

PIXL Frontier inground lights feature robust construction with body in heavy duty die-cast aluminium and 304/316 marine grade stainless steel frame. High performance adjustable optics with UV resistant antiglare tempered glass lens diffuser render precise beam of light suited for wide range of facade and landscape applications.

Rated Power

3W

Delivered Lumen

90-95lm

Led Color

2700/3000/4000/5000K

Cri

80+

Beam Angle

9°/12°/24°/45°/15°x30°

Ip Rating

IP67/68

Mounting

FLOOR RECESSED

Dimensions

Ø118x93mm

Body Finish

Stainless steel, Black

Supply Voltage

100-277V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DALI; On/Off; 1-10V

Notes

SDCM : SDCM3; SDCM2 (On request) DRIVER OVER : 4000kg@20km/hr

Lamp Life

L90, B10, 65, 000 hrs

Light Source

CREE / OSRAM / LUMILEDS / BRIDGELUX

Body Material

Die cast aluminum body with stainless steel frame
