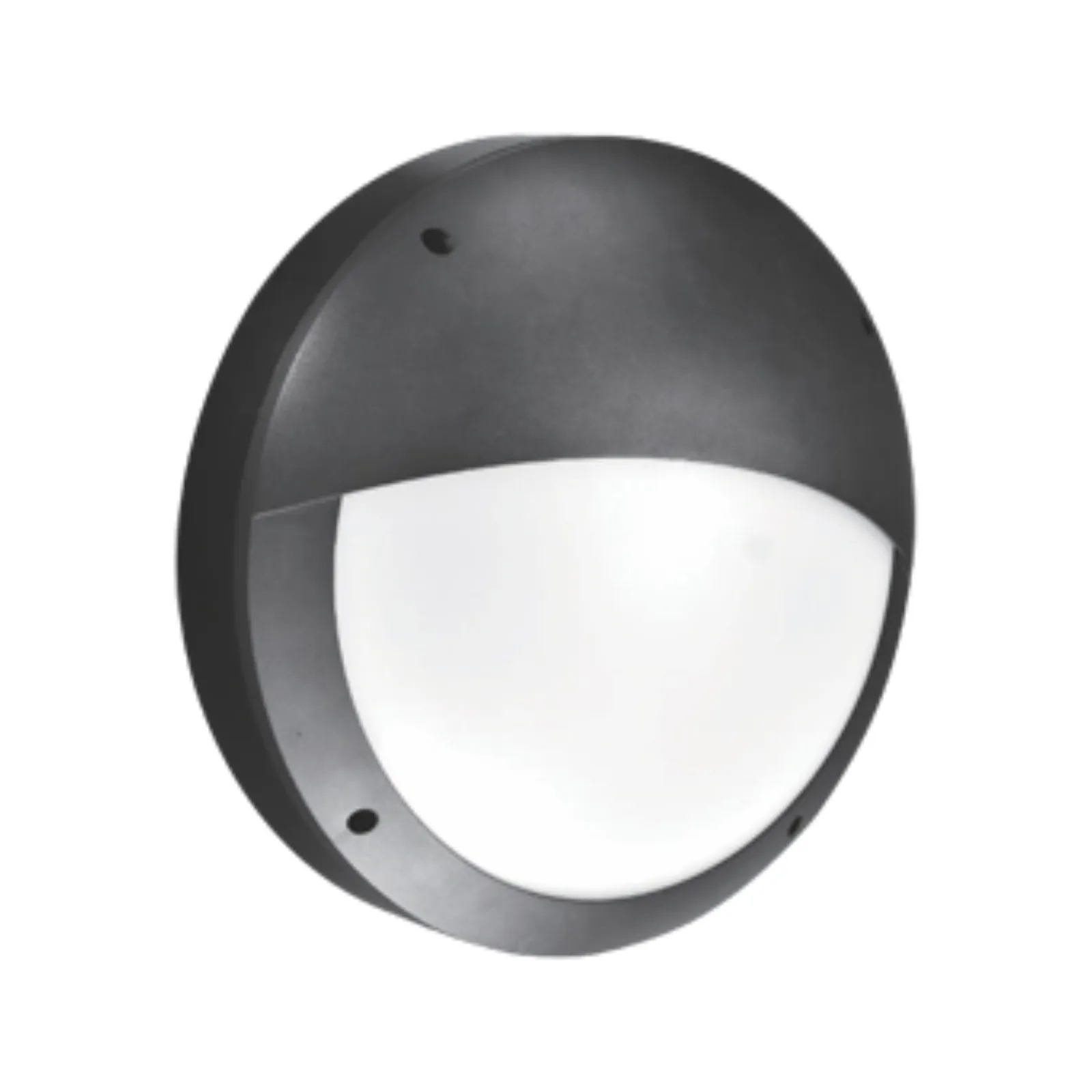

GNT 3B.1

PIXL Garnet is a compact, vandal resistant circular bulkhead with a high efficiency satin polycarbonate cover and strong high pressure die-cast aluminum body. These surface mounted water proof fixtures are high corrosion resistant and is with IP65 ingress protection. It is mainly applicable in internal and external lighting for communal residential buildings, security lighting, roof top, public staircases, pathway highlighting for schools, hospitals, and other public buildings.

Rated Power

10W / 18W

Delivered Lumen

100lm/W

Led Color

3000/4000/5000/6000K

Cri

80+

Beam Angle

120°

Ip Rating

IP65

Mounting

SURFACE MOUNT

Dimensions

350x112mm, 222x73mm

Body Finish

POWDER COATED BLACK, RAL OPTIONS AVAILABLE ON REQUEST

Supply Voltage

200-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF

Options

MS FUNCTION : MICRO-WAVE SENSOR

Lamp Life

50,000 Hrs

Lens Options

OP - OPAL DIFFUSER GL - GLASS

Light Source

EPISTAR

Body Material

DIE-CAST ALUMINUM
