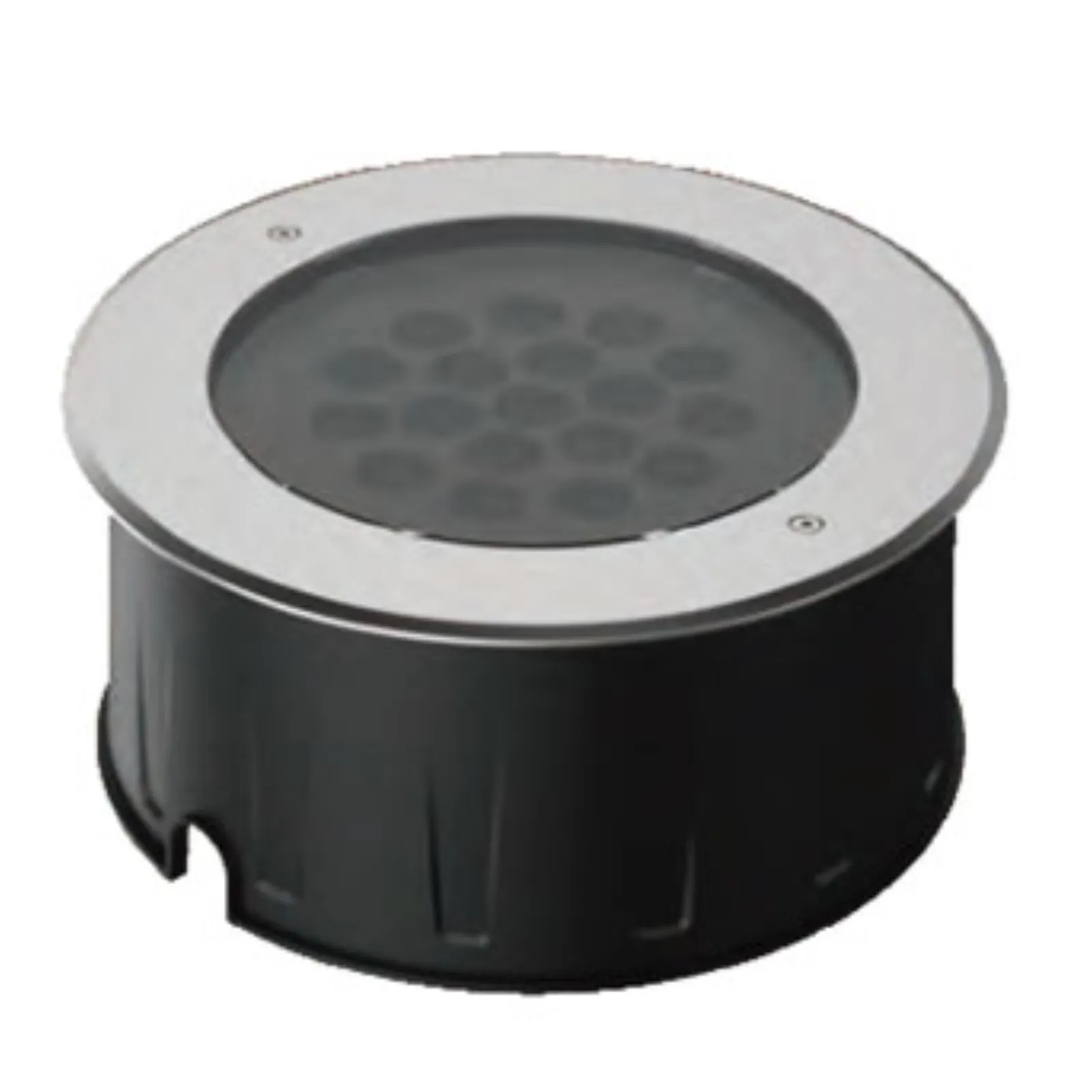

GRAVITY - 562 SERIES

Gravity 562 Series is a high-power Osram LED inground uplight luminaire specially designed for architectural facades and general uplighting. Crafted with a die-cast aluminum Housing, this inground luminaire offers exceptional durability with an IP68 (not for underwater use) and IK10 rating, as well as drive-over capability up to 5000kg @ 20km/hr. A wide range of lighting solutions, accentuating trees, buildings, and walls with dramatic highlighting. With superior finishing and high efficiency, this exterior inground uplight delivers soft and uniform illumination, seamlessly blending into the surrounding space to maximize its aesthetic appeal. Featuring highquality optical systems and direct lighting capabilities, this product achieves the desired effect in various applications. RGBW version is also available in one wattage and beam angle.

Rated Power

12W, 30W, 36W

Delivered Lumen

660 ~ 750lm @ 30W RGB 792 ~ 900lm @ 36W RGB 30lm/W- RGBW

Led Color

RGB/RGBW

Beam Angle

7°, 15°, 30°, 45°, 60°, 15° x 60°

Ip Rating

IP67

Dimensions

Ø260 x 119mm

Body Finish

BLACK

Supply Voltage

24V DC / 220-240V AC

Dimming

DMX

Light Source

CREE/LUMILEDS/CITIZEN

Body Material

STAINLESS STEEL
