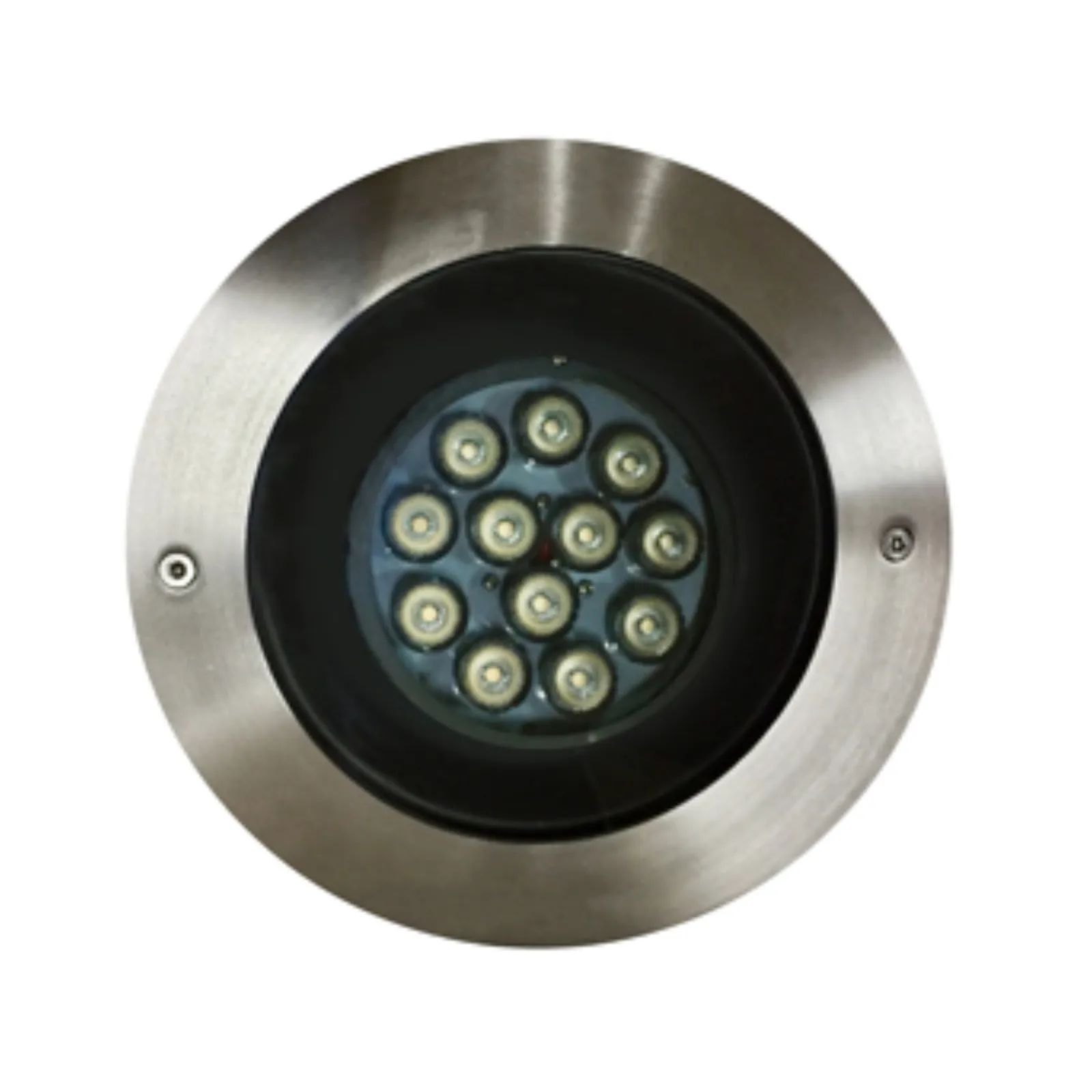

GMSS

Gravity Maxi Stainless Series is a high-power Osram LED inground uplight luminaire specially designed for architectural facades and general uplighting. Crafted with a full 316 Marine Grade Stainless Steel Flange and Housing, this inground luminaire offers exceptional durability with an IP68 (not for underwater use) and IK10 rating, as well as drive-over capability up to 5000kg @ 20km/hr. The product allows a 0° to 15° internal Tilt angle in either direction of the optical assembly and provides a wide range of lighting solutions, accentuating trees, buildings, and walls with dramatic highlighting. With superior finishing and high efficiency, this exterior inground uplight delivers soft and uniform illumination, seamlessly blending into the surrounding space to maximize its aesthetic appeal. Featuring high-quality optical systems and direct lighting capabilities, this product achieves the desired effect in various applications. RGBW version is also available in one wattage and beam angle.

Rated Power

12 / 16 / 24W

Delivered Lumen

1275lm (3000K) @ 12W 1700lm (3000K) @ 16W 2550lm (3000K) @ 24W 1700lm (RGBW) @ 24W

Led Color

2700/3000/4000/5000K/RGBW

Cri

85

Beam Angle

15°/ 25°/ 28°/ 45°/ 60°

Ip Rating

IP68

Mounting

FLOOR RECESSED

Dimensions

Ø243 x 280mm

Body Finish

Polished Stainless Steel, Brushed Stainless Steel

Supply Voltage

220-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI DMX512

Notes

MacAdam : 2-Step

Lamp Life

50,000 Hrs

Light Source

CREE / LUMILEDS / CITIZEN

Body Material

316 Marine grade stainless steel frame, Body and housing
