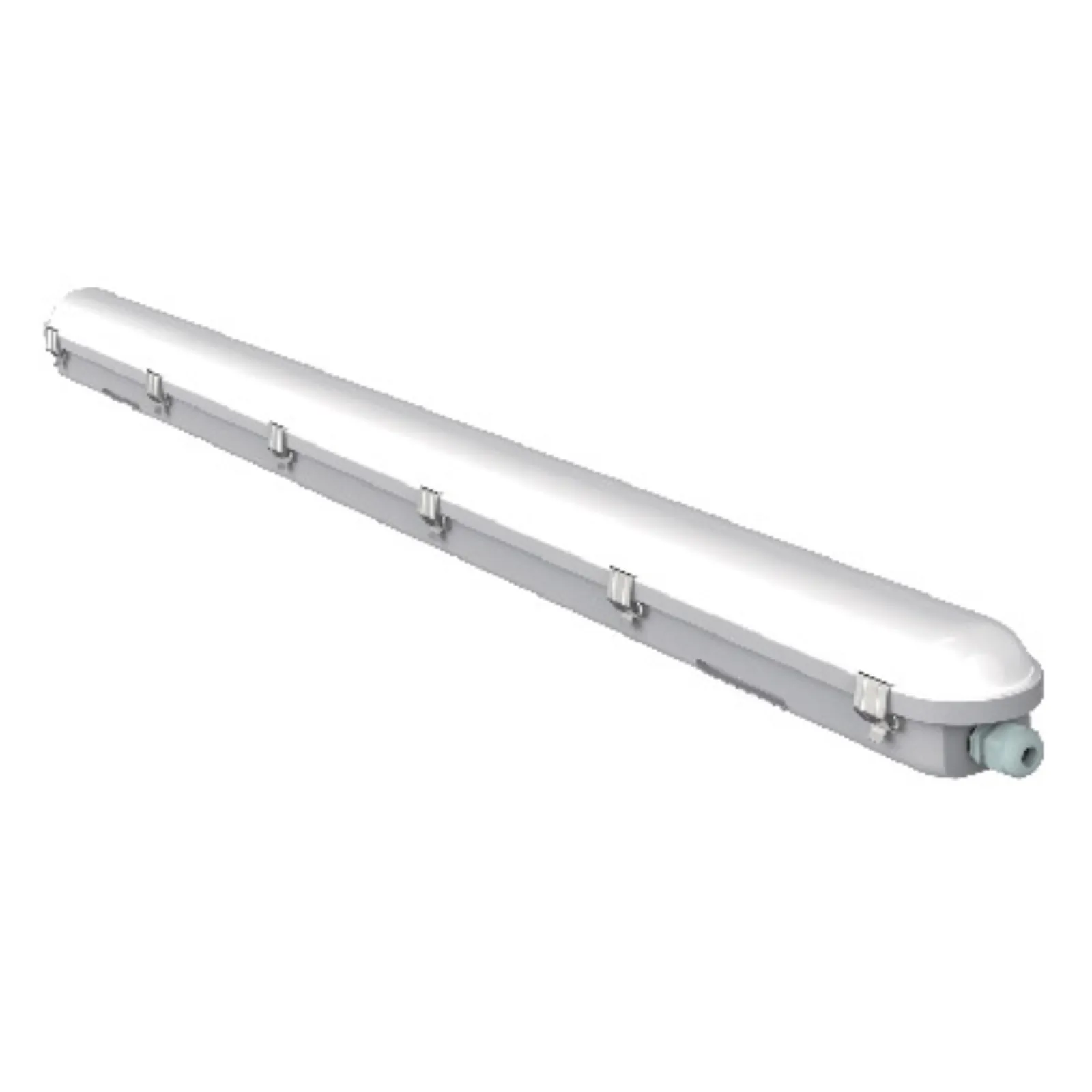

HERMETIC 125

PIXL Hermetic is a tough and corrosion resistant surface/suspension mounted weatherproof luminaire suitable for application areas of high humid and dusty atmospheres. HMT1 is made of die-cast aluminum housing and a thick injection moulded polycarbonate cover, ensuring IK08 impact resistance. Wide beam optic and high efficiency makes it the best choice for use in garages, factories etc.

Rated Power

10W, 15W, 20W, 30W, 40W, 50W, 60W, 75W

Led Color

3000/4000/5000/6000K

Cri

80, 90

Beam Angle

120°

Ip Rating

IP65

Mounting

SURFACE MOUNT

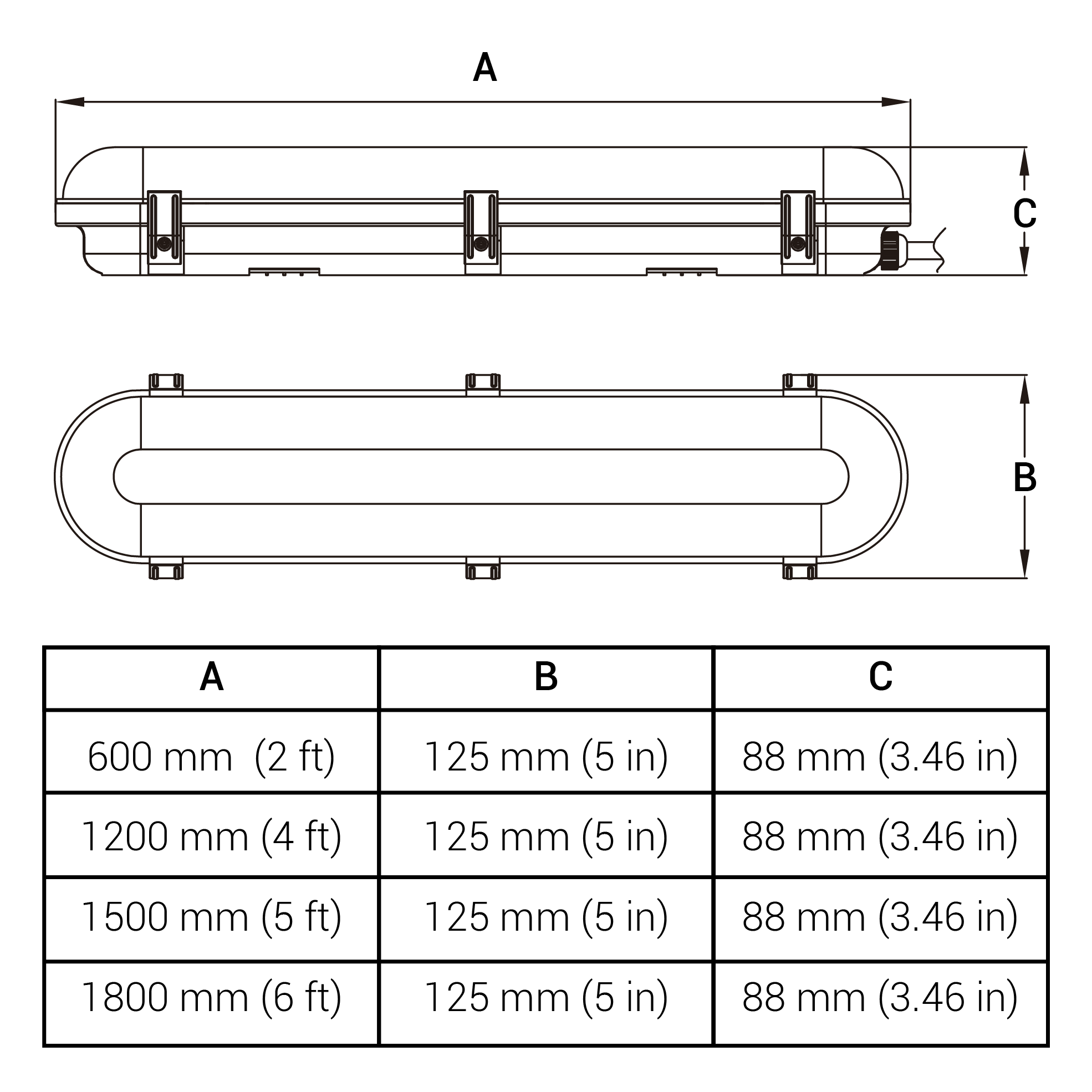

Dimensions

600 mm (2 ft) / 1200 mm (4 ft) / 1500 mm (5 ft) / 1800 mm (6 ft), 125 mm (5 in), 88 mm (3.46 in)

Supply Voltage

200 - 240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

Switch (On/Off) 1-10V dimming DALI Micro-wave Sensor

Ik Rating

IK08

Lamp Life

50,000 Hrs

Light Source

SMD 2835
