ILM-1

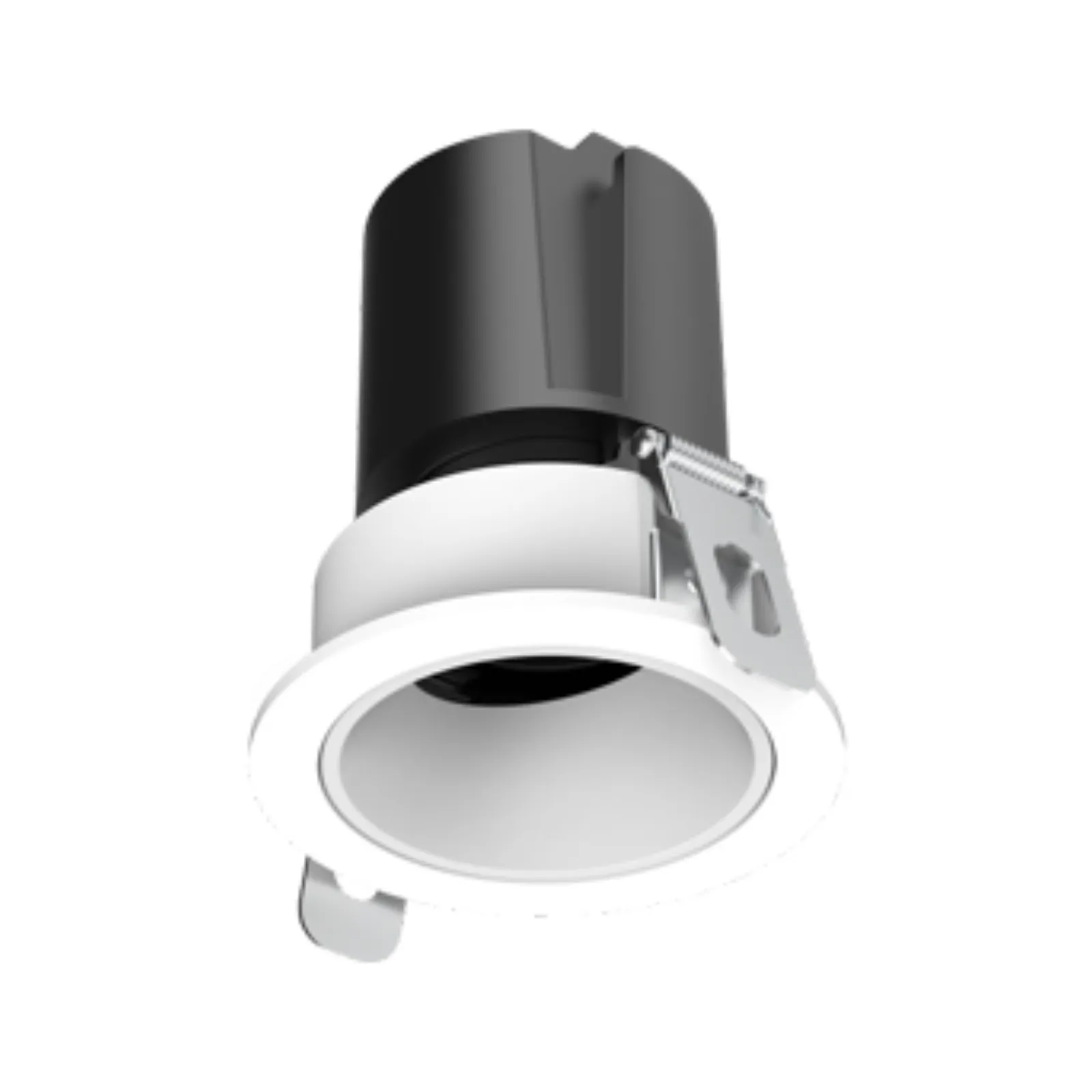

PIXL Illumi Downlights are high-quality LED architectural recessed downlights designed to illuminate your space with brilliance, high output, and efficiency. They can be used as either fixed or adjustable LED downlights in the same product, making them versatile for various applications such as high ceiling areas, feature walls, and display lighting. These cutting-edge lighting solutions are perfect for hospitality, residential, commercial, and industrial installations. With advanced LED technology, our downlights offer exceptional energy savings and a long lifespan, making them a smart and sustainable choice. They include 2- step or 3-step McAdam binning and high-performance optics, providing LED color temperature ranges from 2700K to 6500K. Our downlights are compatible with all dimming protocols and conform to international standards and directives. They feature a sleek and modern heat sink design, which effectively dissipates heat, ensuring optimal performance and durability even during extended use. Experience superior lighting performance that enhances your space with bright, consistent, and flickerfree illumination with our Illumi LED Downlights.

Rated Power

3 / 5 / 6 / 7W

Delivered Lumen

238lm (3W) @ CRI80 415lm (5W) @ CRI80 476lm (6W) @ CRI80 555lm (7W) @ CRI 80 185lm (3W) @ CRI90 305lm (5W) @ CRI90 365lm (6W) @ CRI90 485lm (7W) @ CRI90

Led Color

2700/3000/4000/5000/6500K

Cri

80, 90

Beam Angle

15°/ 24°/ 38°/ 55°

Ip Rating

IP20

Mounting

CEILING RECESSED

Dimensions

Ø65 x 80mm (Cutout Ø55mm)

Body Finish

WHITE, BLACK

Supply Voltage

9V DC / 36V DC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI

Lamp Life

50,000 Hrs

Lens Options

REFLECTOR FINISH : Black; White; Silver; Matt Black; Matt; White; Matt Silver; Black Chrome; Rose Gold; Champagne Gold SDCM : SDCM 3 (CRI80) ; SDCM 2 (CRI90)

Light Source

CREE

Body Material

ALUMINIUM
