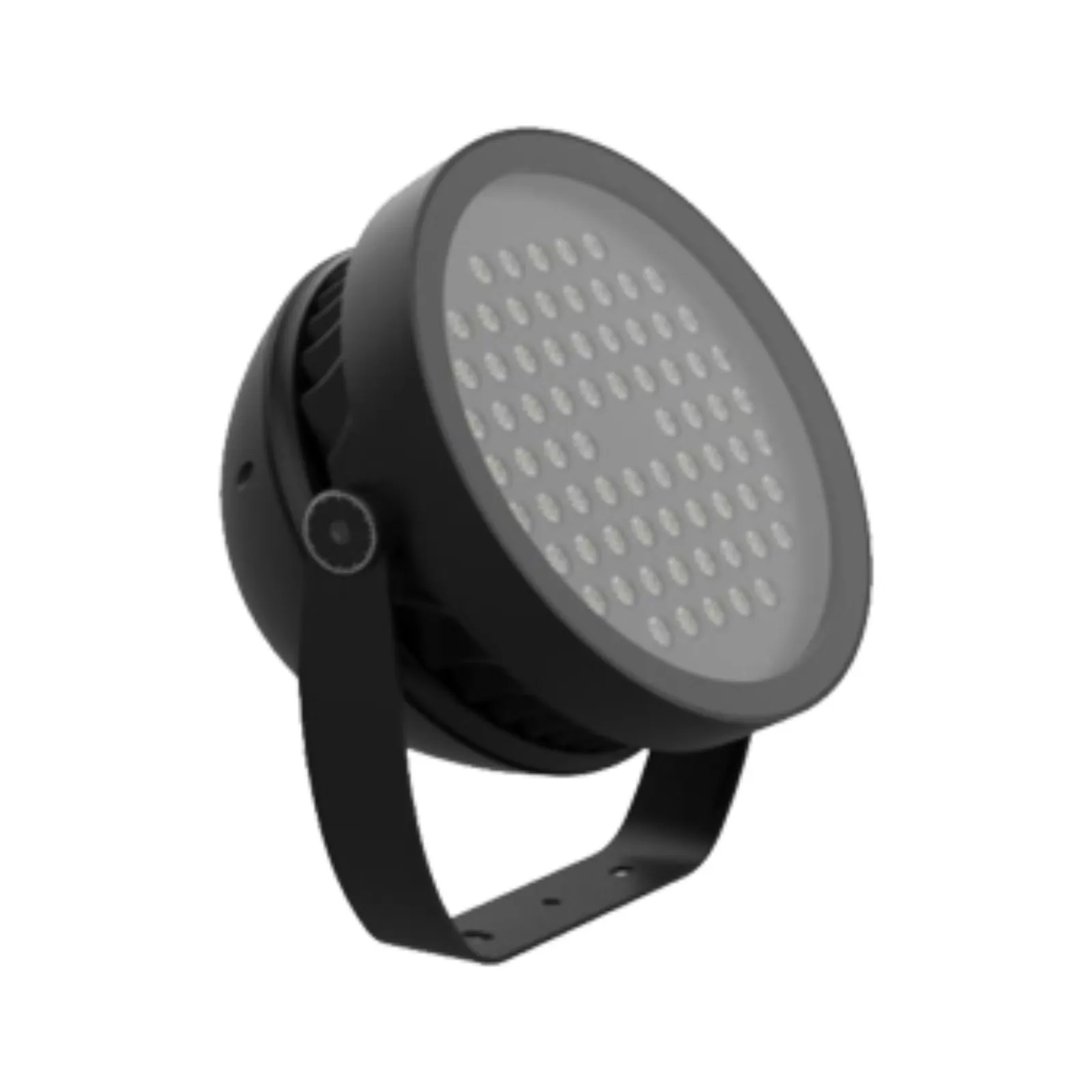

LFL-R-150 MONO

PIXL LFL-R is a type of high efficiency LED with 94% light transmittance which is combined to achieve long-distance accurate projection. The design of separate structure of the optical cavity and driver with good heat dissipation reduce the ambient temperature of driver and maintain the product components stability, thus it ensures product longer lifespan. Here we use the black light technology which means a deep-hidden anti-glare design is developed to achieve dual anti-glare purpose. This IP66 rated fixture is with 0-360° rotatable rackets, precisely adjustable dial, and safety self-locking structure design. These lights are mainly used in outdoor landscape, building advertising, inside or outside of building, etc.

Rated Power

150W

Led Color

2700/3000/4000/5000/5700/6500K

Cri

80+

Beam Angle

8°/15°/30°/45°/60°/15°x60°/20°x40°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

376(L)x204(W)x424mm(H)

Body Finish

BLACK,WHITE,GREY

Supply Voltage

220V AC, 24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; DALI

Lamp Life

50,000 Hrs

Led Quantity

60 Nos:

Light Source

OSRAM

Body Material

ALUMINUM
