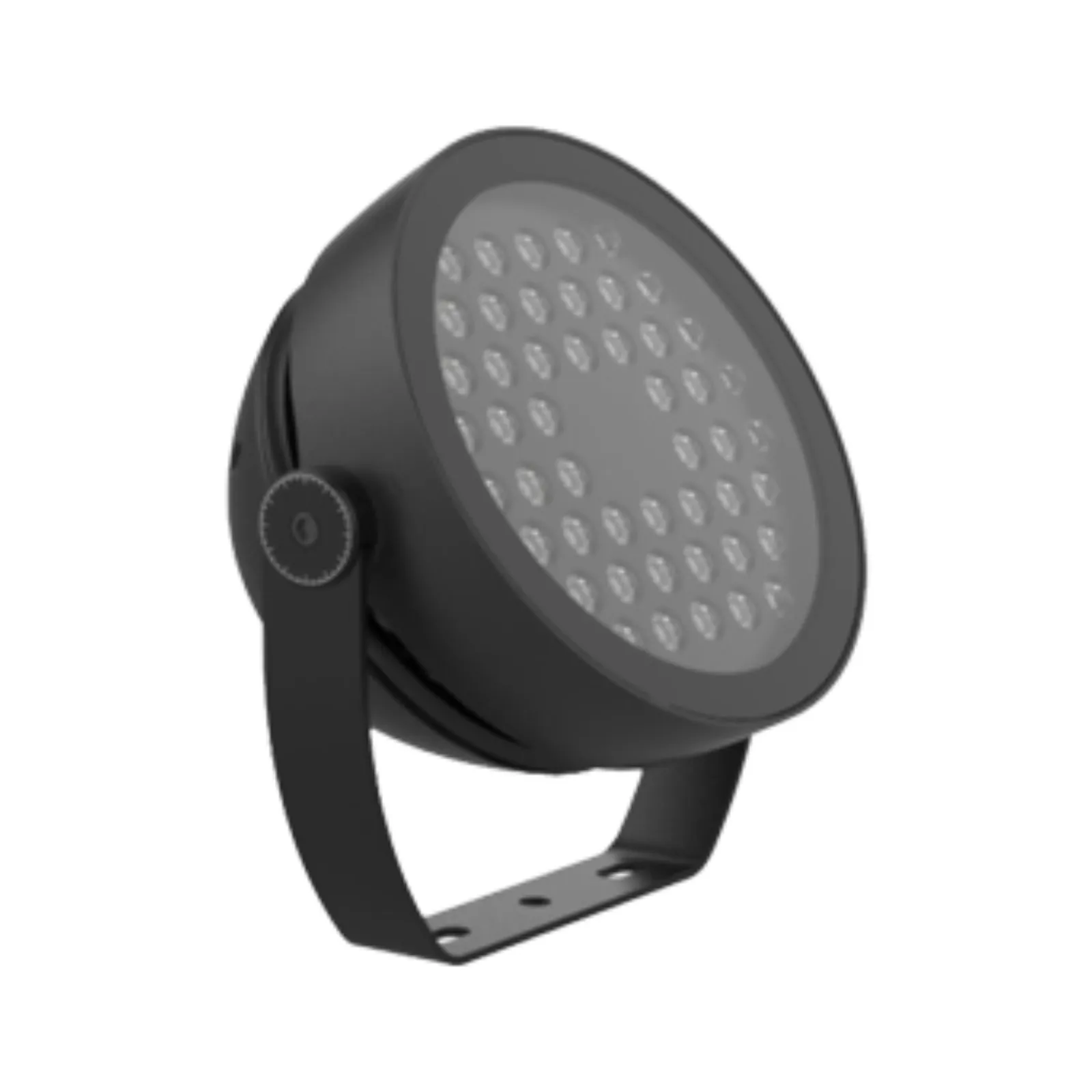

LFL-R-54/90/100/120

PIXL LFL-R is a type of high efficiency LED with 94% light transmittance which is combined to achieve long-distance accurate projection. The design of separate structure of the optical cavity and driver with good heat dissipation reduce the ambient temperature of driver and maintain the product components stability, thus it ensures product longer lifespan. Here we use the black light technology which means a deep-hidden anti-glare design is developed to achieve dual anti-glare purpose. This IP66 rated fixture is with 0-360° rotatable rackets, precisely adjustable dial, and safety self-locking structure design. These lights are mainly used in outdoor landscape, building advertising, inside or outside of building, etc.

Rated Power

54 / 90 / 100 / 120W

Delivered Lumen

54W/24 LEDs - 4050lm 3000°K @ 4° Beam 90W/48 LEDs - 7110lm 3000°K @ 15° Beam

Led Color

2700/3000/4000/5000/5700/6500K

Cri

80+

Beam Angle

4°/8°/15°/30°/45°/60°/15°x60°/20°x40°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

286(L)x150(W)x310mm(H)

Body Finish

WHITE, BLACK, GREY

Supply Voltage

220-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI

Notes

SDCM : 3

Lamp Life

50,000 Hrs

Led Quantity

24 Nos (54W) / 48 Nos (90W/100W/120W)

Light Source

OSRAM

Body Material

ALUMINIUM
