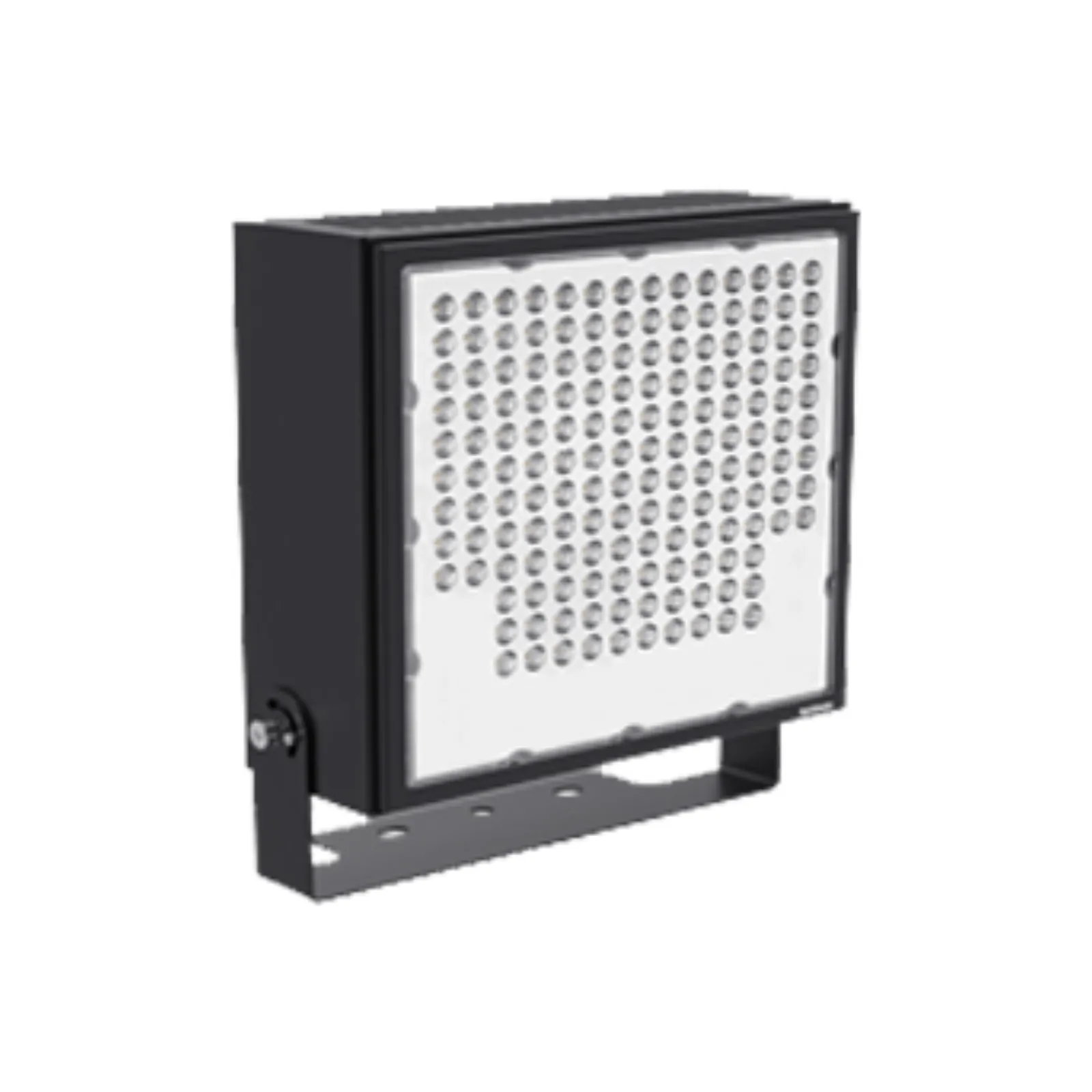

RFL-180-RGB/RGBW

PIXL RFL is a unique square-shaped luminaire in power LED version providing precision optical systems which gives very low glare rating, while reducing light pollution and specially designed for landscapes and in unique structural design shape. Theses luminaires are designed to offer functional, a wide range of lighting solutions and dramatic highlighting of the architectural facades, landscapes, trees through the superior finishing as well highest efficiency with a long service life. This exterior ground spike luminaries are made in aluminum body and can achieve the desired effect in a wide range of applications with high quality optical systems and for direct lighting. These are mainly used in outdoor landscape, building advertising, inside or outside of building wall, huge architecture, huge bridge guardrail.

Rated Power

180W

Delivered Lumen

48-49lm/W RGB 64-65lm/W RGBW

Led Color

RGB, RGBW

Cri

80

Beam Angle

22°, 30°, 45°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

260mm(L)x262mm(W)x148.2mm(H)

Body Finish

BLACK

Supply Voltage

220V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DMX

Notes

ROTATION ANGLE : 180°

Lamp Life

50,000 Hrs

Led Quantity

162 Nos

Lens Options

PC

Light Source

OSRAM

Body Material

ANODIZED EXTRUDED ALUMINUM
