LFG - IP20

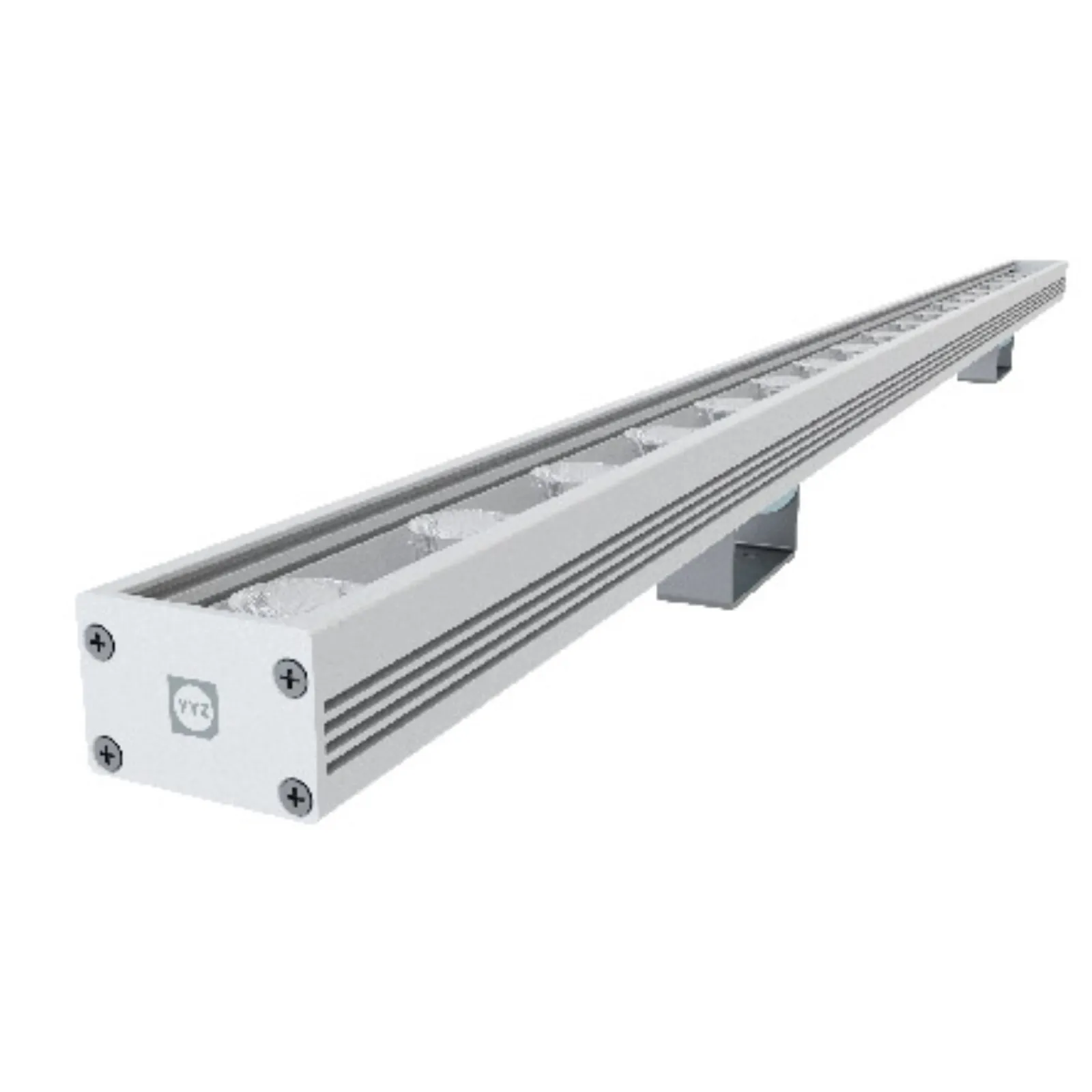

PIXL LFG series linear LED light fixtures are a simple and yet elegant solution for wall washing and grazing applications where crisp, single color light is desired along a wall or ceiling. LFG series in a new improvised version of PIXL Easy Grazer product which has installation in large scale projects worldwide since past several years. The use of elliptical optics ensures smooth lighting across the entire surface with optimal overlap between LEDs, and little spill or throw beyond the illuminated plane.

Rated Power

4.8 W/ft

Delivered Lumen

370 lm/ft (2200K) 490 lm/ft (2700K) 450 lm/ft (3000K) 490 lm/ft (3500K) 490 lm/ft (4000K) 510 lm/ft (5000K) 510 lm/ft (5700K) 510 lm/ft (6000K) 510 lm/ft (6500K) 110 lm/ft (BLUE) 200 lm/ft (RED) 355 lm/ft (GREEN) 220 lm/ft (AMBER)

Led Color

2200/2400/2700/3000/3500/4000/5000/5700/6000/6500 K, UNIQUE COLORS: (RED/GREEN/BLUE/AMBER)

Cri

80+

Beam Angle

15º, 25º, 30º, 60º, 90º, 15ºx30º, 20ºx30º

Ip Rating

IP20

Mounting

SWIVEL BRACKET, MOUNTING CLIP

Dimensions

44.8 X 41.7 mm

Supply Voltage

24V DC

Connection

AM, CW CONNECTORS

Driver / Power Supply Details

ON/OFF DALI DMX 0/1 -10 V

Notes

FIXTURE CONNECTION:-AMP MINI-FIT CONNECTOR

Dimming

DALI, DMX, 0/1 -10 V

Options

LEDs / FT : 6 AMP / FT : 200mA/ft mA / Mtr : 660 TYPE OF LED : SAMSUNG

Lamp Life

50,000 hrs

Led Quantity

6 LEDs / ft

Light Source

Top quality surface mount LED with variable drive current

Max Daisy Run

15 ft / 4.35 m
