LFG-P 4.8W

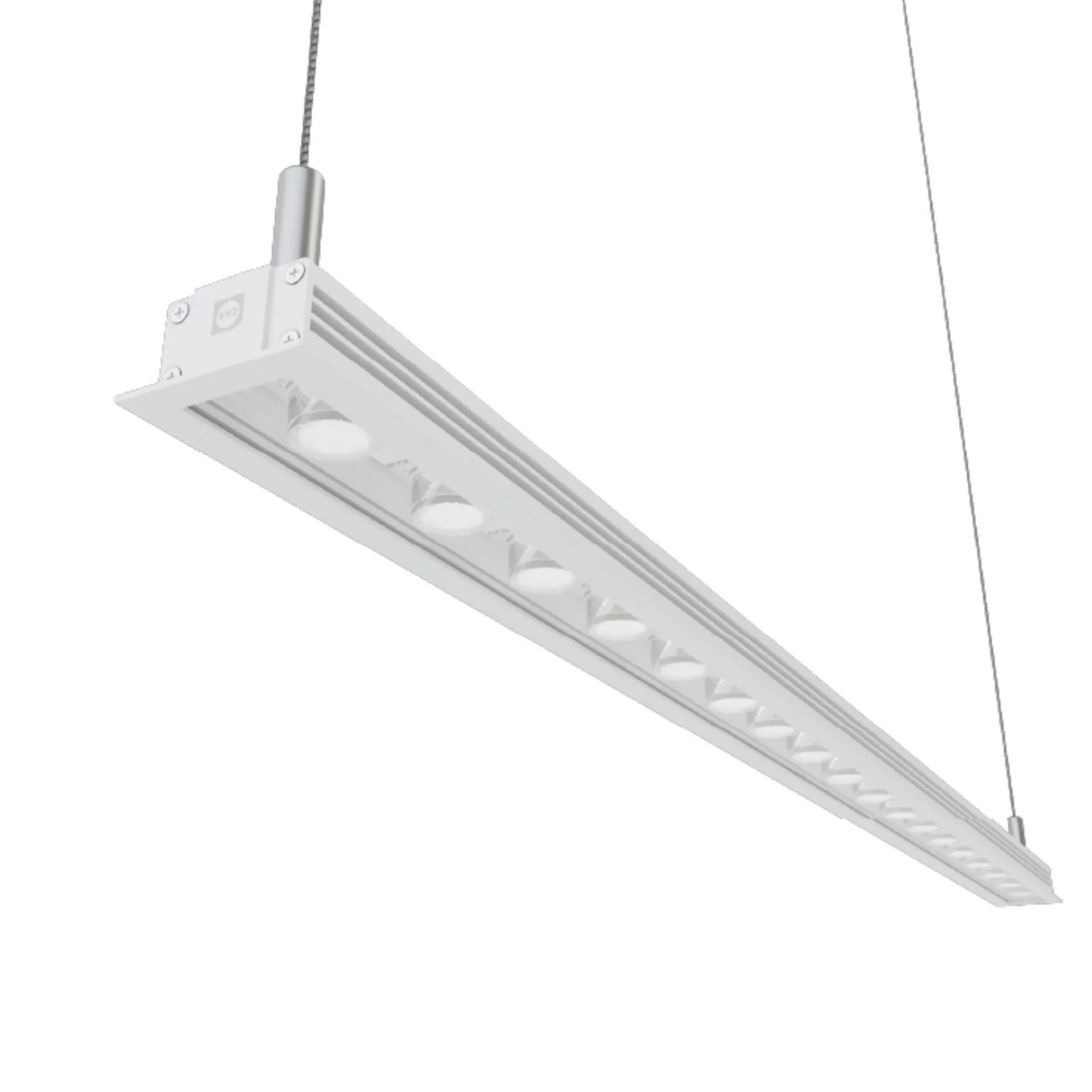

The PIXL LFG-P series linear LED pendant light fixtures offer a simple yet elegant solution for wall washing and grazing applications where crisp, single-color light is desired along vertical or horizontal surfaces. This pendant-mounted version is an evolution of the widely adopted PIXL Easy Grazer, known for its performance in large-scale projects across the globe. Designed for suspended installation, the LFG-P series provides versatility in architectural lighting with a clean, modern aesthetic. Its precision-engineered elliptical optics deliver uniform illumination with optimal LED overlap and minimal spill, ensuring a smooth wash of light across the target surface without unwanted glare or light loss.

Rated Power

4.8 W/ft

Delivered Lumen

370 lm/ft (2200K) 490 lm/ft ( 2700K) 450 lm/ft (3000K) 490lm/ft (3500K) 490 lm/ft (4000K) 510 lm/ft (5000K) 510 lm/ft (5700K) 510 lm/ft (6000K) 510 lm/ft (6500K) 110 lm/ft (BLUE) 200 lm/ft (RED) 355 lm/ft (GREEN) 220 lm/ft (AMBER)

Led Color

2200/2700/3000/3500/4000/5000/5700/6000/6500K, UNIQUE COLORS: (BLUE/RED/GREEN/AMBER)

Cri

80+

Beam Angle

15º, 25º, 30º, 60º, 90º, 15ºx30º, 20ºx30º

Ip Rating

IP20

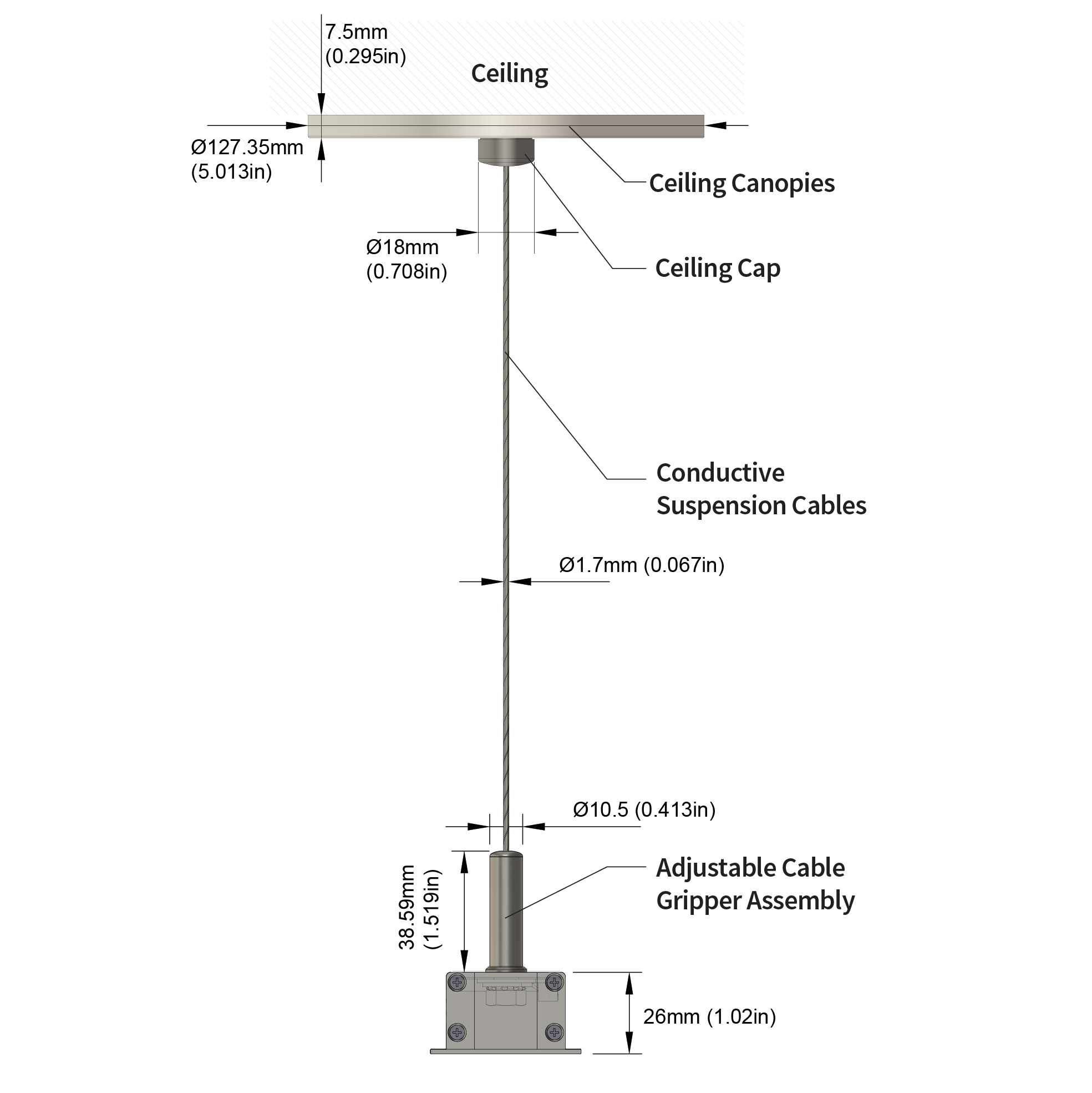

Mounting

Pendant

Dimensions

26 x 44.59 mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

24V DC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI DMX 0/1 - 10 V

Notes

COLOR RANGE:- SINGLE COLOR OPERATION / CUSTOM COLOR OPERATION CONNECTORS : AM-AMP MINI-FIT CONNECTOR / CW-LEAD WIRING

Dimming

DALI, DMX, 0/1 -10 V

Options

NO OF LED / FT : 6 AMP / FT : 200mA/ft mA / Mtr : 660 TYPE OF LED : SAMSUNG

Lamp Life

50,000 hrs

Led Quantity

6 LEDs / ft

Light Source

Top quality surface mount LED with variable drive current

Body Material

Aluminum

Max Daisy Run

44 ft / 13.4 m
