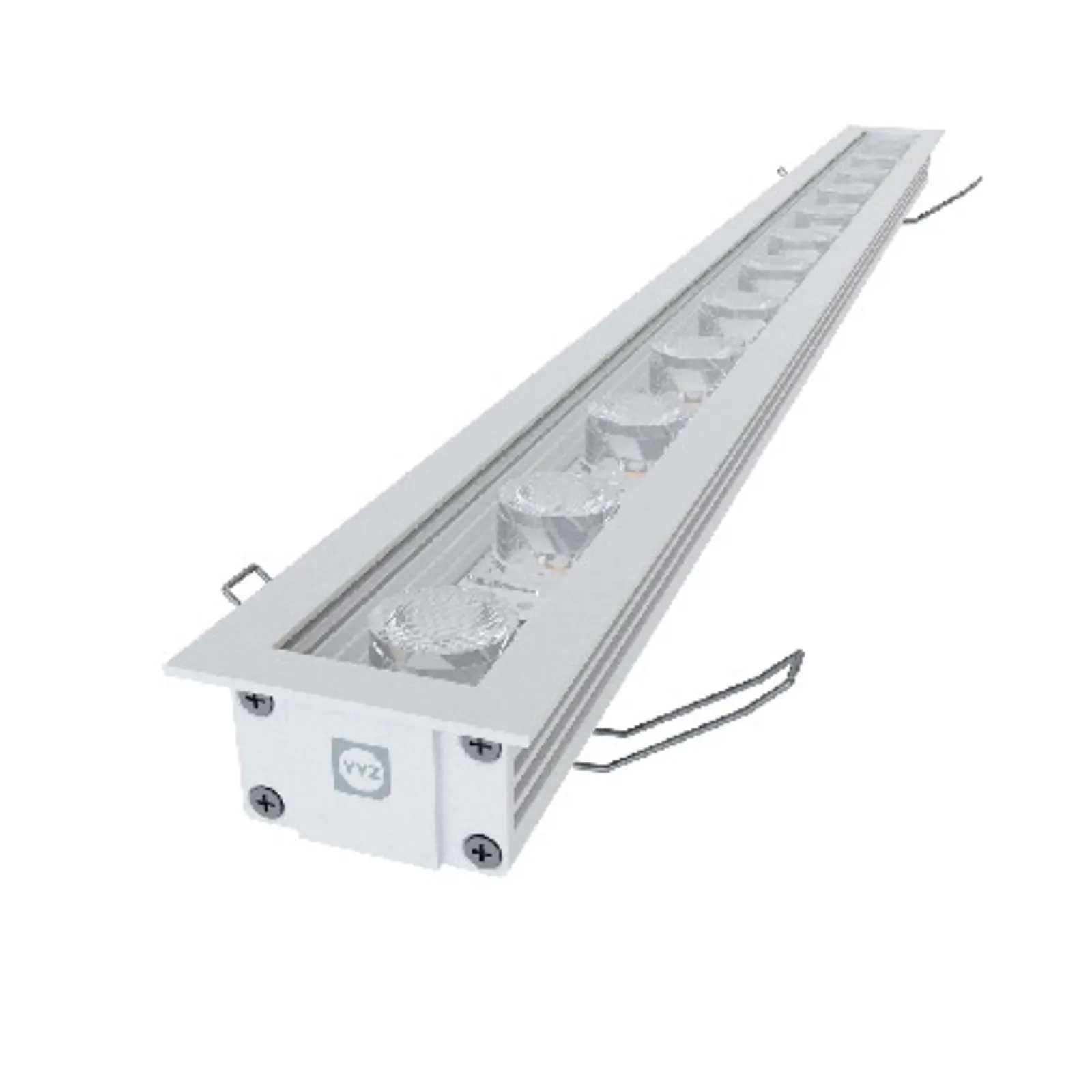

LFG-R-IP20

PIXL LFG-R series linear LED light fixtures are a simple, yet elegant solution for wall washing and grazing applications where crisp, single color light is desired along a wall or ceiling. LFG series is a new improvised version of PIXL Easy Grazer product which has installation in large scale projects worldwide since past several years. The use of elliptical optics ensures smooth lighting across the entire surface with optimal overlap between LEDs, and little spill or throw beyond the illuminated plane.

Rated Power

4.8 W/ft

Delivered Lumen

370 lm/ft (2200K) 490 lm/ft ( 2700K) 450 lm/ft (3000K) 490lm/ft (3500K) 490 lm/ft (4000K) 510 lm/ft (5000K) 510 lm/ft (5700K) 510 lm/ft (6000K) 510 lm/ft (6500K) 110 lm/ft (BLUE) 200 lm/ft (RED) 355 lm/ft (GREEN) 220 lm/ft (AMBER)

Led Color

2200/2700/3000/3500/4000/5000/5700/6000/6500K, UNIQUE COLORS: (BLUE/RED/GREEN/AMBER)

Cri

80+

Beam Angle

15º, 25º, 30º, 60º, 90º, 15ºx30º, 20ºx30º

Ip Rating

IP20

Mounting

CEILING RECESSED

Dimensions

26 x 44.59 mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

24V DC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI DMX 0/1 - 10 V

Notes

COLOR RANGE:- SINGLE COLOR OPERATION / CUSTOM COLOR OPERATION CONNECTORS : AM-AMP MINI-FIT CONNECTOR / CW-LEAD WIRING

Dimming

DALI, DMX, 0/1 -10 V

Options

NO OF LED / FT : 6 AMP / FT : 200mA/ft mA / Mtr : 660 TYPE OF LED : SAMSUNG

Lamp Life

50,000 hrs

Led Quantity

6 LEDs / ft

Light Source

Top quality surface mount LED with variable drive current

Body Material

ALUMINUM

Max Daisy Run

44 ft / 13.4 m
