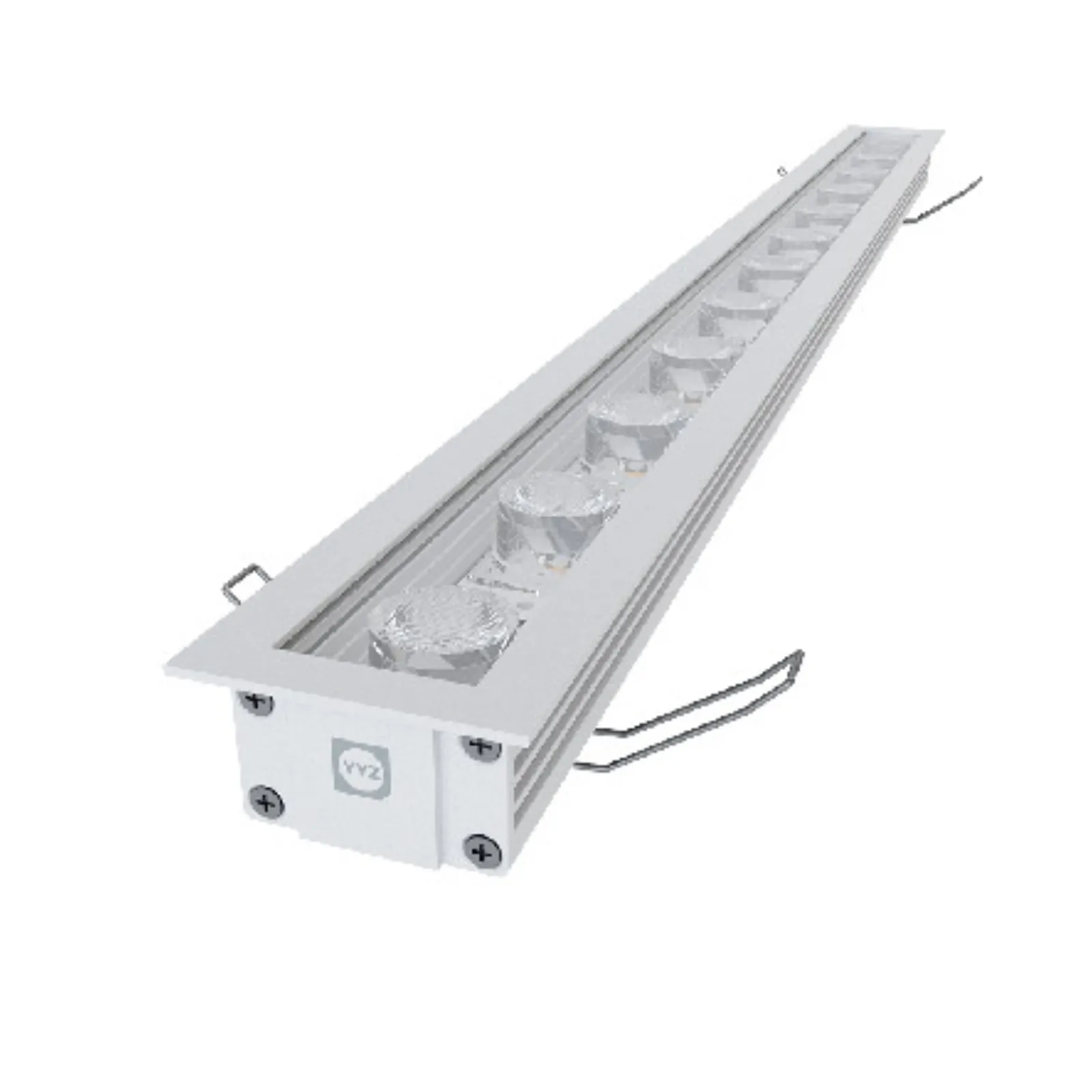

LFG-R-IP20

PIXL LFG-R series linear LED light fixtures are a simple, yet elegant solution for wall washing and grazing applications where crisp, single color light is desired along a wall or ceiling. LFG series is a new improvised version of PIXL Easy Grazer product which has installation in large scale projects worldwide since past several years. The use of elliptical optics ensures smooth lighting across the entire surface with optimal overlap between LEDs, and little spill or throw beyond the illuminated plane.

Rated Power

9.6 W/ft

Delivered Lumen

670 lm/ft (2200K) 880 lm/ft ( 2700K) 810 lm/ft (3000K) 880lm/ft (3500K) 880 lm/ft (4000K) 910 lm/ft (5000K) 910 lm/ft (5700K) 910 lm/ft (6000K) 910 lm/ft (6500K) 200 lm/ft (BLUE) 380 lm/ft (RED) 560 lm/ft (GREEN) 405 lm/ft (AMBER)

Led Color

2200/2700/3000/3500/4000/5000/5700/6000/6500K, UNIQUE COLORS: (BLUE/RED/GREEN/AMBER)

Cri

80

Beam Angle

15º, 25º, 30º, 60º, 90º, 15ºx30º, 20ºx30º

Ip Rating

IP20

Mounting

SB - SWIVEL BRACKET, MC - MOUNTING CLIP

Dimensions

26 x 44.59 mm

Supply Voltage

24V DC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI DMX 0/1 - 10V

Notes

COLOR RANGE: SINGLE COLOR OPERATION / CUSTOM COLOR OPERATION CONNECTION : AM-AMP MINI-FIT CONNECTOR / CW-LEAD WIRING

Dimming

DALI, DMX, 0/1 -10 V

Options

NO OF LED / FT : 6 AMP / FT : 400mA/ft mA / Mtr : 1333 TYPE OF LED : SAMSUNG

Lamp Life

50,000 hrs

Led Quantity

6 LEDs / ft

Light Source

Top quality surface mount LED with variable drive current

Max Daisy Run

23.62 ft / 7.2m
