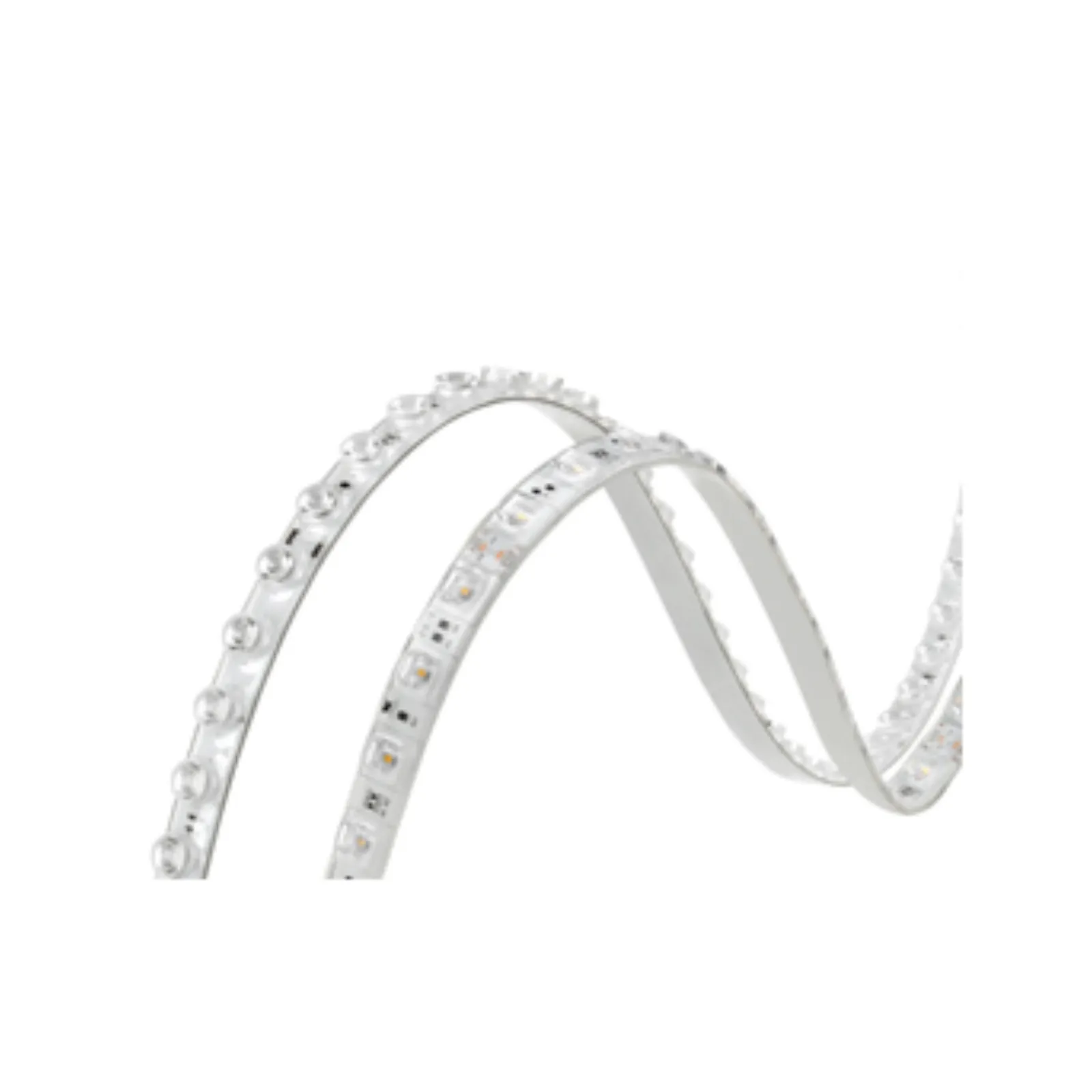

LINEAR FLEX WASHER

PIXL LFW wall washer performs to give the ideal solution in achieving a flawless wall washing effect. Streamlined design with highly focused and direction beam from a PMMA lens with silicone encapsulation. Backed with high quality aluminium profile for thermal management and adjustable brackets for effective installation. Modular system available in standard lengths and can be customized as per project requirements. IP67 structural waterproof making it desirable for a wide range of applications like wall grazing, linear and indirect illumination for exterior architectural, retail and hospitality applications.

Rated Power

20 W/mtr

Delivered Lumen

2260lm(Symmetric) 1662lm(Asymmetric)Lumen Per Meter @ 3000K

Led Color

2500/2700/3000/3500/4000/6000 K

Cri

80+

Beam Angle

SYMMETRIC 20° & 30°, ASYMMETRIC 120°x60°

Ip Rating

IP67

Mounting

Surface Mount

Dimensions

30 x 37 mm

Supply Voltage

24V DC

Connection

2 PIN join connector

Driver / Power Supply Details

ON/OFF DALI

Wiring

2 PIN Male Connection Cable, 2 PIN Female Connection Cable

Dimming

DALI

Options

AVAILABLE LENGTH_ 500MM; 1000MM; 2000MM; 3000MM; 4000MM; 5000MM; 10000M

Lamp Life

50,000 hrs

Led Quantity

42 LED/MTR(Symmetric), 30 LED/MTR(Asymmetric)

Cutting Increments

Symmetric - 166.6 mm/7 LEDs, Asymmetric - 166.6 mm/5 LEDs
