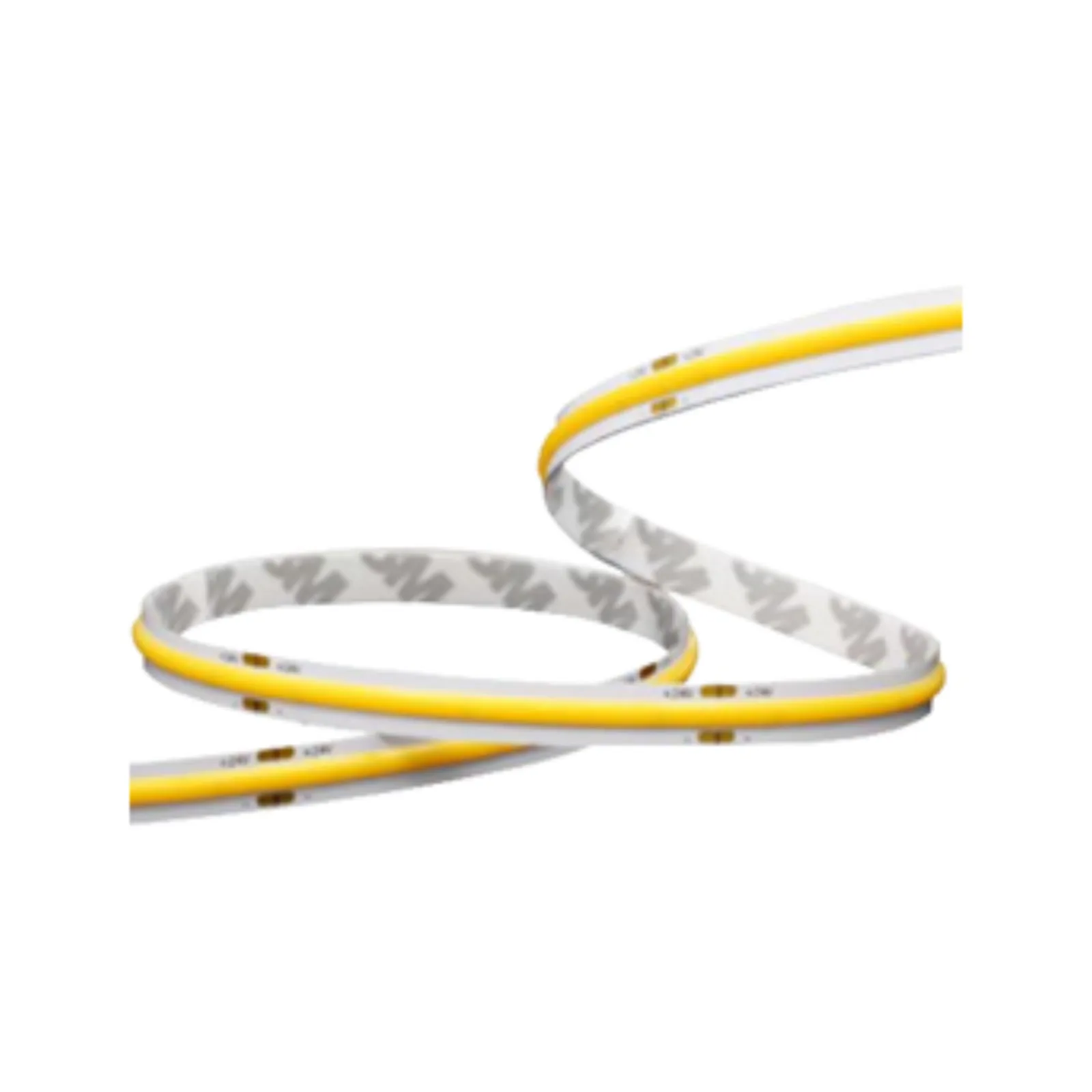

LFX COB IP20 SERIES

PIXL LFX COB IP20 series features excellent homogenous light, without visible light points. The COB strip is a high-density led lighting strip made by COB encapsulation, which can reduce the thermal resistance of the high-density strip circuit system, greatly improves the life of the LED, and the light flux density is high, the glare is small, and the light is uniform. These series is perfect for indirect lighting and hence used in offices, residential interiors, furniture, or places which require large luminous surface.

Rated Power

12W / MTR

Delivered Lumen

820-1050lm

Led Color

2700/3000/4000/5000/6000K

Cri

>90

Beam Angle

180°

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

2500 x 10mm

Body Finish

White PCB

Supply Voltage

12V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DALI

Lamp Life

50,000 Hrs

Led Quantity

480 LED / MTR

Light Source

COB

Max Daisy Run

2.5 MTR

Supply Current

240V AC

Cutting Increments

Every 25mm
