DELUXE SERIES - MONO

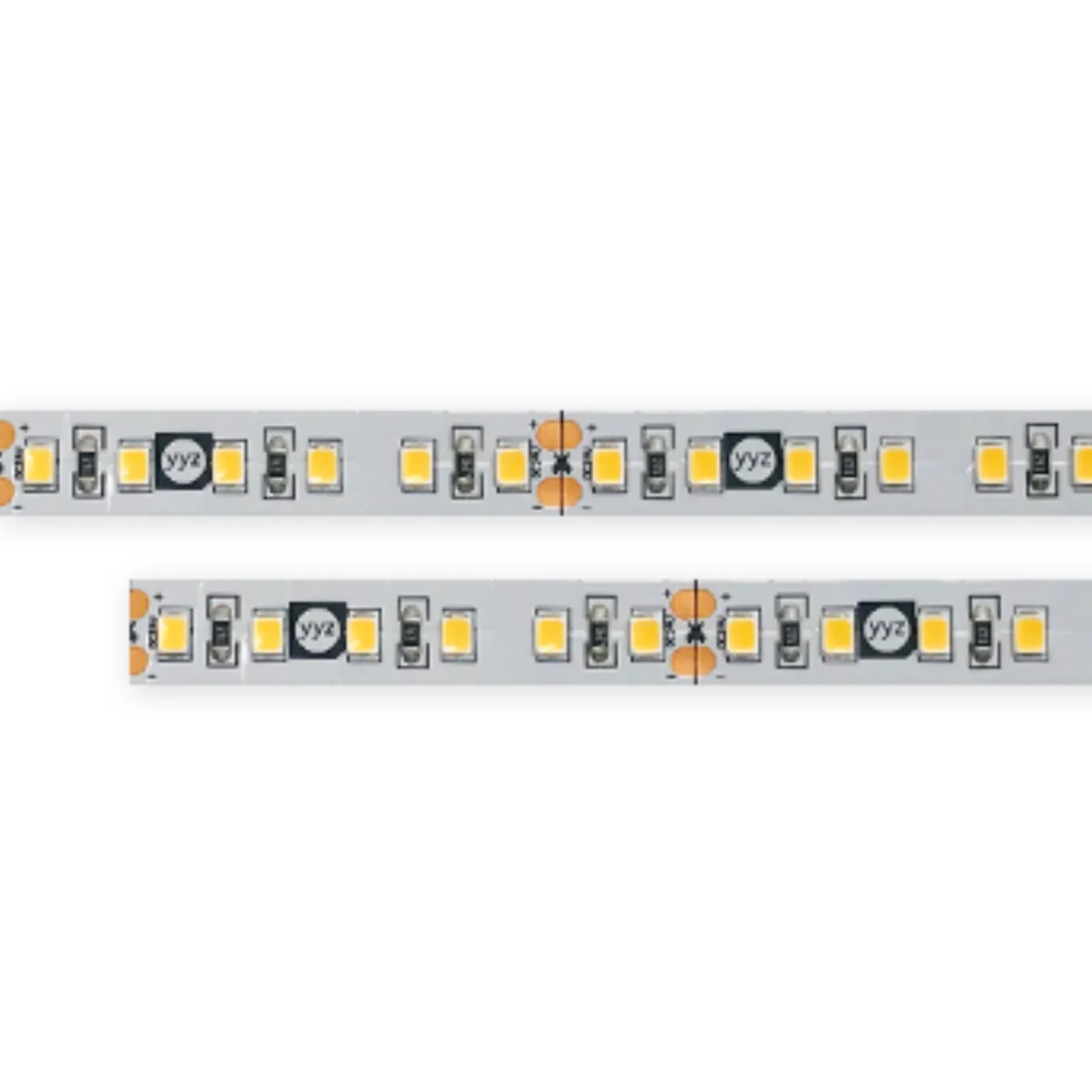

PIXL LFX IP20 series is a flexible linear LED light strip which is simple, effective solution for a wide range of lighting application where crisp, single color light is desired. This series is ideal for indirect accent lighting, as well as store fixtures, display cases, steps and stairwells, furniture, kitchen, and cabinet lighting along with other task and specialty applications. This strip can be quickly cut down to size and come with double -sided 3M adhesive tape, adding ease to installation.

Rated Power

4.8 W/mtr

Delivered Lumen

432 lm/mtr (2200K) 442 lm/mtr (2700K) 456 lm/mtr (3000K) 466 lm/mtr (3500K) 480 lm/mtr (4000K) 490 lm/mtr (5000K) 504 lm/mtr (6000K) 170 lm/mtr (RED) 89 lm/mtr (BLUE) 465 lm/mtr (GREEN)

Led Color

2200/2700/3000/3500/4000/5000/6000 K, UNIQUE COLORS: (RED/GREEN/BLUE)

Cri

90+

Beam Angle

120º

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

8, 10mm X 5000mm X 1.4mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DALI

Notes

LEDS / 3.3FT : 120

Dimming

DALI

Lamp Life

30,000 hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Max Daisy Run

5 mtr

Rated Current

200 mA

Binning Tolerance

2250K-2475K (BIN:22B) / 2700K-2830K (BIN:WK2,WP2) / 2830K-3040K (BIN:WK3,WP3) 3900K-4258K (BIN:NK2,NP2) / 6000K-7034K (BIN:PK5,PK6)

Cutting Increments

Every 50mm / 6 LEDS
