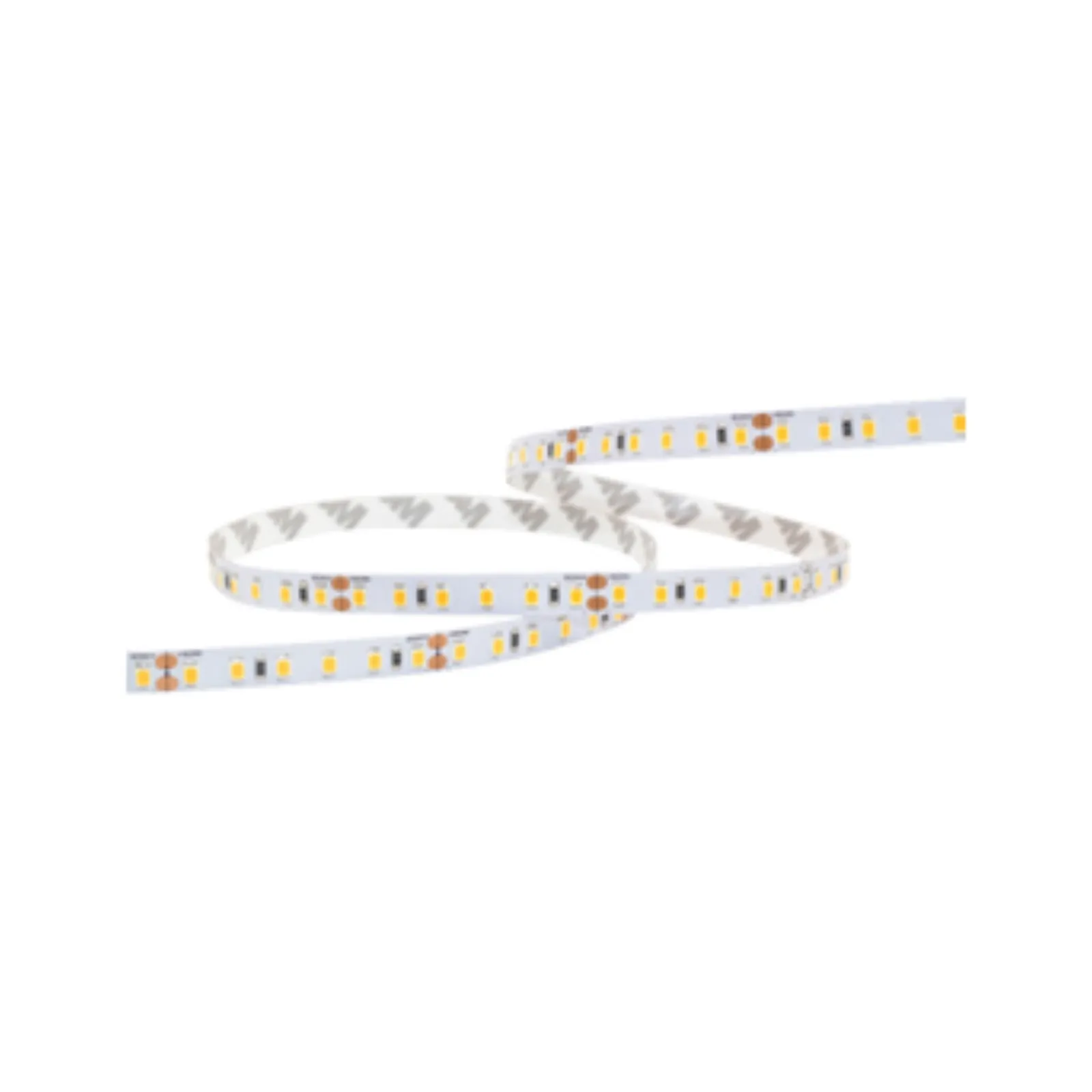

DELUXE SERIES - MONO

PIXL LFX series flexible linear LED light strips is a simple, effective solution for a wide range of lighting applications where crisp, single color light is desired. Ideal for indirect accent lighting, as well as a store fixtures, display cases, steps and stairwells, furniture, kitchen and cabinet lighting, along with other task and specialty applications.

Rated Power

19.2W/mtr

Delivered Lumen

1550 lm/M 1730 lm/M 1800 lm/M 1870 lm/M 1910 lm/M 1970 lm/M 1920 lm/M

Led Color

2200/2400/2700/3000/4000/5000/6000K

Cri

90

Beam Angle

120°

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

10mm X 5000mm X 1.4mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

DMX DALI

Dimming

DMX, DALI

Lamp Life

50,000 Hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Max Daisy Run

5 MTR

Cutting Increments

Every 50mm
