DELUXE SERIES - MONO

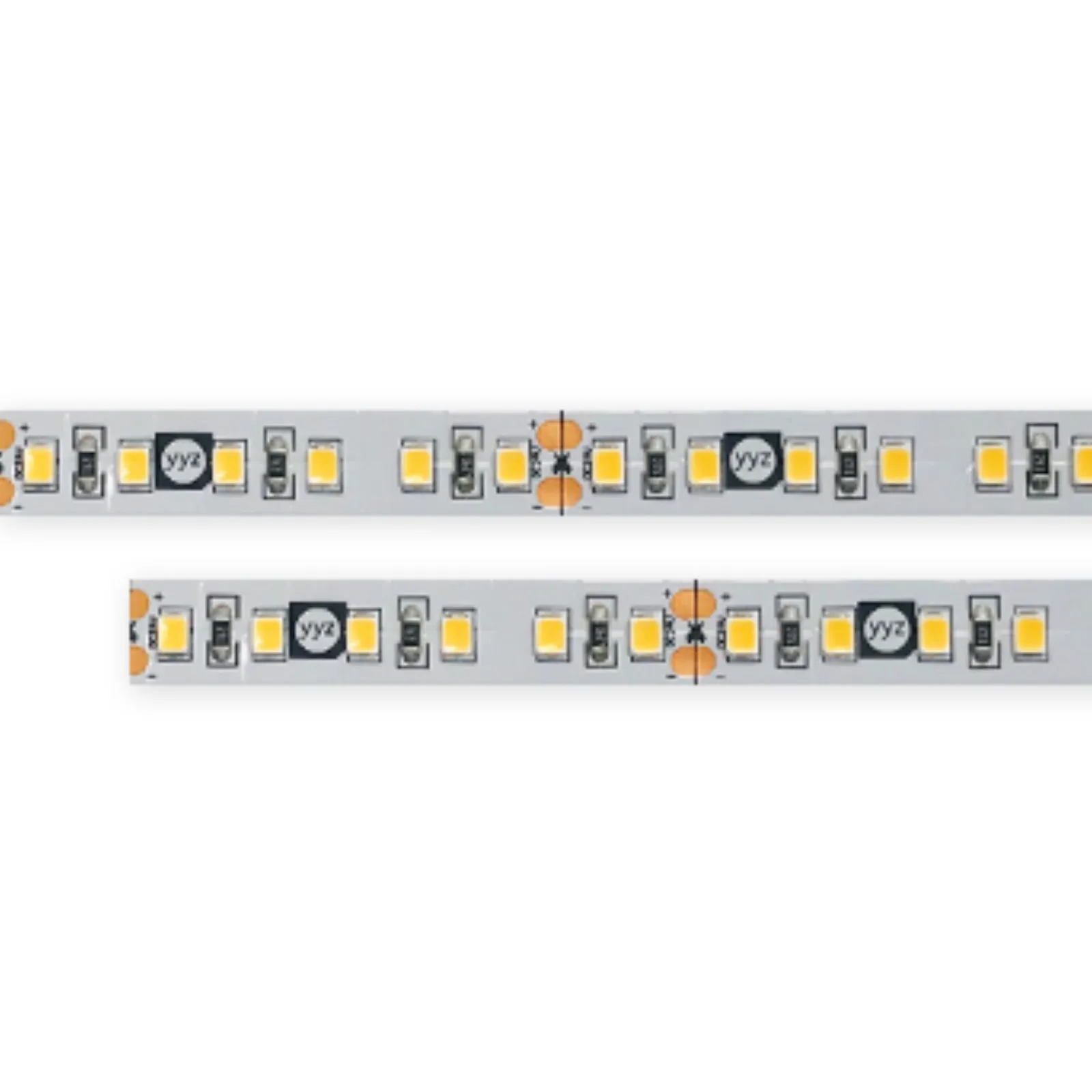

PIXL LFX IP20 series is a flexible linear LED light strip which is simple, effective solution for a wide range of lighting application where crisp, single color light is desired. This series is ideal for indirect accent lighting, as well as store fixtures, display cases, steps and stairwells, furniture, kitchen, and cabinet lighting along with other task and specialty applications. This strip can be quickly cut down to size and come with double -sided 3M adhesive tape, adding ease to installation.

Rated Power

28.8 W/mtr

Delivered Lumen

2592 lm/mtr (2700K) 2650 lm/mtr (3000K) 2736 lm/mtr (3500K) 2794 lm/mtr (4000K) 2880 lm/mtr (5000K) 2938 lm/mtr (6000K) 1100 lm/mtr (RED) 400 lm/mtr (BLUE) 2200 lm/mtr (GREEN)

Led Color

2200/2700/3000/3500/4000/5000/6000 K, UNIQUE COLORS: (RED/GREEN/BLUE)

Cri

90+

Beam Angle

120º

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

8, 10mm X 5000mm X 1.4mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DALI

Notes

LEDs / 3.3FT : 120

Dimming

DALI

Lamp Life

30,000 hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Max Daisy Run

5 mtr

Rated Current

200 mA

Binning Tolerance

2250K-2475K (BIN:22B) / 2700K-2830K (BIN:WK2,WP2) / 2830K-3040K (BIN:WK3,WP3) 3900K-4258K (BIN:NK2,NP2) / 6000K-7034K (BIN:PK5,PK6)

Cutting Increments

Every 50 mm / 6 LEDS
