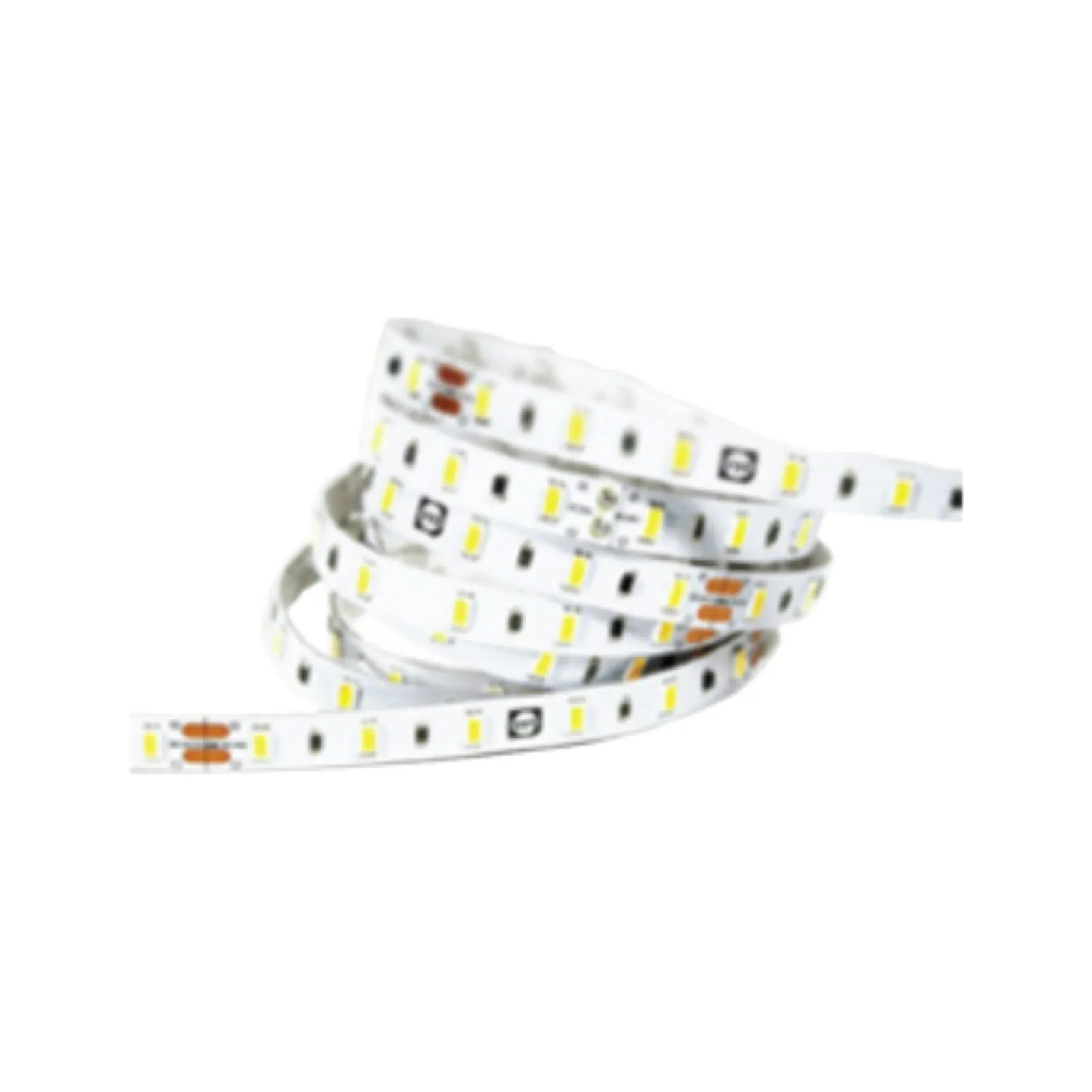

LFX 5050 SERIES - DWWW

PIXL LFX IP20 series is a flexible linear LED light strip which is simple, effective solution for a wide range of lighting application where crisp, single color light is desired. This series is ideal for indirect accent lighting, as well as store fixtures, display cases, steps and stairwells, furniture, kitchen, and cabinet lighting along with other task and specialty applications. This strip can be quickly cut down to size and come with double -sided 3M adhesive tape, adding ease to installation.

Rated Power

23 W/mtr

Delivered Lumen

1110 lm/mtr (WHITE) 980 lm/mtr (WARM WHITE)

Led Color

DWWW - Dynamic White (W+WW)

Cri

90 - 95

Beam Angle

120º

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

12mm x 5000mm x 0.3mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DMX DALI

Dimming

DMX, DALI

Lamp Life

50,000 hrs

Led Quantity

96 LEDs/mtr

Light Source

5050 LED

Max Daisy Run

5 mtr

Rated Current

600mA

Binning Tolerance

2700-6500K

Cutting Increments

Every 50 mm / 6 LEDS
