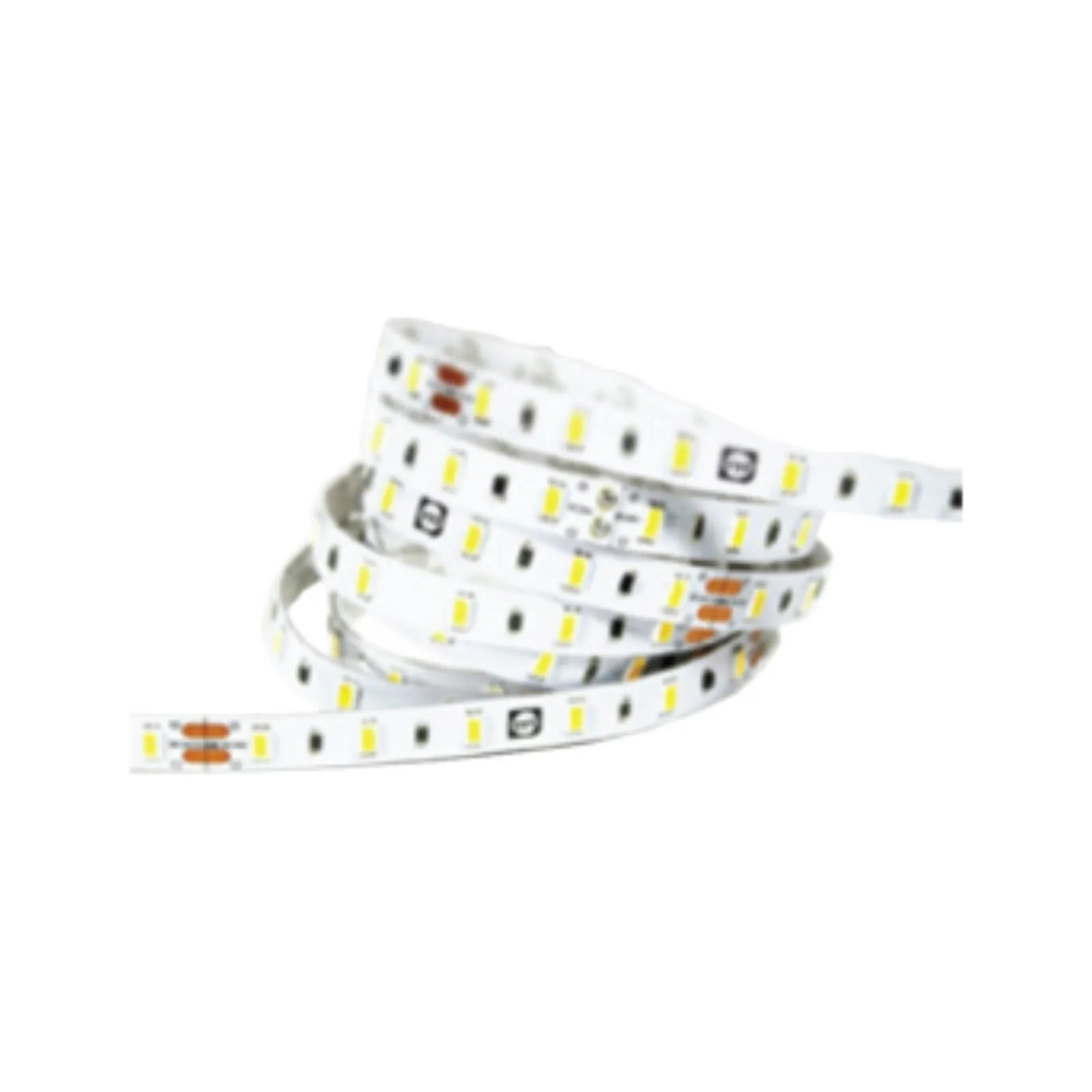

LFX 5050 SERIES - RGB

Our LFX series flexible linear LED light strips is a simple, effective solution for a wide range of lighting applications where crisp, single color light is desired. Ideal for indirect accent lighting, as well as a store fixtures, display cases, steps and stairwells, furniture, kitchen and cabinet lighting, along with other task and specialty applications.

Rated Power

14.4 W/mtr

Delivered Lumen

140 lm/mtr (RED) 370 lm/mtr (GREEN) 80 lm/m (BLUE)

Led Color

RGB

Cri

NA

Beam Angle

120º

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

10mm x 5000mm x 1mm(PCB)

Body Finish

WHITE PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DMX DALI

Dimming

DMX, DALI

Lamp Life

50,000 hrs

Led Quantity

60 LEDs/mtr

Light Source

5050 LED

Max Daisy Run

5 mtr

Rated Current

600mA

Binning Tolerance

RGB

Cutting Increments

Every 100 mm / 6 LEDS
