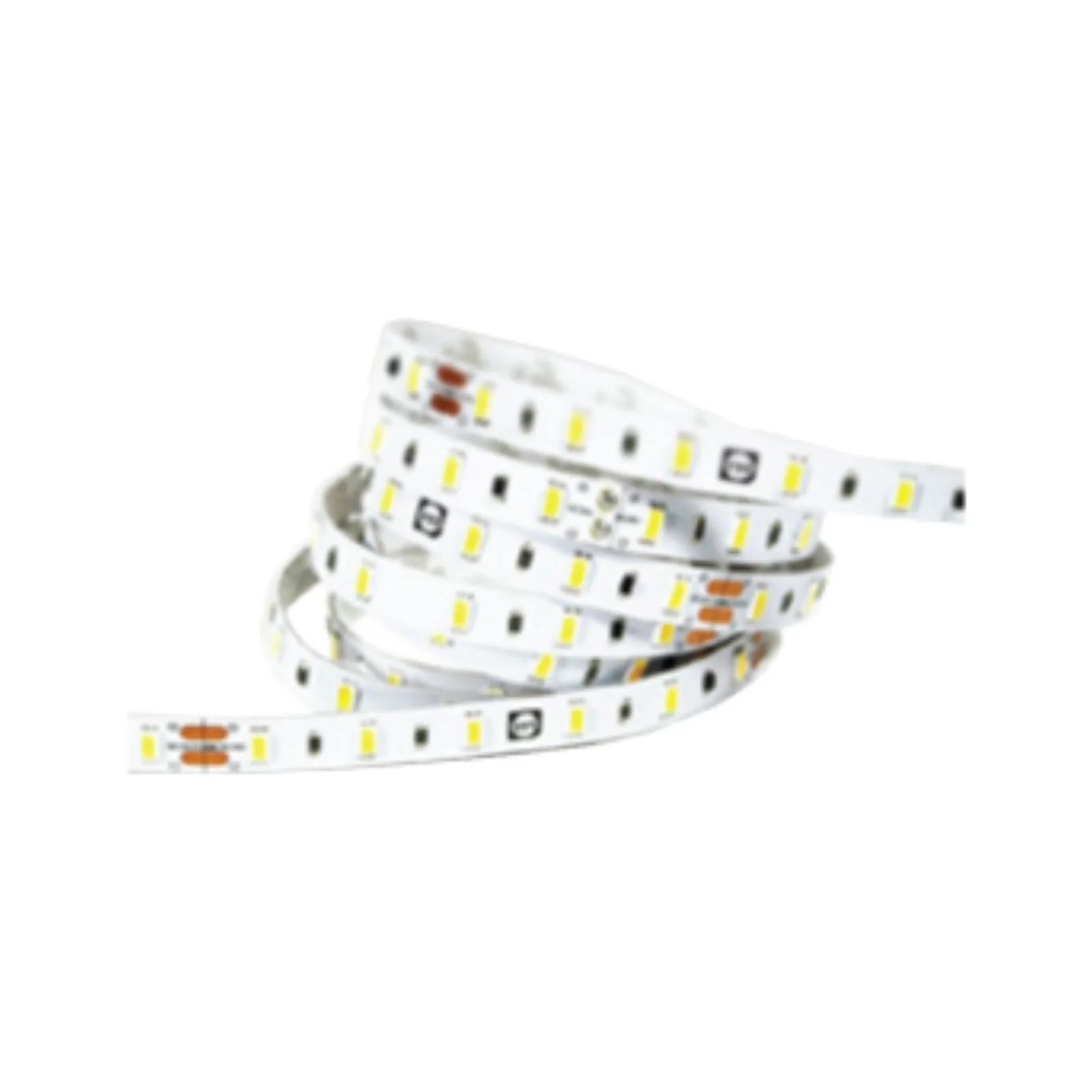

LFX 5050 SERIES - RGBW27K

PIXL LFX IP20 series is a flexible linear LED light strip which is simple, effective solution for a wide range of lighting application where crisp, single color light is desired. This series is ideal for indirect accent lighting, as well as store fixtures, display cases, steps and stairwells, furniture, kitchen, and cabinet lighting along with other task and specialty applications. This strip can be quickly cut down to size and come with double -sided 3M adhesive tape, adding ease to installation.

Rated Power

4.8W / m

Delivered Lumen

24.50 lm/M (RED) 90.50 lm/M (GREEN) 23.00 lm/M (BLUE) 89 lm/M (WARM WHITE)

Led Color

RGBW27K

Cri

80

Beam Angle

120°

Ip Rating

IP20

Mounting

3M TAPE ON THE BACK

Dimensions

10mm X 5000mm X 1mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Lamp Life

50,000 Hrs

Led Quantity

60 LEDs/mtr

Light Source

5050 LED

Max Daisy Run

5 MTR

Rated Current

200 mA

Binning Tolerance

RGB+2700

Cutting Increments

EVERY 100 mm/ 6 LEDs
