DELUXE SERIES - MONO

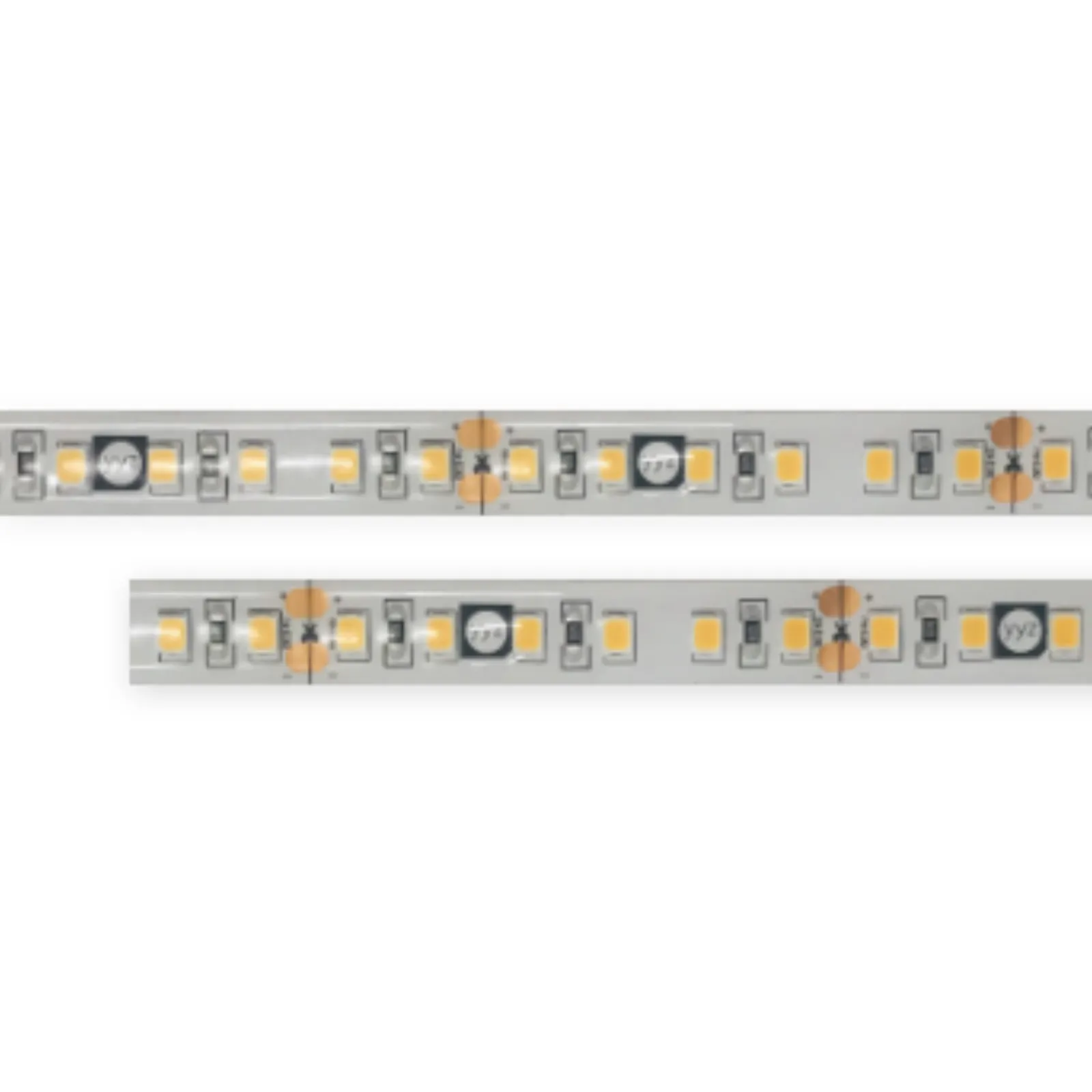

PIXL LFX IP54 series flexible linear LED light strips is simple, effective solution for a wide range of lighting applications where crisp, single color light is desired. This wet rated series is suited to most applications requiring high levels of light, the most common of which is as under cabinet/shelf and room lighting. The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.

Rated Power

28.8 W/mtr

Delivered Lumen

2592 lm/mtr (2700K) 2650 lm/mtr (3000K) 2736 lm/mtr (3500K) 2794 lm/mtr (4000K) 2880 lm/mtr (5000K) 2938 lm/mtr (6000K) 1100lm/mtr (RED) 400 lm/mtr (BLUE) 2200 lm/mtr (GREEN)

Led Color

2200/2700/3000/3500/4000/5000/6000 K, UNIQUE COLORS: (RED/GREEN/BLUE)

Cri

90+

Beam Angle

120º

Ip Rating

IP54

Mounting

3M TAPE ON THE BACK

Dimensions

10.5mm X 5000mm X 3.0mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DALI

Notes

LEDs / 3.3FT : 120

Dimming

DALI

Lamp Life

30,000 hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Max Daisy Run

5 mtr

Rated Current

200 mA

Binning Tolerance

2250K-2475K (BIN:22B) / 2700K-2830K (BIN:WK2,WP2) / 2830K-3040K (BIN:WK3,WP3) 3900K-4258K (BIN:NK2,NP2) / 6000K-7034K (BIN:PK5,PK6)

Cutting Increments

Every 50 mm / 6 LEDS
