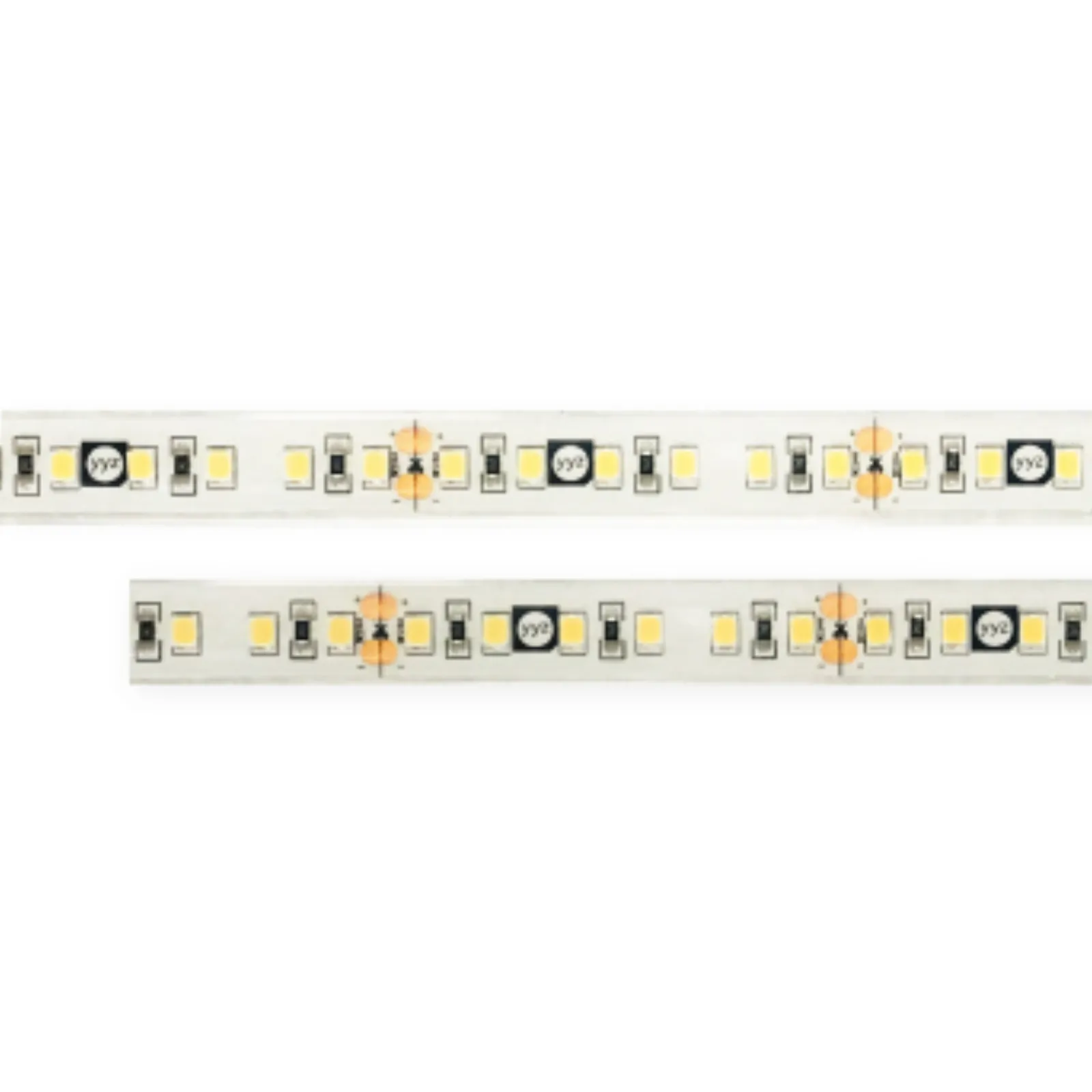

DELUXE SERIES - MONO

PIXL LFX IP68 series are flexible linear LED light strip is simple, effective solution for a wide range of lighting applications where crisp, single-color light is desired. This strip is waterproof and can be used for landscape or exterior lighting like fountains or pool decor allowing you to have strong vivid LED lighting effects. This strip has the highest ingress protection rating for our LED strips.

Rated Power

4.8 W/mtr

Delivered Lumen

419 lm/mtr (2200K) 429 lm/mtr (2700K) 442 lm/mtr (3000K) 452 lm/mtr (3500K) 466 lm/mtr (4000K) 475 lm/mtr (5000K) 489 lm/mtr (6000K) 165 lm/mtr (RED) 86 lm/mtr (BLUE) 451 lm/mtr (GREEN)

Led Color

2200/2700/3000/3500/4000/5000/6000 K, UNIQUE COLORS: (RED/GREEN/BLUE)

Cri

90

Beam Angle

120º

Ip Rating

IP68

Mounting

3M TAPE ON THE BACK

Dimensions

8, 10mm X 5000mm X 5.3mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DALI

Notes

LEDs / 3.3FT : 120

Dimming

DALI

Lamp Life

30,000 hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Max Daisy Run

5 mtr

Rated Current

200 mA

Binning Tolerance

2250K-2475K (BIN:22B) / 2700K-2830K (BIN:WK2,WP2) / 2830K-3040K (BIN:WK3,WP3) 3900K-4258K (BIN:NK2,NP2) / 6000K-7034K (BIN:PK5,PK6)

Cutting Increments

Every 50 mm / 6 LEDS
