DELUXE SERIES - MONO

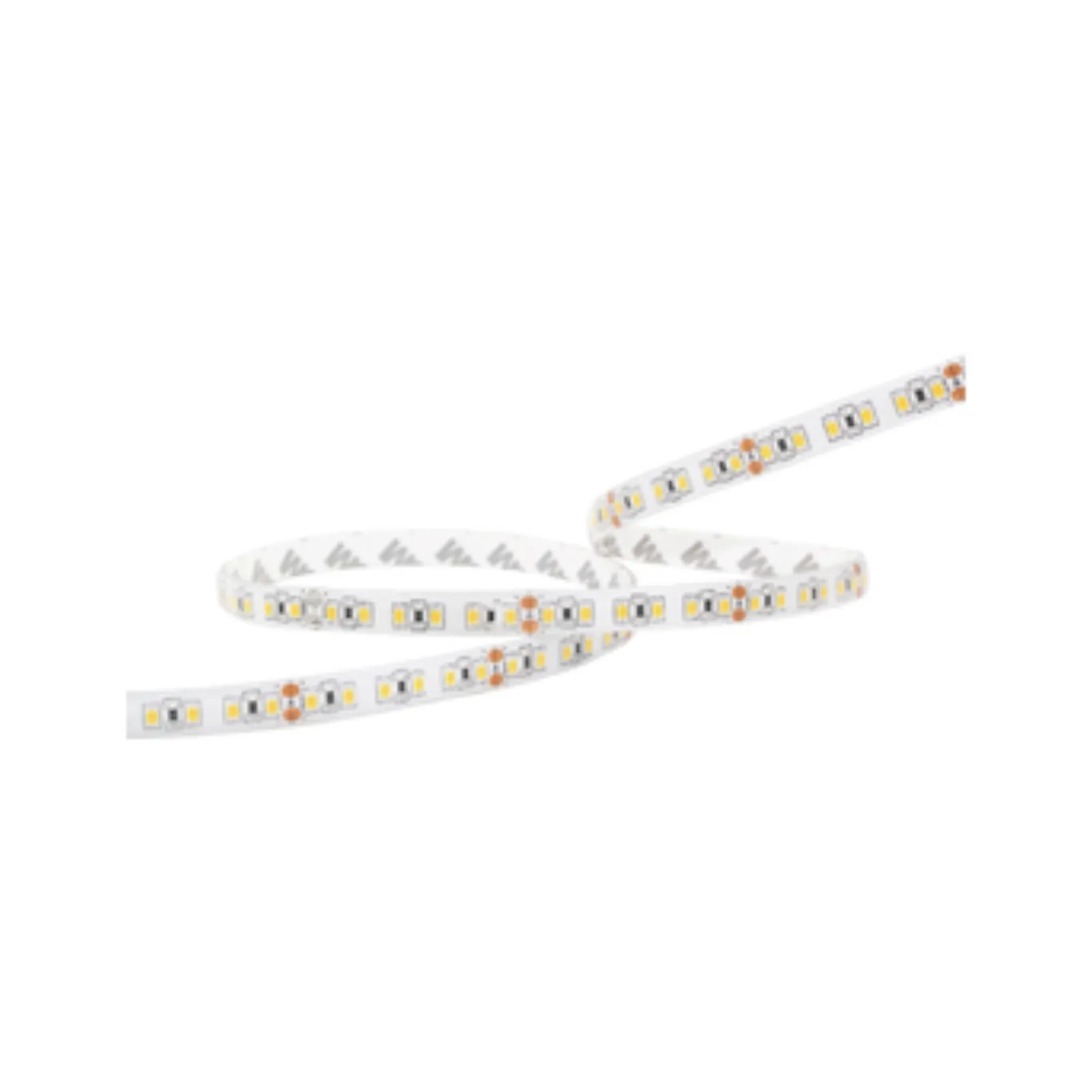

PIXL LFX series flexible linear LED light strips is a simple, effective solution for a wide range of lighting applications where crisp, single color light is desired. Ideal for indirect accent lighting, as well as a store fixtures, display cases, steps and stairwells, furniture, kitchen and cabinet lighting, along with other task and specialty applications.

Rated Power

19.2W/mtr

Delivered Lumen

1471 lm/M 1530 lm/M 1590 lm/M 1624 lm/M 1632 lm/M

Led Color

2400/2700/3000/4000/6000K

Cri

90

Beam Angle

120°

Ip Rating

IP68

Mounting

3M TAPE ON THE BACK

Dimensions

12.5mm X 5000mm X 5.3mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

DMX DALI

Dimming

DMX, DALI

Lamp Life

50,000 Hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Max Daisy Run

5 MTR

Cutting Increments

Every 50 mm
