LFX -N-08_24V-2835-120

The PIXL LFX Neon series delivers exceptionally bright, crisp, and uniformly homogenized illumination that effortlessly enhances any building, structure, or artistic creation. Featuring high-brightness surface mounted LEDs encased behind eco-friendly, UV-resistant silicone polymer, this flexible lighting solution produces consistent, vibrant traces of light in shades of white or a range of single colors without any LED hotspots. Designed with versatility in mind, the LFX Neon boasts a transverse minimum radius of 75mm and offers horizontal bending capabilities. Additionally, it is easy to install, customizable through cutting and reconnecting with an IP68-protected connector, and available in standard 5-meter rolls or tailored lengths to meet your project's unique requirements.

Rated Power

10 W/m

Led Color

2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 6500K, Green, Blue, Red

Cri

80, 90

Beam Angle

120°

Ip Rating

IP68

Mounting

Surface Mount / Recessed

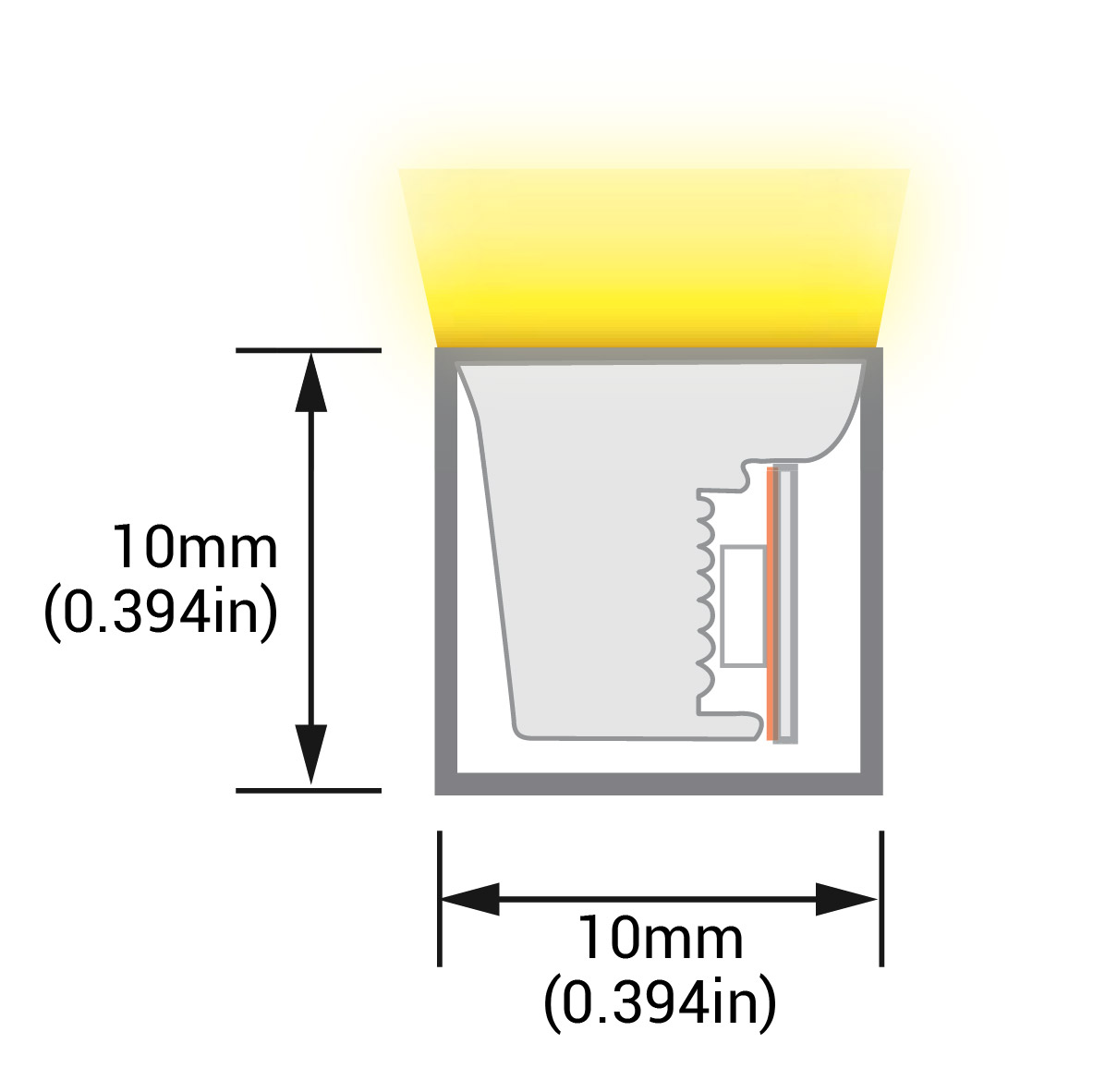

Dimensions

10 mm (W) x 10 mm (H) / 0.39in(W) x 0.39 in (H)

Body Finish

White

Supply Voltage

24V DC

Connection

Outdoor rated connections

Driver / Power Supply Details

Switched 0/1-10 Driver DALI TRIAC DMX

Dimming

NON-DIMMABLE,TRIAC,0-10V,DALI

Ik Rating

IK08

Lamp Life

70,000 Hrs, 50,000 Hrs

Led Quantity

120 LEDs/m

Light Source

SMD LED 2835

Body Material

Silicone

Max Daisy Run

16.4 ft / 5 m(Single Feed), 32.8 ft / 10 m (Double Feed)

Working Temp.

-40°C to +55°C

Binning Tolerance

One Bin

Cutting Increments

100 mm (3.94 in.)
