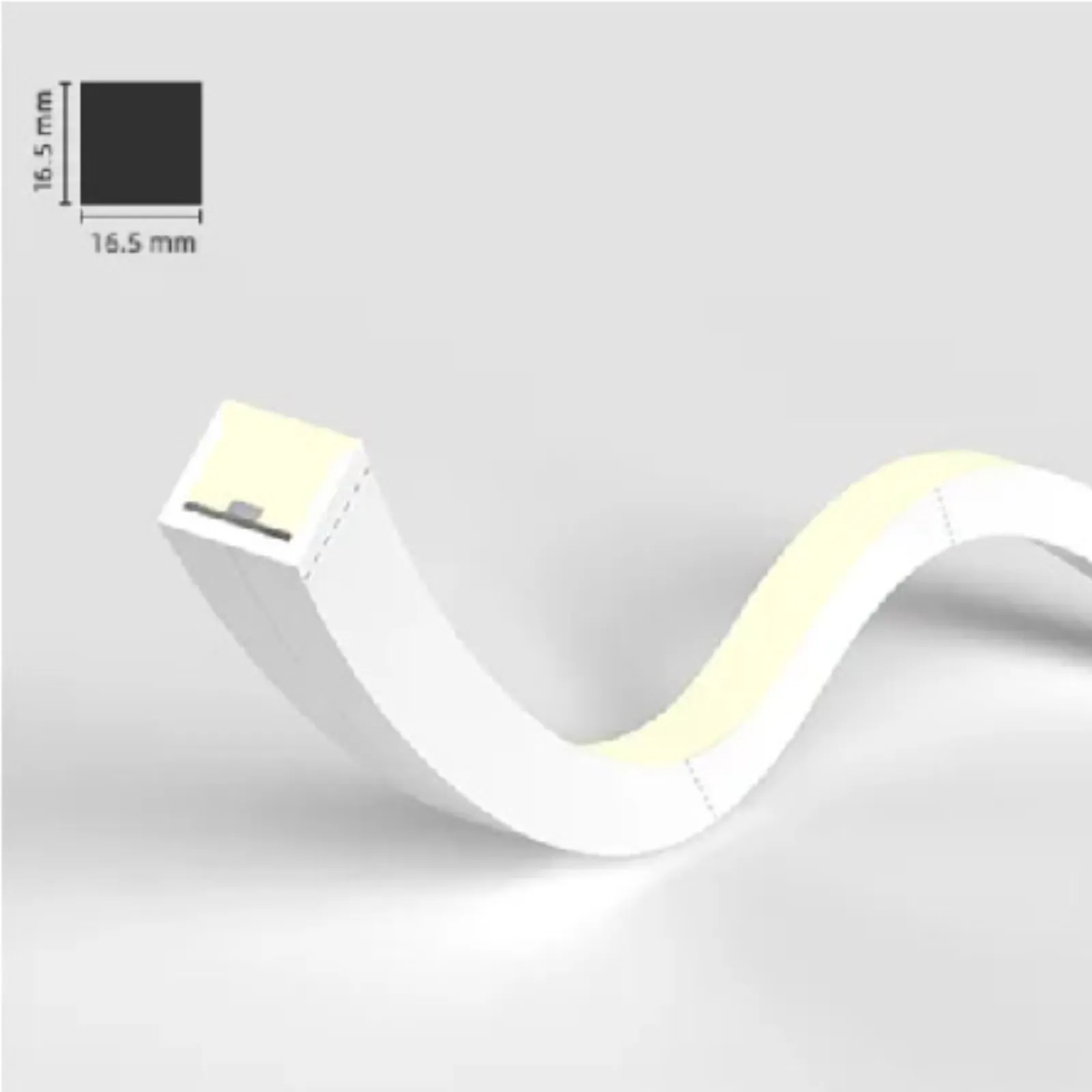

LFX-N-16-24V-2835-120

PIXL LFX Neon series is designed to provide a very bright, crisp consistent and homogenized illumination that will accentuate any building, structure, or artistic flourish. Using high brightness surface mounted LEDs, behind a first-class eco-friendly UV-resistant Silicone polymer encapsulated flexible chamber material, the LFX Neon will provide your project with bright, consistent traces of light in shades of White, single colors. The fixture consists of uniform and even lighting with no Led hotspot. LFX Neon has a transverse minimum radius of 60mm and is horizontal bendable. Easy to install, can be cut and reconnected with IP68 protected connector. The product is supplied in 5m standard rolls or custom as needed.

Rated Power

10 W/m

Led Color

2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 6500K, Green, Blue, Red, Amber

Cri

80, 90

Beam Angle

120°

Ip Rating

IP68

Mounting

Surface Mount / Recessed

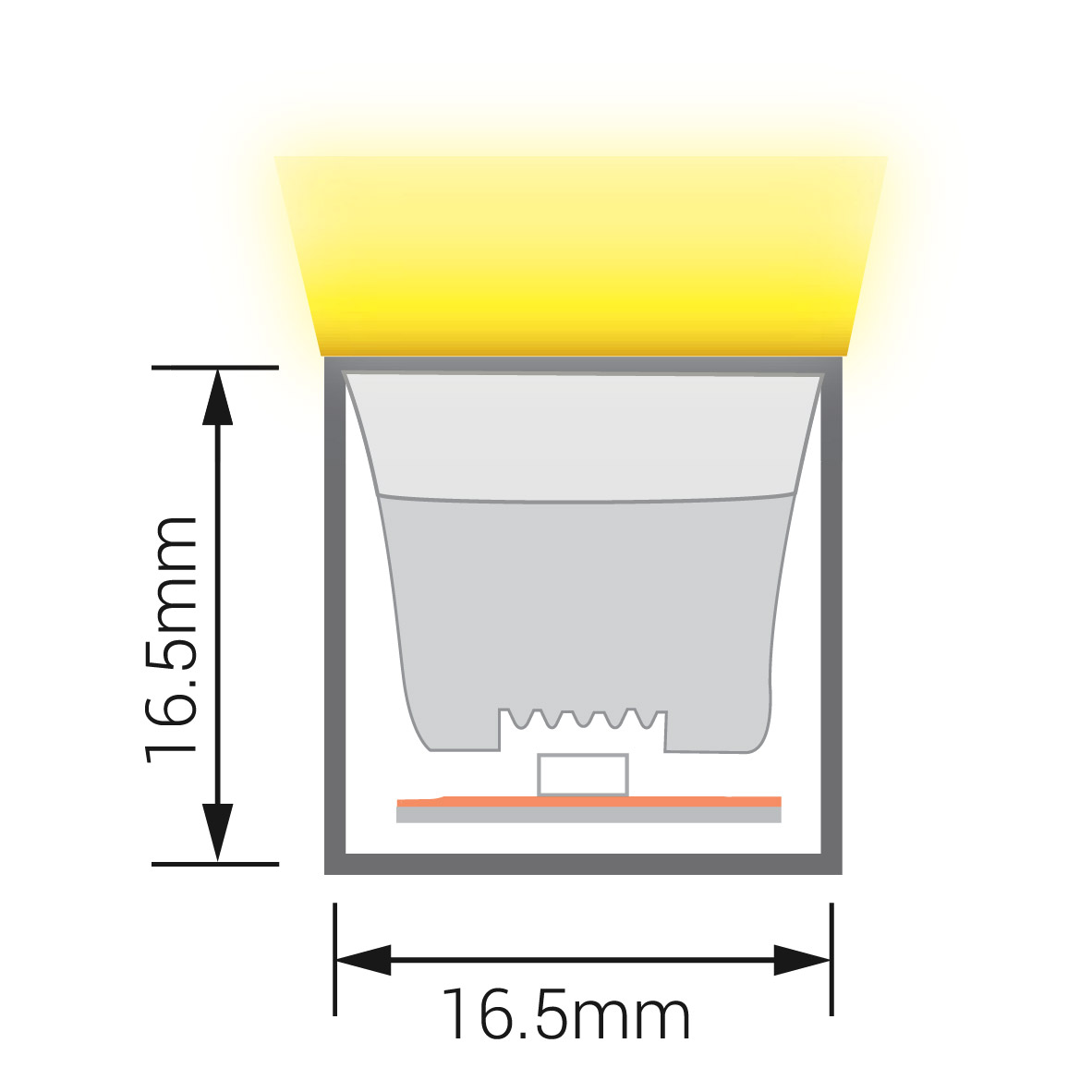

Dimensions

16.5 mm (W) x 16.5 mm (H) / 0.65in(W) x 0.65 in (H)

Body Finish

White

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

Switched 0/1-10 Driver DALI TRIAC DMX

Dimming

NON-DIMMABLE,TRIAC,0-10V,DALI

Ik Rating

IK08

Lamp Life

70,000 Hrs, 50,000 Hrs

Led Quantity

120 LEDs/m

Light Source

SMD LED 2835

Body Material

Silicone

Max Daisy Run

32.80ft / 10 m(Single Feed), 65.61 ft / 20 m (Double Feed)

Working Temp.

-40°C to +55°C

Binning Tolerance

One Bin

Cutting Increments

100 mm (3.94 in.)
