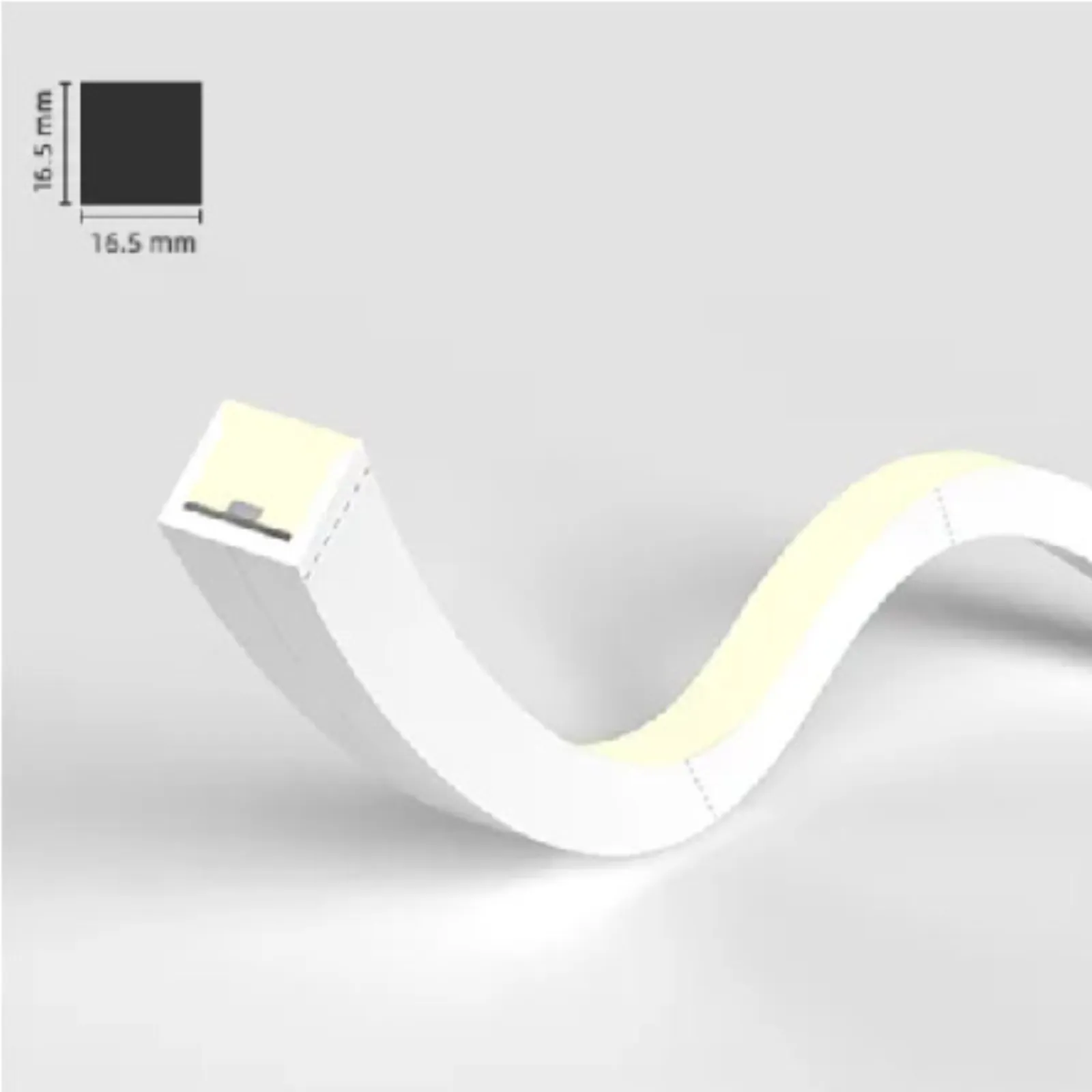

LFX-N-16-48V-3528-140

1175 Squires Beach Rd, Unit #2, Pickering, ON - L1W 3V3, Canada

Rated Power

9 W/m

Led Color

2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 6500K, Green, Blue, Pink

Cri

80, 90

Beam Angle

120°

Ip Rating

IP68

Mounting

Surface Mount / Recessed

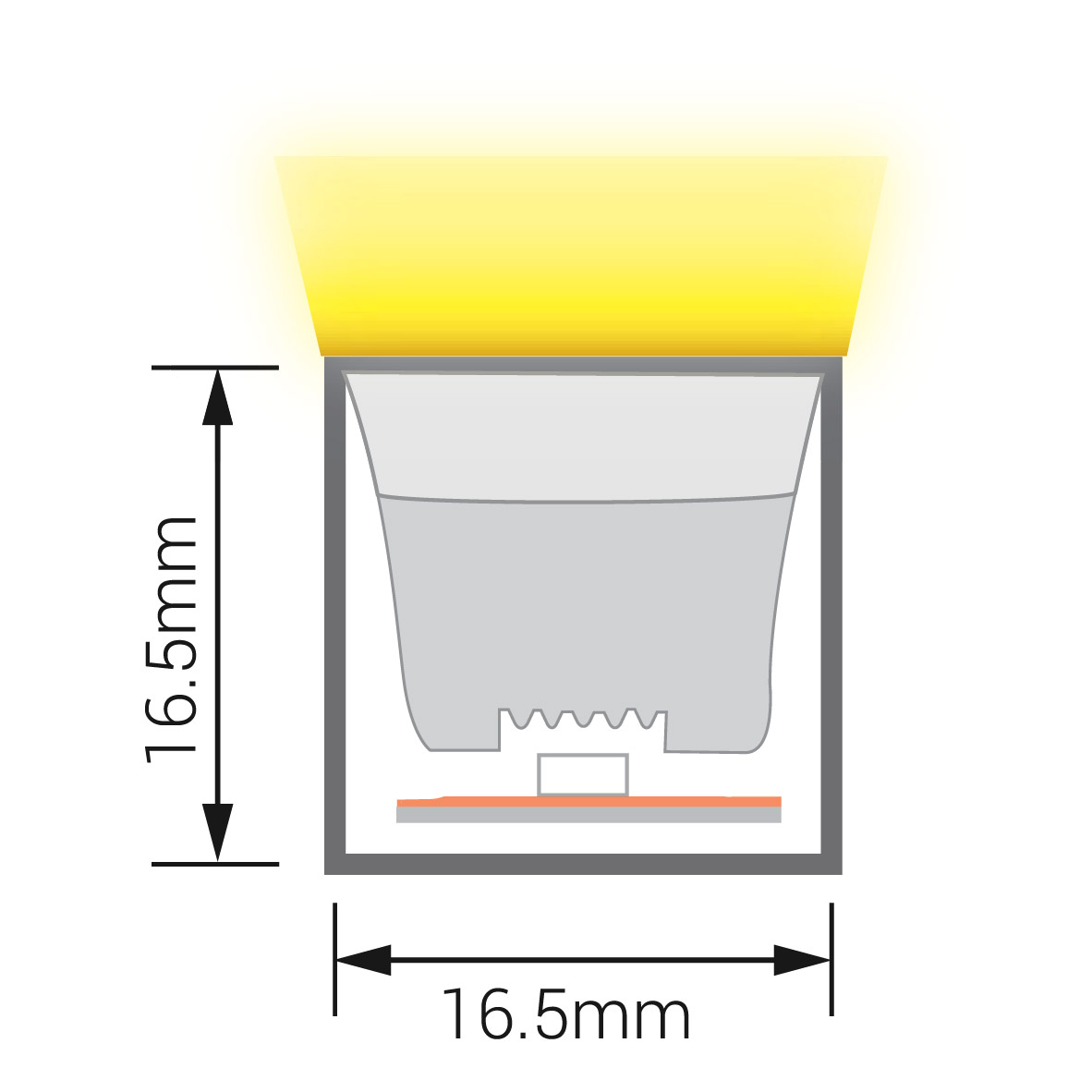

Dimensions

16.5 mm (W) x 16.5 mm (H) / 0.65in(W) x 0.65 in (H)

Body Finish

White

Supply Voltage

48V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

Switched 0/1-10 Driver DALI TRIAC DMX

Dimming

NON-DIMMABLE,TRIAC,0-10V,DALI

Ik Rating

IK08

Lamp Life

70,000 Hrs, 50,000 Hrs

Led Quantity

140 LEDs/m

Light Source

SMD LED 3528

Body Material

Silicone

Max Daisy Run

65.61ft / 20 m(Single Feed), 131.23 ft / 40 m (Double Feed)

Working Temp.

-40°C to +55°C

Cutting Increments

100 mm (3.94 in.)
